Description
LCB / LMU – Light Control Board – Light Management Board
All LCB / LMU are a safe, easy and simple way to manage all your light and fans in your grow room. All LCB / LMU units are built using a hard metal enclosure with Australian approved parts and come in a variety of sizes and options. All LCB / LMU units are hard wired and will require a qualified electrician to install.
However, there is a 4 Outlet and a 6 Outlet 2 x Lead LCB/ LMU that is can be plugged straight into a power point.
Size And specs:
4 Outlet – 3000w, 15A Max (Plug and Play)
To control up to 3000 watts of HID Ballasts on 4 sockets with one timer (real time clock for ease of setting)
- Made in Australia
- Australian Safety Approved Parts
- 10A Lead & 2m Plug
- 15A Main Circuit Breaker
- Led indicator for socket on/off indication
- High quality reliable timer
6 Outlet – 7200w, 40A Max
To control up to 7200 watts of HID Ballasts on 6 sockets with one timer (real time clock for ease of setting)
- Made in Australia
- Australian Safety Approved Parts
- To control up to 3000 watts of HID Ballasts on 4 sockets with one timer (real time clock for ease of setting)
- Made in Australia
- Australian Safety Approved Parts
- 10A Lead & 2m Plug
- 15A Main Circuit Breaker
- Led indicator for socket on/off indication
- High quality reliable timer
- 40A Main Circuit Breaker & 16A Sub Breakers
- Separate timer lead (for reset control)
- High quality reliable timer
6 Outlet, 2 Live – 8000w, 50A Max
To control up to 8000 watts of HID Ballasts on 6 sockets with one timer (real time clock for ease of setting) and ability to connect fans etc to 2 live sockets
- Made in Australia
- Australian Safety Approved Parts
- 2 x 6 mm Hard Wired Cable
- 40A Main Circuit Breaker & 16A Sub Breakers
- 10A Breaker for two live sockets
- Separate timer lead (for reset control)
- High quality reliable timer
6 Outlet, 2 10A Lead – 6000w, 40A Max (Plug and Play)
To control up to 6000 watts of HID Ballasts on 6 sockets with one timer (real time clock for ease of setting) and ability to connect fans etc to live sockets
- Made in Australia
- Australian Safety Approved Parts
- 2 x 6sqmm Hard Wired Cable
- 2 x 15A Main Circuit Breaker
- Separate timer lead (for reset control)
- High quality reliable timer

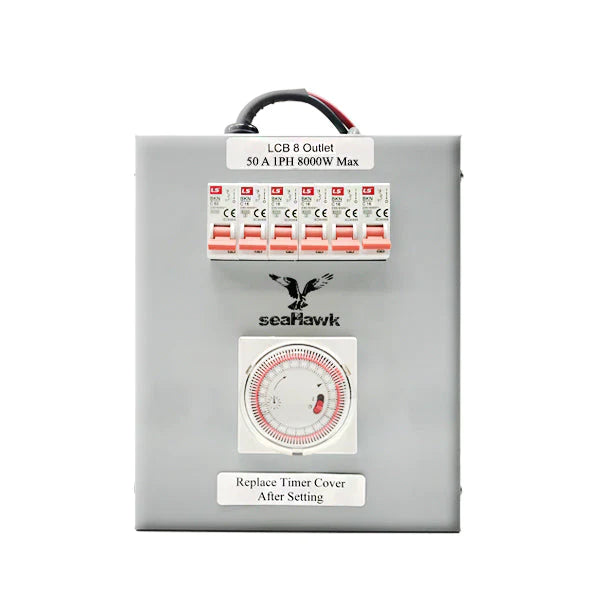

8 Outlet – 8000w, 50A Max
To control up to 8000 watts of HID Ballasts on 8 sockets with one timer (real time clock for ease of setting)
- Made in Australia
- Australian Safety Approved Parts
- 2 x 10 mm Hard Wired Cable
- 50A Main Circuit Breaker & 16A Sub Breakers
- Separate timer lead (for reset control)
- High quality reliable timer
8 Outlet, 2L – 8000w, 63A Max
To control up to 8000 watts of HID Ballasts on 8 sockets with one timer (real time clock for ease of setting) and ability to connect fans etc to 2 live sockets
- Made in Australia
- Australian Safety Approved Parts
- 2 x 10 mm Hard Wired Cable
- 63A Main Circuit Breaker & 16A Sub Breakers
- 16A Breaker for two live sockets
- Separate timer lead (for reset control)
- High quality reliable timer
12 Outlet, 4L, 80A Max
To control HID Ballasts on 12 sockets with one timer (real time clock for ease of setting) and ability to connect fans etc to 4 live sockets
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 80A Main Circuit Breaker & 16A Sub Breakers
- 16A Breaker for four live sockets
- Separate timer lead (for reset control)
- High quality reliable timer
12 Outlet, 4L, 2 Timers, 80A Max
To control up to 2 lots of HID Ballasts on 6 sockets, total 12 Hid Lights (6 x HID on one timer and 6 x HID Lights on the second timer) and ability to connect fans etc to 4 live sockets
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 80A Main Circuit Breaker & 16A Sub Breakers
- 16A Breaker for four live sockets
- Two timers for a day or night time setting
- Separate timer lead (for reset control)
- High quality reliable timer

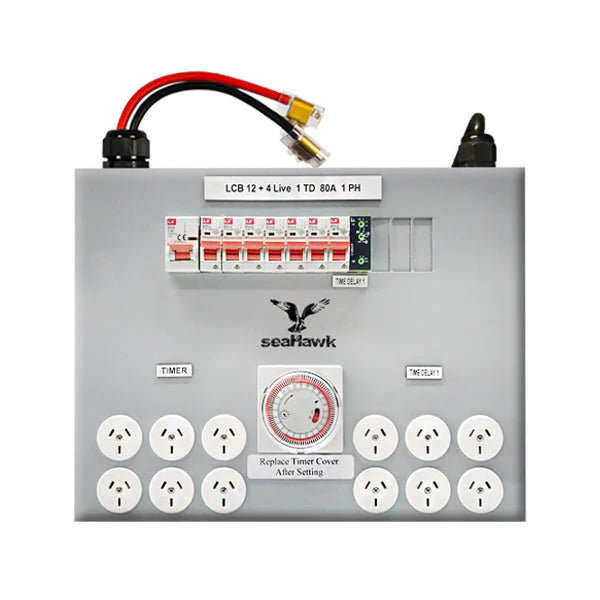

12 Outlet, 4L, 1TD, 80A Max
To control HID Ballasts on 12 sockets with one timer. Timer starts first set of six sockets, then a three-minute time delay, followed by the second set of six sockets. There are 4 Live sockets for fans, pumps etc.
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 80A Main Circuit Breaker & 16A Sub Breakers
- 16A Breaker for four live sockets
- Time Delay between 1st and 2nd set of sockets
- Separate timer lead (for reset control)
- High quality reliable timer
- Mounting hooks provided
16 Outlet, 4L, 1TD, 80A Max
To control HID Ballasts on 16 sockets with one timer. Timer starts first set of eight sockets, then a three-minute time delay, followed by the second set of eight sockets. There are 4 Live sockets for fans, pumps etc.
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 80A Main Circuit Breaker & 25A Sub Breakers
- 16A Breaker for four live sockets
- Time Delay between 1st and 2nd set of sockets
- Separate timer lead (for reset control)
- High quality reliable timer
- Mounting hooks provided
24 Outlet, 12on / 12off or 24 on, 4L, 100A Max
To control HID Ballasts on two sets of 12 sockets with one timer (12 on and 12 off). There are 4 Live sockets for fans, pumps etc. or Control all 24 sockets with one timer
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 100A Main Circuit Breaker & 25A Sub Breakers
- 16A Breaker for four live sockets
- Separate timer lead (for reset control)
- Two sets of 12 sockets
- High quality reliable timer
- Mounting hooks provided

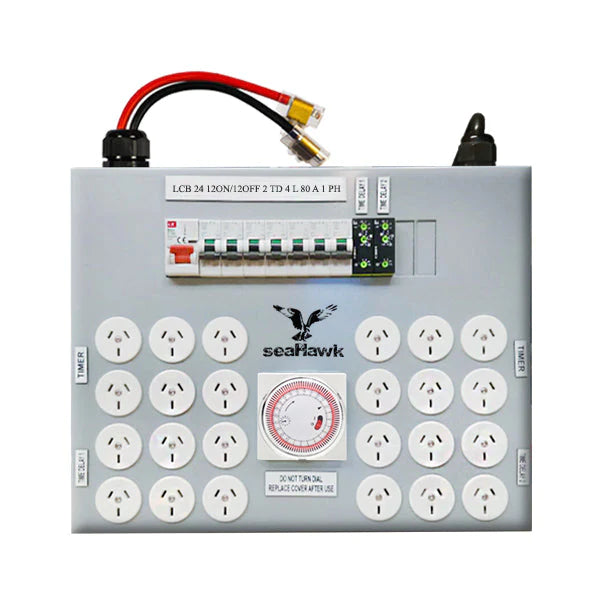

24 Outlet, 12on / 12off or 24 on, 2TD, 4L, 100A Max
To control HID Ballasts on two sets of 12 sockets with one timer (12 on and 12 off). Timer starts first set of twelve sockets, then a three-minute time delay, followed by the second set of twelve sockets. There are 4 Live sockets for fans, pumps etc. or Control all 24 sockets with one timer
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 100A Main Circuit Breaker & 25A Sub Breakers
- 16A Breaker for four live sockets
- Separate timer lead (for reset control)
- Two sets of 12 sockets
- 1 x 12 TD for every 12 sockets
- High quality reliable timer
- Mounting hooks provided
48 Outlet, 24on / 24off, 6L, 100A Max
To control HID Ballasts on two sets of 24 sockets with one timer (24 on and 24 off). There are 6 Live sockets for fans, pumps etc.
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 100A Main Circuit Breaker & 25A Sub Breakers
- 16A Breaker for six live sockets
- Separate timer lead (for reset control)
- Two sets of 24 sockets
- High quality reliable timer
- Mounting hooks provided
48 Outlet, 24on / 24off, 2 TD, 6L, 100A Max
To control HID Ballasts on two sets of 24 sockets with one timer (24 on and 24 off). Timer starts first set of twelve sockets, then a three-minute time delay, followed by the second set of twelve sockets. There are 6 Live sockets for fans, pumps etc.
- Made in Australia
- Australian Safety Approved Parts
- 2 x 16 mm Hard Wired Cable
- 100A Main Circuit Breaker & 25A Sub Breakers
- 16A Breaker for six live sockets
- Separate timer lead (for reset control)
- Two sets of 24 sockets
- 1 x 12 TD for every 12 sockets
- High quality reliable timer
- Mounting hooks provided
