Description
AC Infinity CLOUDRAY S6 – Smart Clip Fan for Grow Tents

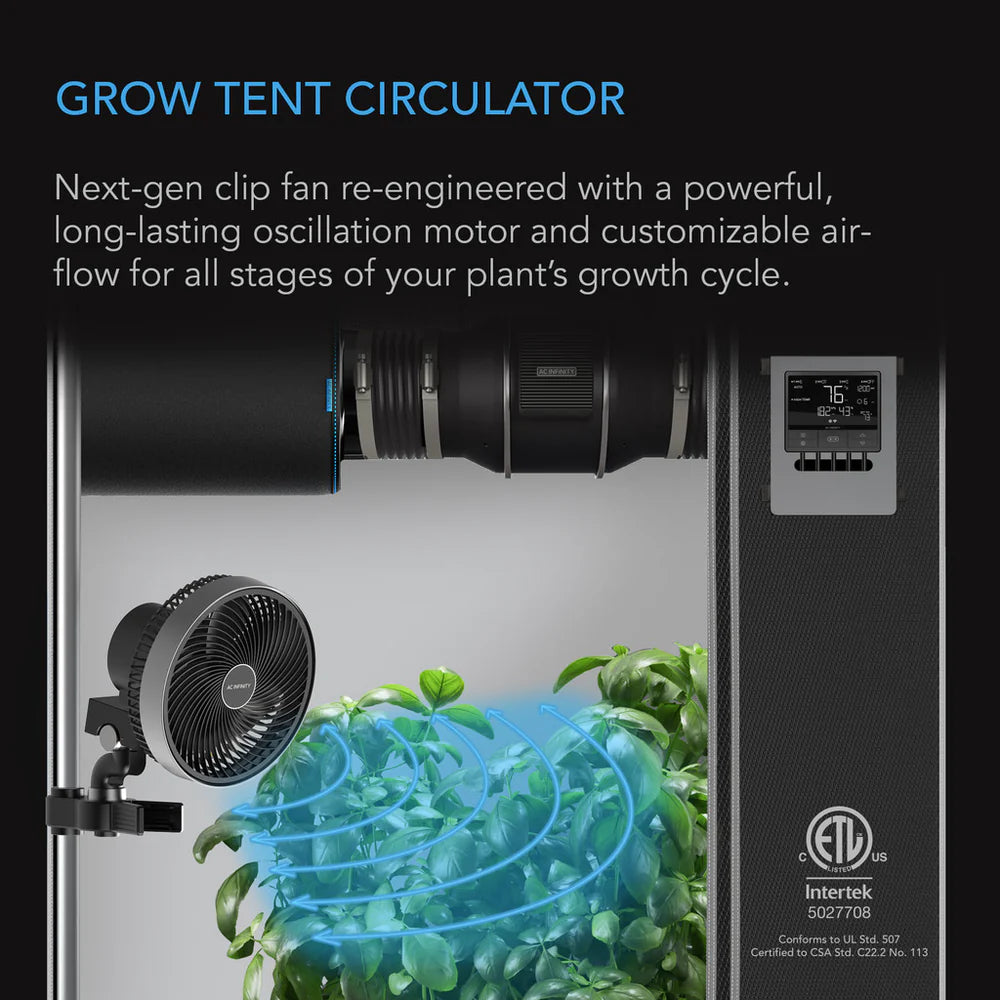

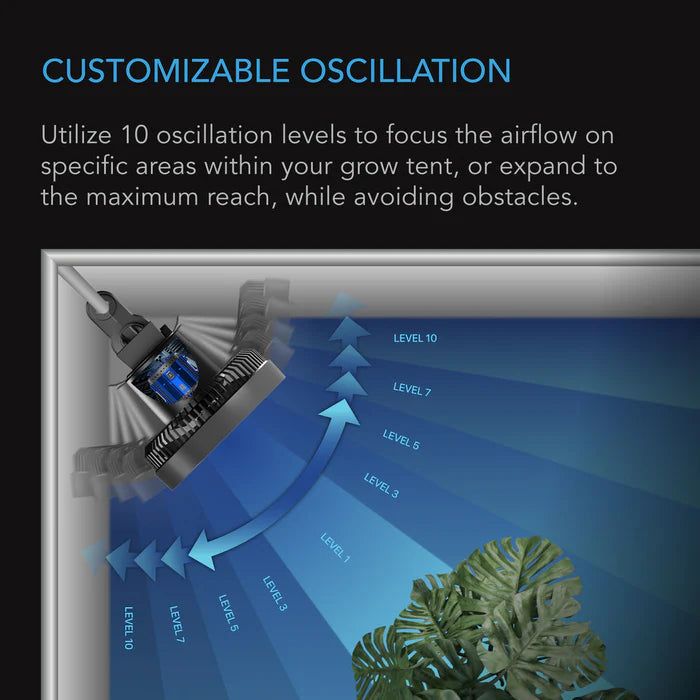

The CLOUDRAY S6 is a next-gen clip fan, completely redesigned to deliver precise airflow control for every stage of plant growth. Featuring 10 fan speeds, 10 dynamic wind modes, and 10 oscillation levels, it creates a fully customizable environment—from gentle breezes for seedlings to powerful circulation during flowering.
Equipped with a robust brushless EC motor, carbon steel gears, and dual ball bearings, this fan offers long-lasting, ultra-quiet performance (just 31 dBA). It rotates 90° with a 55° tilt angle and is built with an IP44 rating to thrive in high-humidity grow spaces.

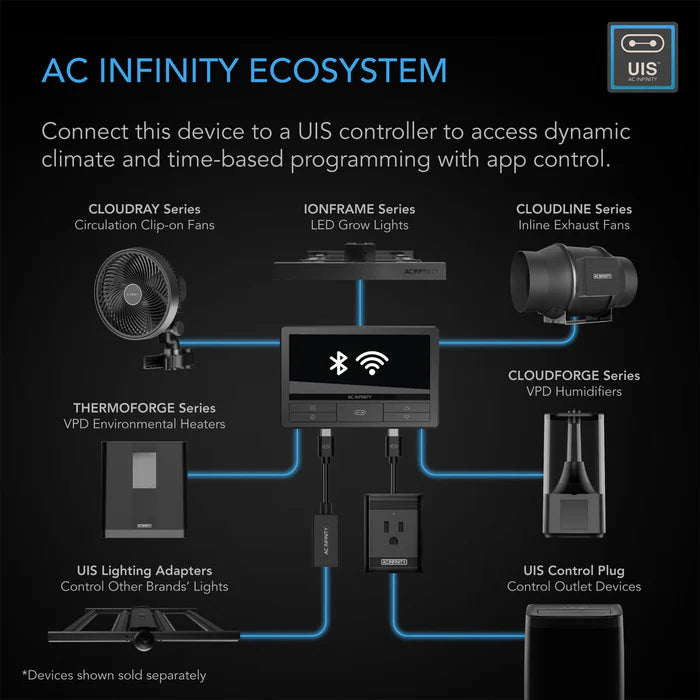

Part of the UIS™ ecosystem, the CLOUDRAY S6 connects via WiFi to the AC Infinity App, giving you wireless control, climate-based triggers, timers, and smart automation.
Key Specs:
Impeller Size: 6.5”
Max Airflow: 325 CFM
Noise Level: 31 dBA
Power: 12W
Oscillation Range: 90° | Tilt: 55°
Waterproof Rating: IP44
Lifespan: 67,000 hours
Cable Length: 2.43m | Australian Plug
Mountable: Horizontal or Vertical
Built for growers who demand flexibility, durability, and intelligent airflow control.
| Manufacturer | AC Infinity Inc. |
| Product Name | CLOUDRAY S6 |
| Product Model | AC-CCS6 |
| UPC Code | 819137022423 |
| Product and Mounting Dimensions - Fan Unit | |
| Impeller Size | 6.5" |
| Total Dimensions | 8.74 x 10.47 in. (22.2 x 26.6 cm) |
| Cord Length to Plug | 96 in. (8 feet) / 243cm |
| Product Performance and Technical Specs | |
| Maximum Airflow | 325 CFM |
| Total Noise | 31 dBA |
| Static Pressure | 25 Pa |
| Operating Voltage | 100-240V AC |
| Power | 12 W |
| Current | 0.14 A |
| Power Connector Type | Australian power plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP 44 |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Oscillation | Automatic Oscillation |
| Fan Bearings | Dual Ball Bearing |
| Mounting Positions | Horizontal or Vertical |
| Life Expectancy | 67,000 Hours |
| ETL Cert. (Whole Product) |
 PDF
|
| Product Manual | |
| Product Manual |
PDF
|
