AC Infinity T6 Air Filtration Kit 150mm – Smart Fan, Carbon Filter & Controller

Quick Answer

The AC Infinity T6 Air Filtration Kit 150mm is a coordinated grow-space exhaust and carbon-filtration package. The configuration advertised by TG Hydroponics includes a 402 CFM CLOUDLINE T6 inline fan, Controller 69 Pro with environmental probe, 150mm carbon filter rated to 410 CFM, 7.6m of four-layer ducting, clamps and hanging hardware.

Product Description

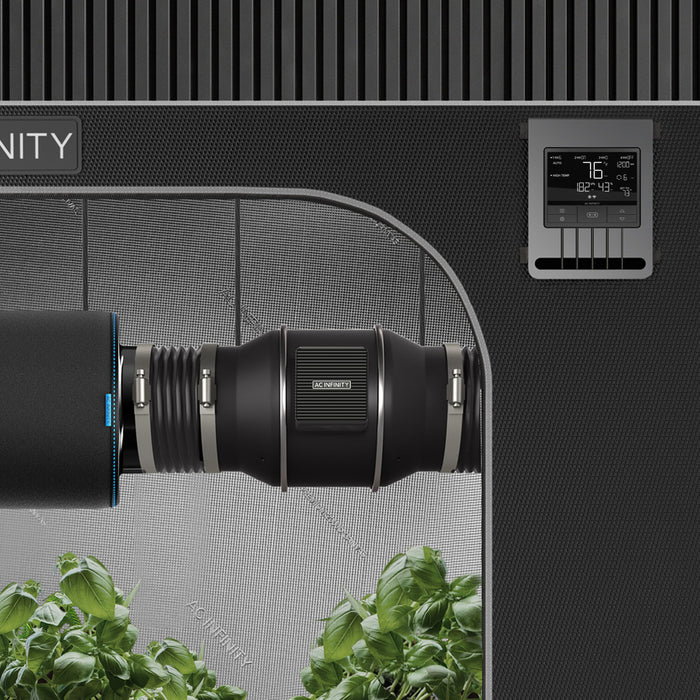

Create an app-connected 150mm ventilation system with the AC Infinity T6 Air Filtration Kit.

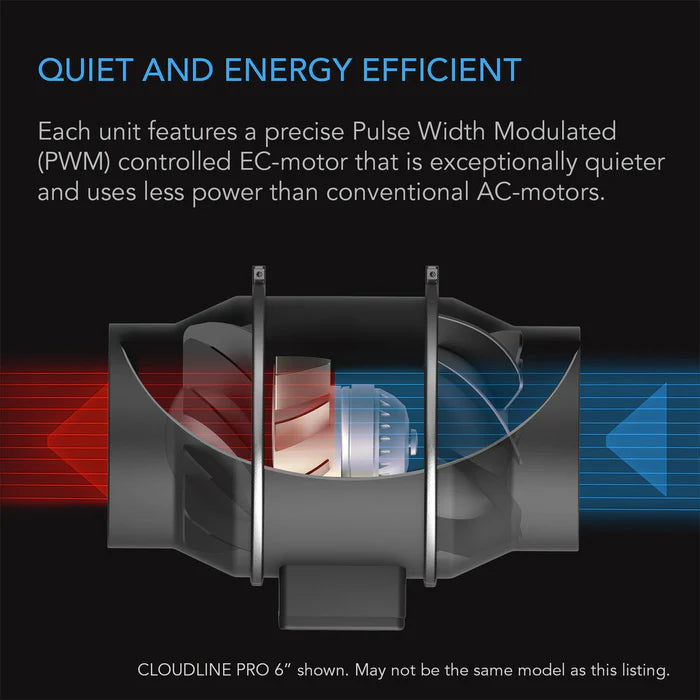

The CLOUDLINE T6 combines a mixed-flow design with a PWM-controlled EC motor to move air through larger indoor garden and grow-tent installations. TG Hydroponics lists the fan at 402 CFM and 32 dBA, providing adjustable exhaust airflow without relying on a simple on/off switch.

The included carbon filter uses Australian RC412 activated charcoal to help adsorb airborne odours as stale air leaves the growing area. A reversible aluminium flange, steel mesh body and matching 150mm connections support flexible installation.

The listed Controller 69 Pro monitors temperature, humidity and VPD through its probe. Compatible triggers, timers and schedules can adjust the connected fan, while Wi-Fi and Bluetooth provide access to supported controls, alerts and environmental records through the AC Infinity app.

Performance varies with room volume, air-intake capacity, duct length, bends, filter condition and environmental conditions. This equipment supports ventilation and odour management but does not guarantee complete odour removal or a particular growing result.

Key Features

• Complete 150mm inline ventilation and carbon-filtration package

• CLOUDLINE T6 fan rated at 402 CFM

• TG Hydroponics listed noise level of 32 dBA

• Mixed-flow fan with PWM-controlled EC motor

• Controller 69 Pro with Wi-Fi and Bluetooth

• Temperature, humidity and VPD triggers

• Programmable timers and schedules

• Compatible app controls, alerts and environmental records

• Carbon filter rated for airflow up to 410 CFM

• Australian RC412 activated charcoal

• Reversible aluminium filter flange and steel mesh body

• 7.6m of four-layer flexible ducting

• IP44-rated fan enclosure

• Dual-ball-bearing design with a listed 67,000-hour service life

Available Size / Variant

T6 – 150mm / 6-inch

TG Hydroponics lists one option on this page: the 150mm T6 Pro kit with Controller 69 Pro.

Confirm that the 150mm connections suit the grow-space exhaust ports and calculate the required airflow for the room before ordering. Actual airflow falls when filters, long duct runs, tight bends or restrictive vents are added.

Specifications

Inline Fan

• Series: CLOUDLINE T6

• Duct size: 150mm / 6 inch

• Maximum airflow: 402 CFM

• Listed noise level on TG Hydroponics: 32 dBA

• Maximum speed: 2,800 RPM

• Maximum static pressure: 394 Pa

• Motor type: PWM-controlled EC motor

• Bearing type: Dual ball bearing

• Fan dimensions: approximately 21.2 × 32.0 × 20.0cm

• Mounting orientation: Horizontal or vertical

• Ingress protection: IP44

• Listed bearing life: 67,000 hours

Carbon Filter

• Duct opening: 150mm / 6 inch

• Maximum airflow: 410 CFM

• Dimensions: approximately 40.5 × 22.7cm

• Carbon type: Australian virgin RC412

• Carbon grade listed by AC Infinity: 1200+ IAV

• TG Hydroponics listed carbon-bed thickness: 38mm

• Construction: Galvanised steel mesh with reversible aluminium flange

Flexible Ducting

• Diameter: 150mm / 6 inch

• Length: 7.6m / 25ft

• Construction: Four-layer flexible duct with aluminium-foil interior, outer thermoplastic layer and spiral steel-wire support

Controller

• TG Hydroponics listed configuration: Controller 69 Pro

• Connectivity: Wi-Fi and Bluetooth

• Sensor: Environmental probe

• Supported triggers: Temperature, humidity and VPD

• Programming: Timers and schedules

• App functions: Compatible remote controls, alerts and environmental records

Configuration Note

The current US AC Infinity page for model AC-FKT6 displays a newer Controller AI+ bundle and lists some revised specifications, including 34 dBA fan noise and a 60mm carbon bed. This product description follows the Controller 69 Pro, 32 dBA and 38mm configuration specifically advertised by TG Hydroponics. Supplied contents should match the retailer’s order confirmation.

The US manufacturer page lists 100–240V input but shows a US Type-A plug. TG Hydroponics does not state the supplied plug type or electrical input on its product page, so these details should be confirmed with the retailer when required.

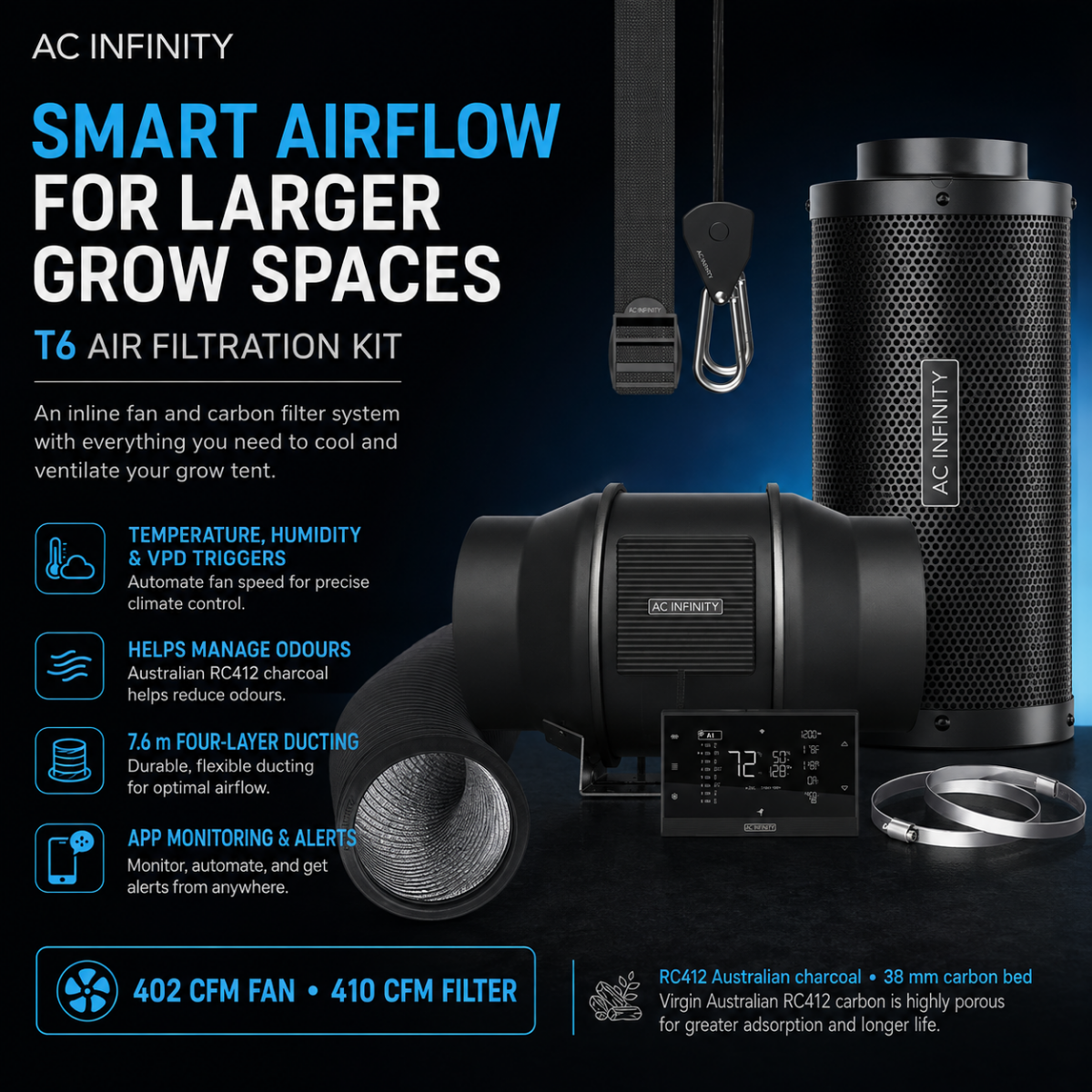

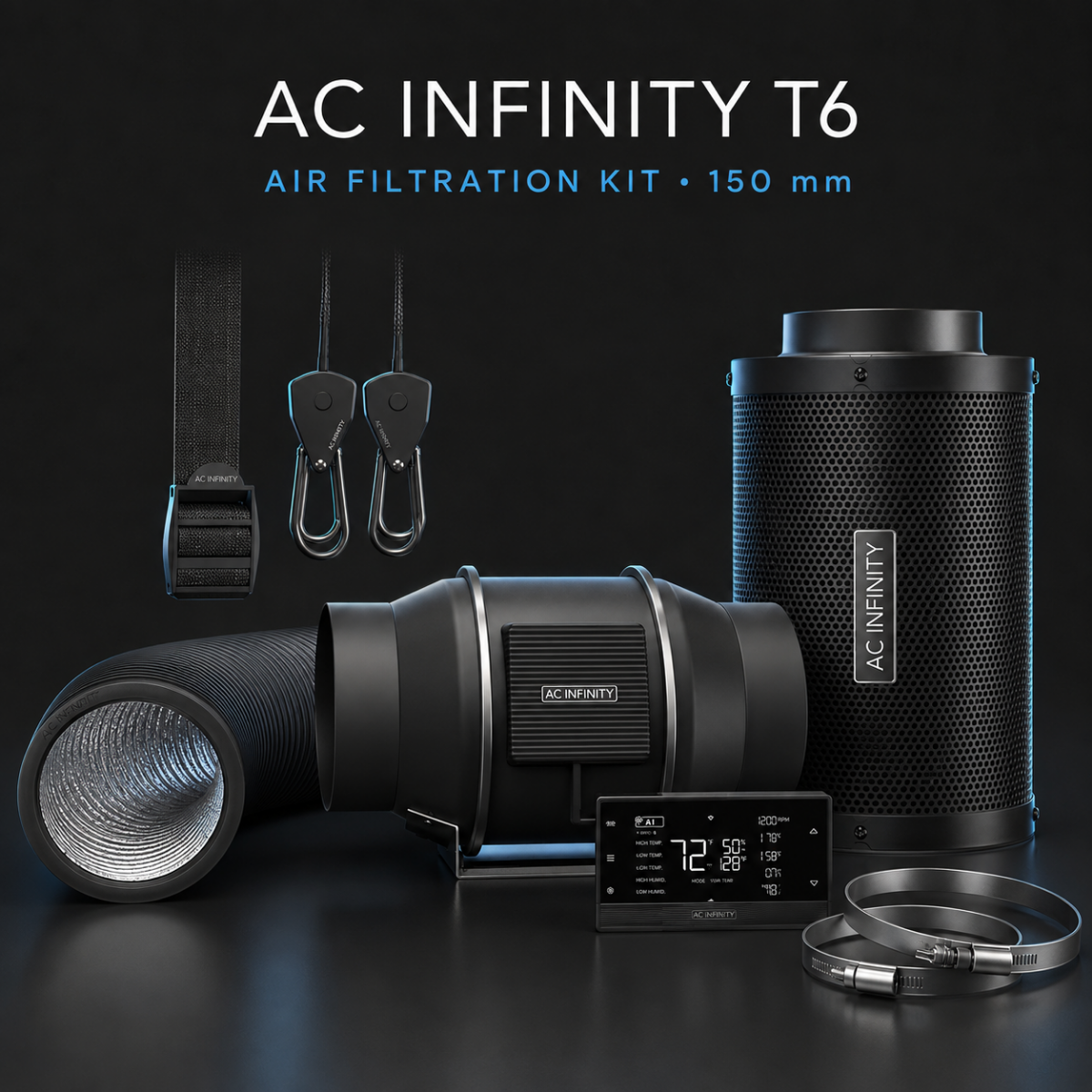

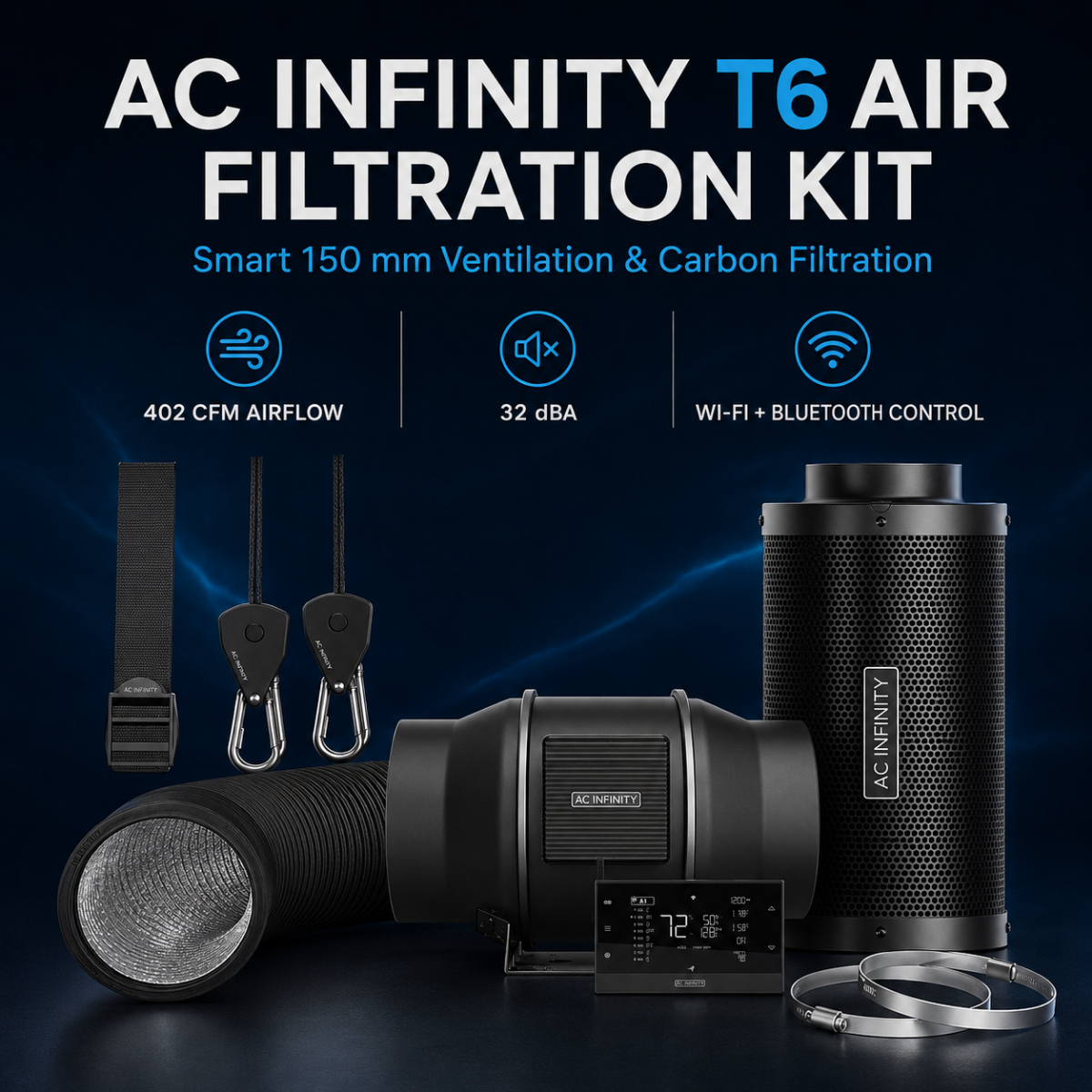

Package Contents

• 1 × CLOUDLINE T6 150mm inline fan

• 1 × Controller 69 Pro

• 1 × Environmental probe

• 1 × 150mm carbon filter

• 1 × 7.6m four-layer flexible duct

• 2 × Duct clamps

• 2 × Rope ratchets

• Hanging straps

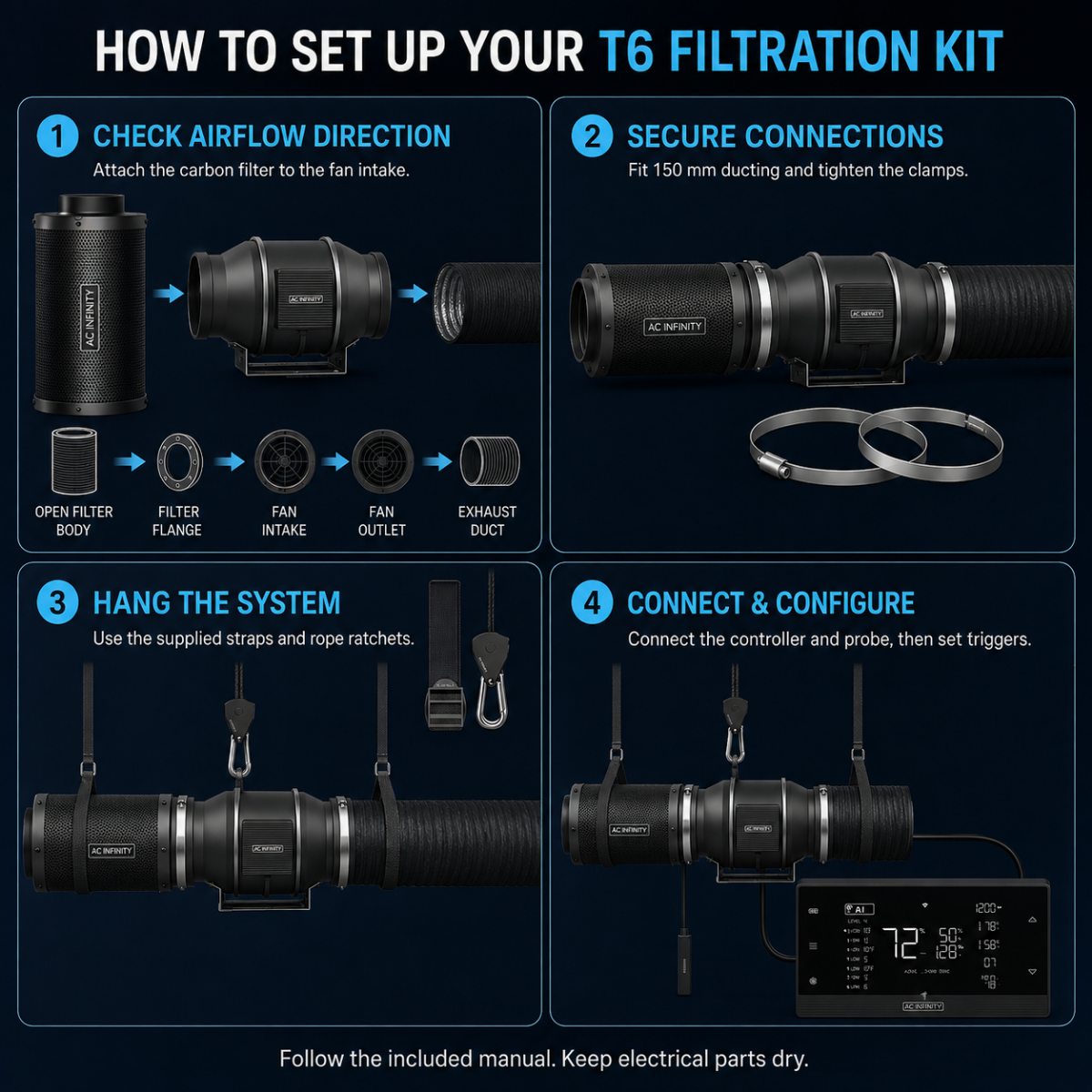

Directions for Use

1. Plan the exhaust route and confirm that the tent or room has adequate passive or powered air intake.

2. Locate the airflow arrow on the fan housing. In a common exhaust configuration, air should pass from the grow space through the carbon filter, into the fan and then through the exhaust duct.

3. Connect the carbon filter flange directly to the fan intake. Attach the 150mm exhaust duct to the fan outlet.

4. Seat each connection fully and tighten the supplied clamps without crushing the flange or fan housing.

5. Suspend the fan and filter from a load-bearing frame using the supplied straps and rope ratchets. Confirm that the complete assembly is stable.

6. Mount the controller where it can be viewed and kept dry.

7. Connect the fan and probe to the controller according to the included AC Infinity instructions.

8. Position the probe in the monitored zone, away from direct fan airflow, water spray and radiant heat that could distort its readings.

9. Power on the system, pair the controller with the AC Infinity app if required, and configure suitable fan levels, environmental triggers, timers or schedules.

10. Check the airflow direction and inspect every joint for leakage, vibration or excessive restriction.

Always follow the supplied manual and applicable electrical and installation requirements. Disconnect power before installation or servicing, and keep electrical parts dry.

Care and Maintenance

• Disconnect power before cleaning, moving or inspecting the system.

• Keep the fan housing, controller, probe and electrical connections dry.

• Inspect clamps, ducting, straps and rope ratchets regularly.

• Remove dust from accessible external surfaces and ventilation openings with a dry, soft cloth.

• Clean or replace the pre-filter cloth when supplied, following the manufacturer’s instructions.

• Service or replace the carbon filter when adsorption declines or airflow becomes restricted. Service life varies with use and conditions.

• Avoid compressed ducting and sharp bends that reduce airflow.

• Check the probe periodically for dust, incorrect placement or water exposure.

• Do not open the motor housing or wash the fan or controller with water.

Frequently Asked Questions

What comes with the AC Infinity T6 kit?

TG Hydroponics lists the CLOUDLINE T6 fan, Controller 69 Pro and probe, 150mm carbon filter, 7.6m ducting, two clamps, two rope ratchets and hanging straps.

What airflow is the T6 fan rated for?

The fan is rated at up to 402 CFM. Installed airflow will be lower when air encounters resistance from the filter, ducting, bends or vents.

Does the carbon filter eliminate every odour?

No absolute result can be guaranteed. The RC412 activated-carbon filter is designed to help adsorb odours, but performance depends on correct sizing, installation, airflow, filter condition and environmental conditions.

Which environmental conditions can the controller monitor?

The TG Hydroponics listing states that the Controller 69 Pro supports temperature, humidity and VPD triggers through its probe.

Can the T6 be controlled from a phone?

The listed Controller 69 Pro supports Wi-Fi and Bluetooth connection to the AC Infinity app. Available remote features depend on setup, network access and the current app version.

Can the fan be mounted horizontally or vertically?

Yes. AC Infinity lists both horizontal and vertical fan mounting positions. The fan and filter must still be supported securely and installed according to the manual.

Is the fan waterproof?

No. IP44 is not a waterproof or submersible rating. Keep the fan, controller, probe connections and power components away from water.

Why does the current AC Infinity page show different specifications?

The manufacturer currently displays an updated AC-FKT6 package with Controller AI+. TG Hydroponics advertises the Controller 69 Pro version, so this description uses the retailer’s configuration and identifies the difference for transparency
