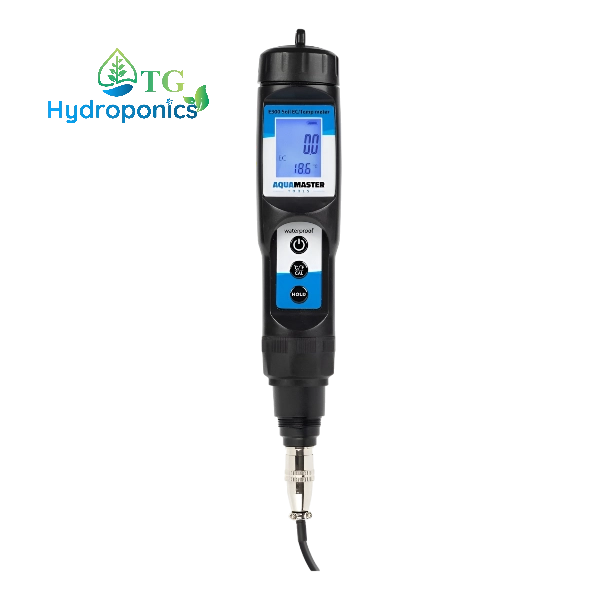

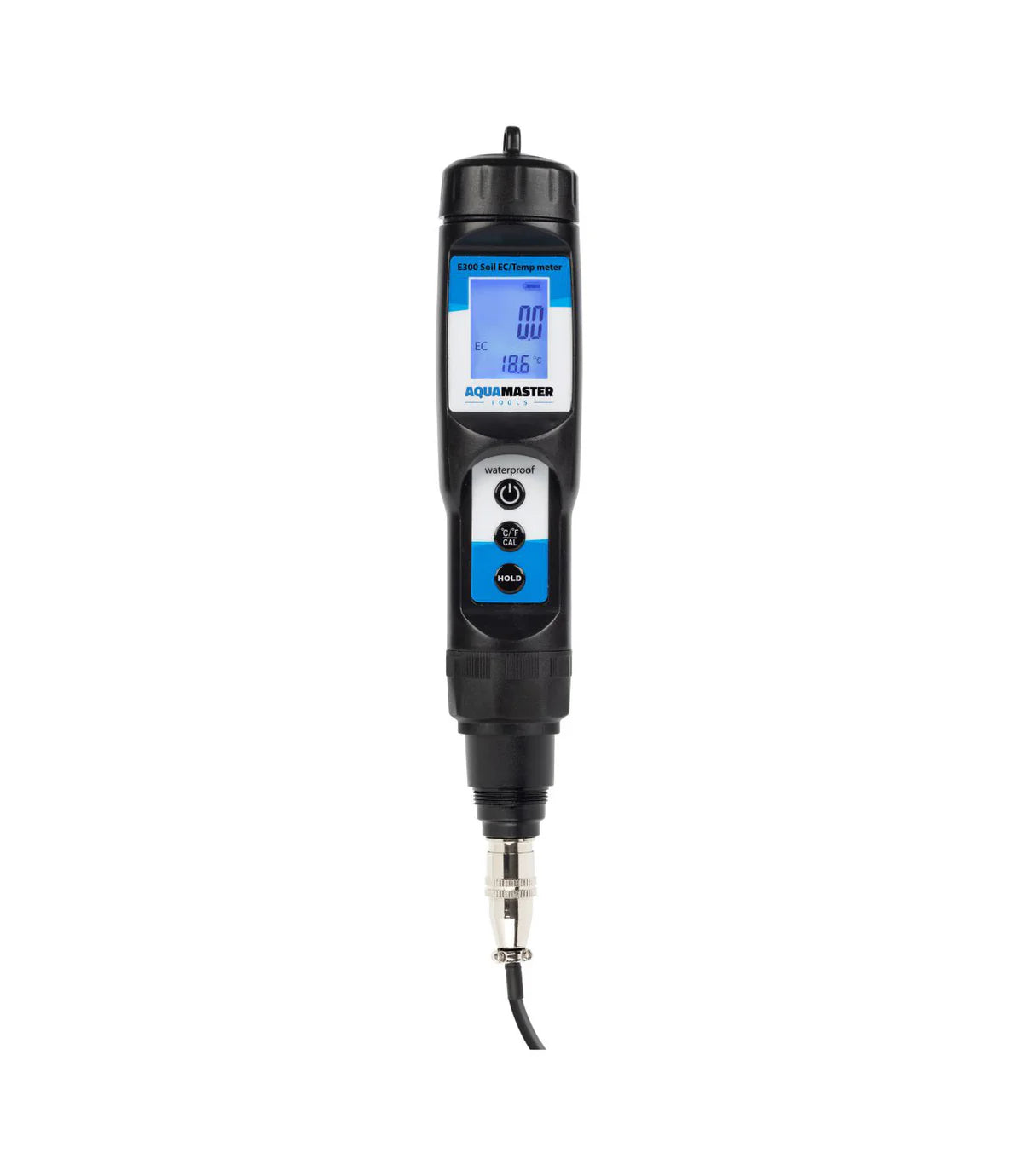

E300 Pro Substrate EC/Temp Meter
The Substrate EC/Temp Meter E300 Pro is the perfect digital hand-held meter for measuring the EC and temperature of any soft, moist substrate or liquid. It is suitable for various industries, such as agriculture, horticulture, and the food industry.
What sets this meter apart is the nearly unbreakable EC electrode. The user-friendly design ensures accuracy and comfort, featuring a rubber ergonomic back. The EC electrode is connected to a 90 cm cord for ease of use. It also has a 1-point automatic calibration function, simplifying the calibration process. The E300 Pro comes with batteries and a replaceable electrode, ensuring a long lifespan.
Operating Information
-
Connect: Attach the PIN connector of the electrode to the EC meter.
-
Clean: Rinse the electrode with running water and dry it with clean kitchen paper.
-
Power On: Press the On/Off button to turn on the meter.
-
Insert Electrode: Place the electrode in the soft, moist substrate (ensure the substrate is well damp, otherwise, the meter will not function properly) or liquid to be measured.
-
Measure: Wait for the value to stabilize. The measurement is now complete.
-
Hold Measurement: Press the HOLD button to save the measurement. Press the HOLD button again for subsequent use.
-
After Use: Rinse the electrode with clean water to remove any residue.
-
Power Off: Press the On/Off button to turn off the meter.
Package Contents:
- 1 x Digital Substrate EC/Temp Meter E300 Pro
- 1 x User Manual (NL – EN – DE)
- Calibrated and ready for use
- Batteries included
Specifications:
-
Range:
- EC: 0.0 ~ 19.9 mS/cm
- Temp.: 0°C ~ 50°C (32°F ~ 122°F)
-
Resolution:
- EC: 0.1 mS/cm
- Temp.: 0.1ºC (1.0ºF)
-
Accuracy:
- EC: ±2% F.S. (0.0 ~ 4 mS/cm)
- Temp.: ±0.5°C (32°F)
-
Temperature Compensation: 0°C - 50°C (32°F - 122°F)
-
Calibration: EC: 1-point auto 1.4 EC
-
Features: Battery indicator, automatic temperature compensation
-
Power Supply: 3 x 1.5 Volt AG-13 Button Cell Batteries (included)
-
Auto Power-Off: After 8 minutes
-
Calibration Indicator: Indicates correct calibration
-
Waterproof: IP65 (electrodes are IP67 waterproof)
-
Dimensions: 220 x 40 x 40 mm
-
Weight: 171 grams
Video Guides:
- E300 Pro: How to Use
- E300 Pro: Calibration
- E300 Pro: Replacing the Electrode
- Troubleshooting
For more detailed information, refer to the Aqua Master Tools E300 Pro User Manual.
