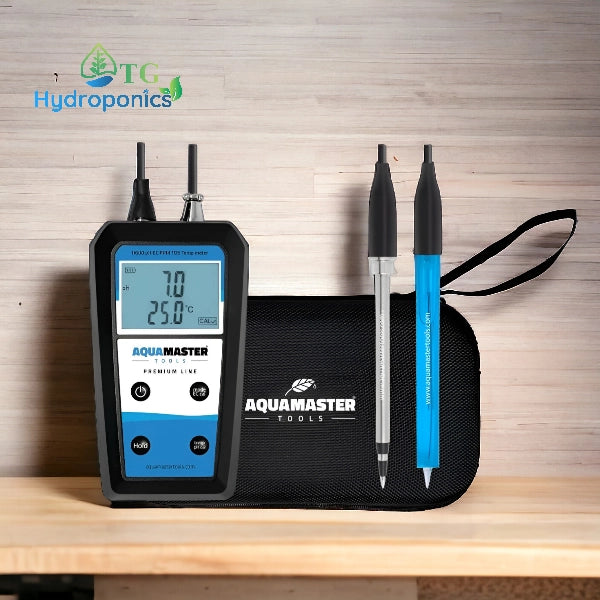

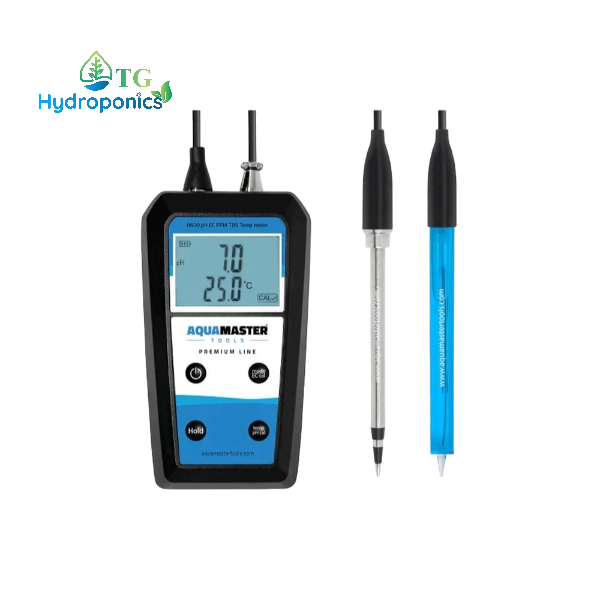

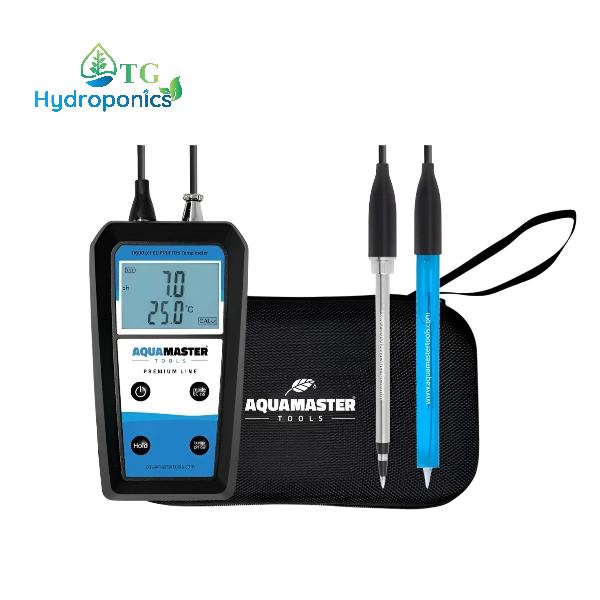

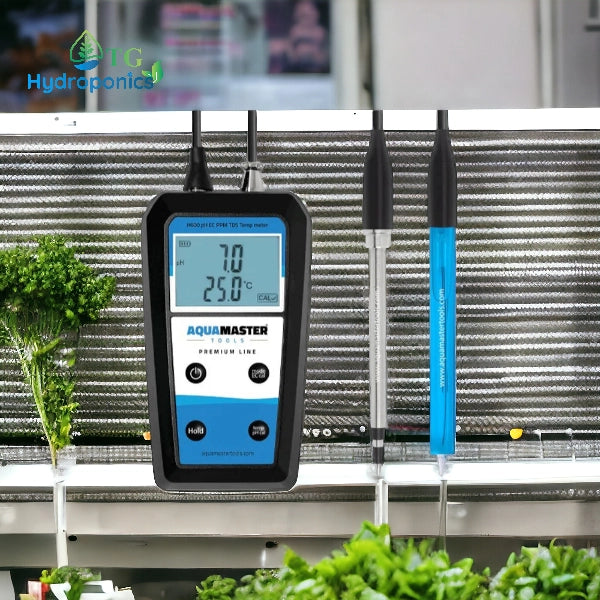

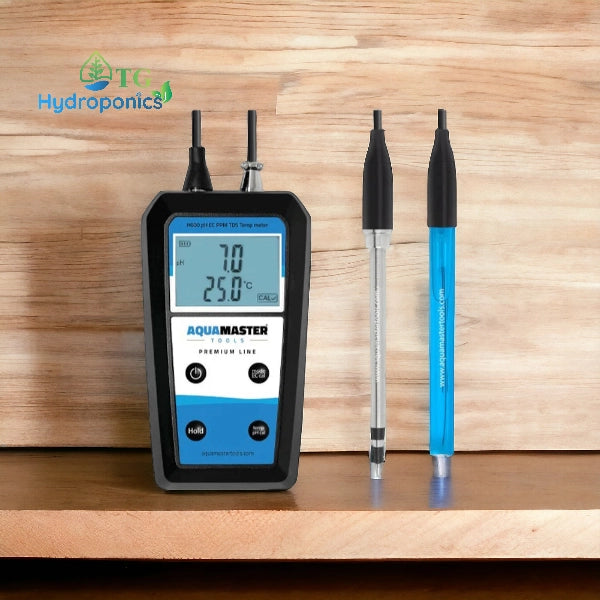

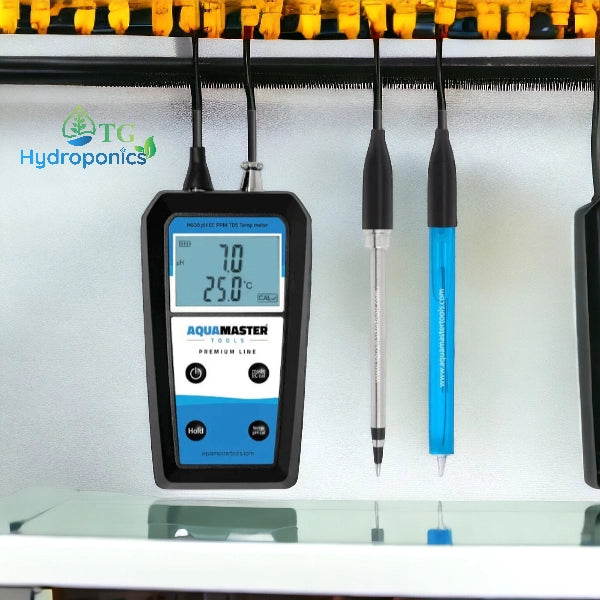

H600 Pro Handheld Substrate Meter pH, EC, PPM, TDS, Temp.
The Handheld Substrate Meter H600 Pro is the ultimate tool for precise measurement of pH, EC, PPM, TDS, and temperature in soft, moist substrates or liquids. Its user-friendly interface ensures effortless parameter switching, catering to both seasoned professionals and newcomers alike.
One of its standout features is the built-in calibration indicator, which serves as a proactive reminder for recalibration, ensuring consistent measurement accuracy. The meter is compatible with standard Aqua Master Tools pH and EC electrodes, adding to its versatility and reliability.

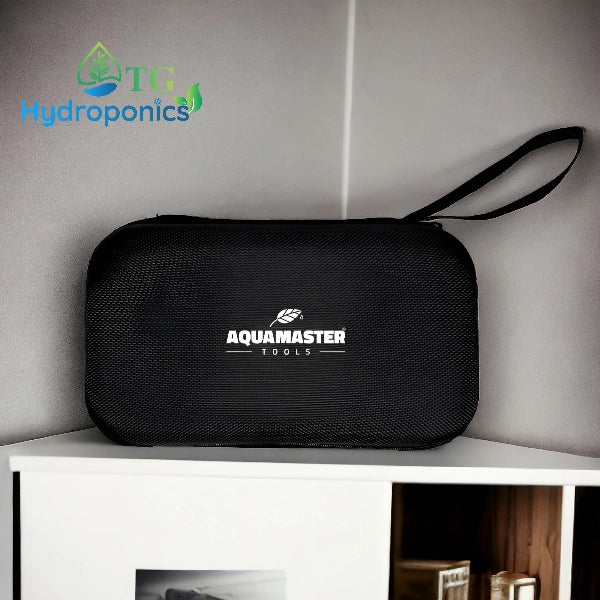

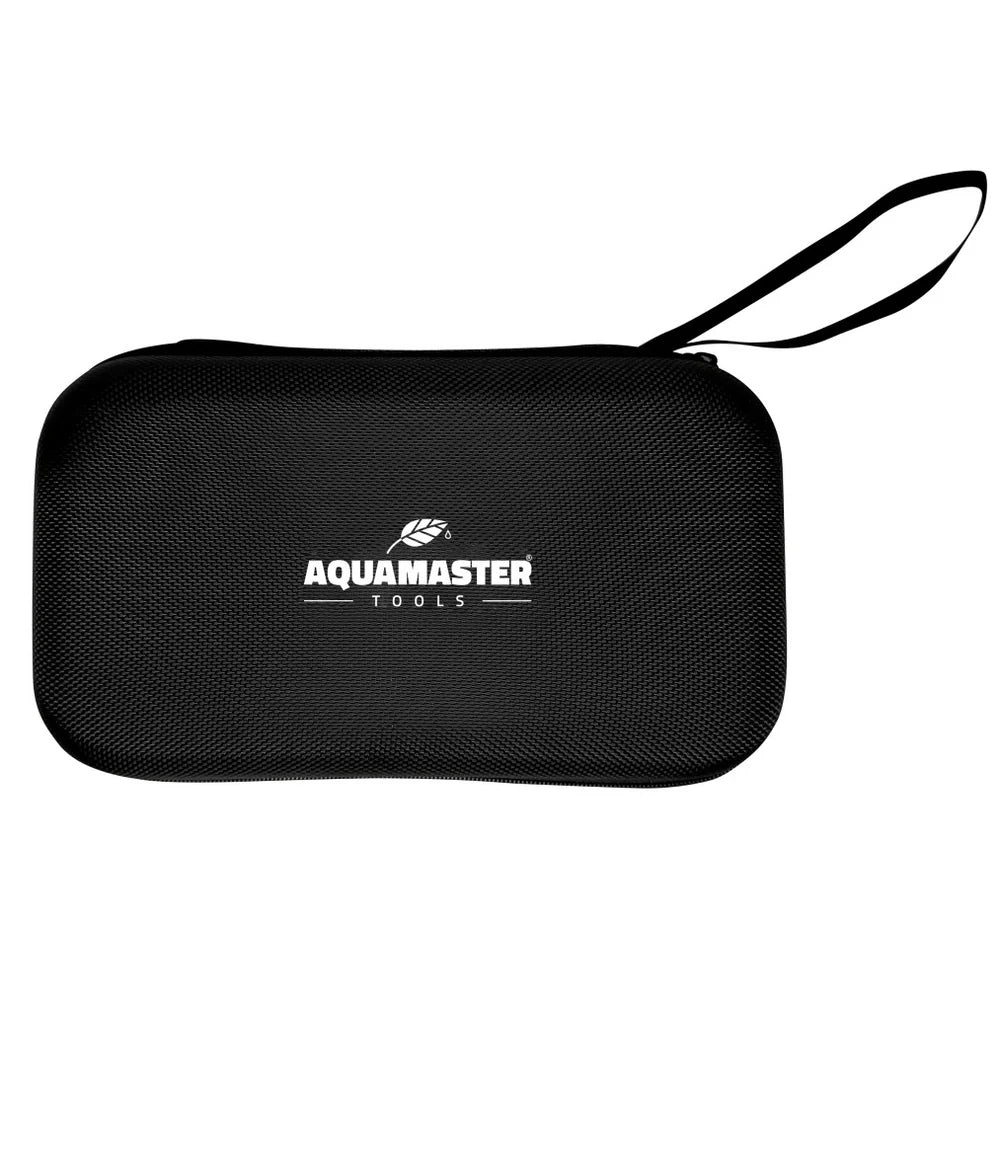

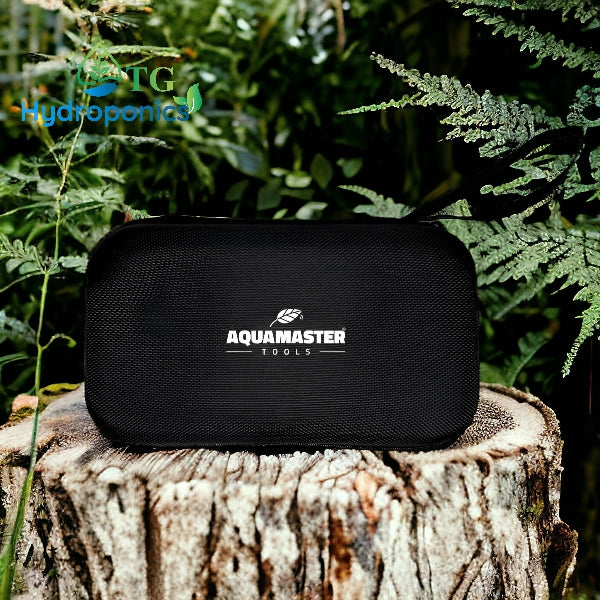

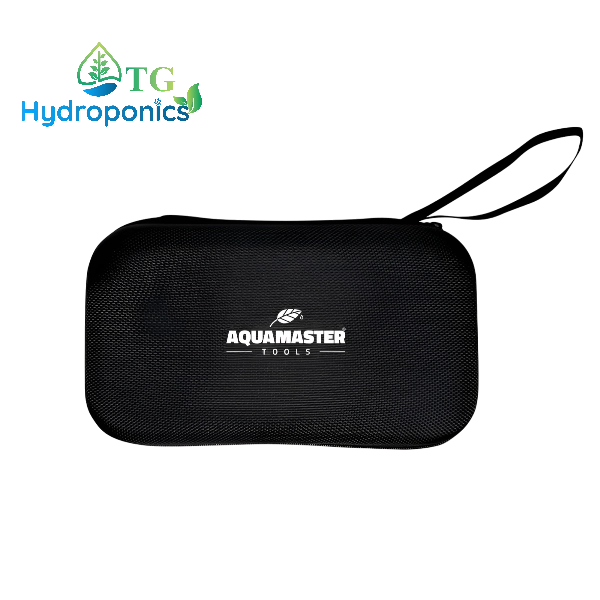

For added convenience, the H600 Pro comes with a durable carrying case, facilitating easy transport and ensuring the meter is well-protected at all times.
In conclusion, the Handheld Substrate Meter H600 Pro combines accuracy, ease of use, and practicality, making it an invaluable asset for precise measurements in soft, moist substrates or liquids across various industries.
Operating Information
-
Check Battery: Ensure the meter is equipped with a 9 Volt battery.
-
Connect Electrodes: Connect the pH and EC electrodes to the instrument.
-
Remove Protective Cap: Take off the protective cap from the pH electrodes.
-
Power On: Press the on/off button to activate the meter.
-
Insert into Substrate/Liquid: Place the electrodes in the (soft) substrate or liquid to be measured. Ensure the substrate is adequately wet/damp for proper functioning.
-
Switch Temperature Units: Press the Temp button to toggle between Celsius and Fahrenheit.
-
Switch Modes: Use the MODE button to cycle through pH, EC, TDS, and PPM measurements.
-
Hold Function: Press the HOLD button to save the measurement. Remember to press HOLD again to clear the hold function for the next use.
-
Turn Off: After use, press the on/off button to turn off the meter.
-
Rinse and Dry Electrodes: Rinse the pH and EC electrodes with tap water to minimize contamination. Gently dry the electrodes afterward.
-
Replace Caps: Replace the protective cap on the EC electrode. Fill the pH electrode's protective cap with storage solution and replace it.
This Package Contains:
- 1 x Handheld Meter H600 Pro
- 1 x Storage Box
- 1 x Substrate pH Electrode
- 1 x Substrate EC Electrode
- 1 x Cord
- 1 x Multilingual User Manual
Calibrated and Ready for Use. Batteries Included.
Specifications:
-
Range:
- pH: 0.1 - 14.0 pH
- EC: 0.0 - 19.9 mS/cm
- TDS: 0.0 - 19.99 PPT
- PPM: 0 - 1999 PPM
- Temp.: 0°C ~ 50°C (32°F ~ 122°F)
-
Resolution:
- pH: ± 0.1 pH
- EC: 0.1 mS/cm
- TDS: 0.01 PPT
- PPM: 10 PPM
- Temp.: 0.1°C (1.0 ºF)
-
Accuracy:
- pH: ± 0.1 pH
- EC: ± 2% F.S.
- TDS: ± 2% F.S.
- PPM: 10 PPM
- Temp.: ± 0.5°C (32°F)
-
Temperature Compensation: 0°C - 50°C (32°F - 122°F)
-
PPM Scale: 700 PPM
-
Calibration:
- pH: 2-point auto calibration 4.0 - 7.0 pH
- EC: 1-point auto calibration EC 1.4 (1413 μS/cm)
-
Calibration Indicator: Disappears after successful calibration, reappears after 30 days.
-
Features: Battery indicator, automatic temperature compensation
-
Power Supply: 1 x 9 Volt Battery (included)
-
Waterproof: Electrodes IP67, Meter IP62
-
Dimensions: 210 x 120 x 60 mm
-
Weight: 430 grams
Video Guides:
- H600 Pro Substrate - Operation and Use
- H600 Pro Substrate - pH Calibration
- H600 Pro Substrate - EC Calibration
- H600 Pro Substrate - Troubleshooting
