Description

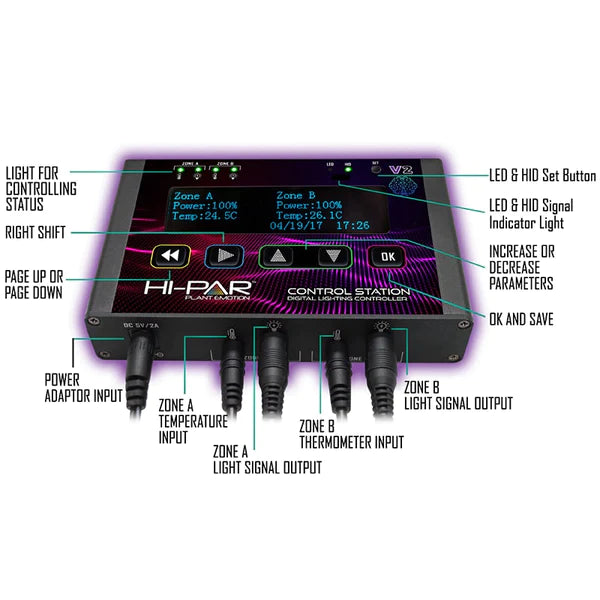

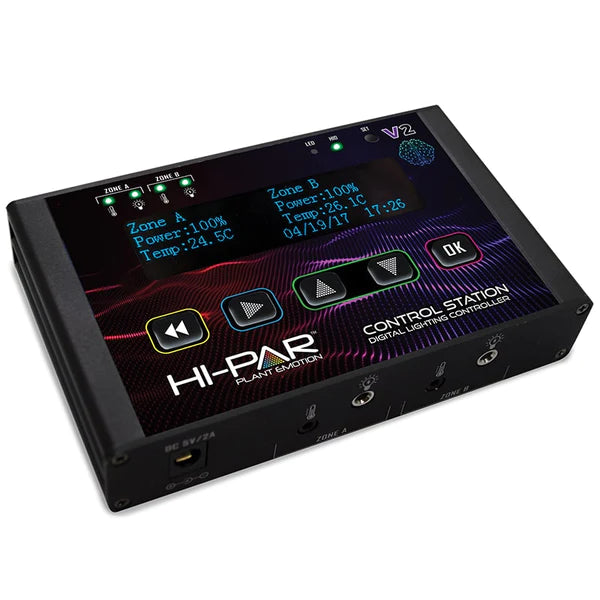

The Control Station gives you unprecedented control over your horticultural lighting fixtures. Utilising next-generation programmable technology; the HI-PAR Control Station will precisely monitor and automate your cultivation lighting. The Intelligent Control Station is the ultimate agricultural illumination solution for hobby and commercial farmers!
The unique smart-technology allows your HI-PAR Control Station to regulate the operation of HI-PAR Controllable ballasts. The Control Station cleverly monitors your room temperatures, light timing, automation, dimming and safety control.

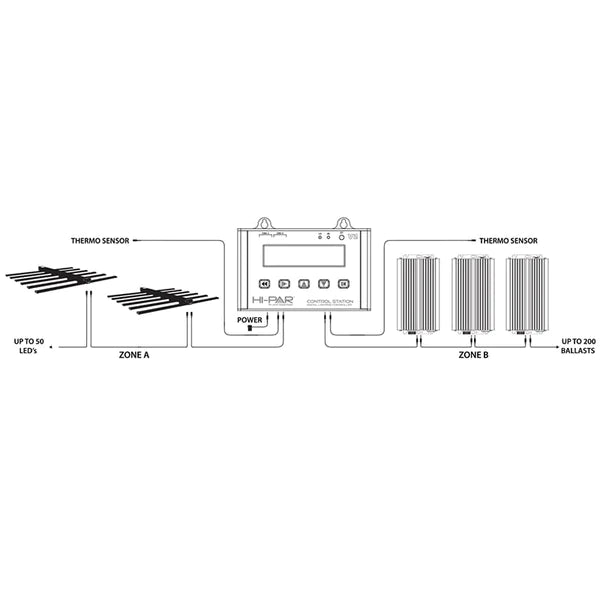

Plug and Play! Simply plug the Control Station into your HI-PAR Controllable Ballast for incredibly easy usability! Controllable Ballasts can be daisy-chained together using the TRS “Link” port, giving you control of up to 400 ballasts in two separate rooms!
SMART FEATURES
-
Digital timing, automation and safety control
-
Smart room temperature maintenance
CONTROL CAPABILITIES
- Suitable for HI-PAR Control Ballasts
- Operate up to 400 lights from 1 Control Station (2 Zones)
PRECISION CULTIVATION
-
Automatic sunrise / sunset feature
-
Digital power dimming by 1% increments for precise control
TECHNICAL SPECIFICATIONS
-
Control Station for up to 400 lighting kits
-
2-Channels (Zone A & Zone B)
-
Thermo Sensor monitoring and control
-
24 hr Light timing
-
Digital dimming control (1% increments)
-
Specialised Control TRS link cables
-
Customisable sunrise & sunset
-
Safety and Thermostat control mechanisms
-
Smart room maintenance
-
Power = DC5V/2A
-
Match Ballasts = 250w, 315w, 400w, 600w, 630w, 750w, 1000w
-
Control Command Time Interval = 2S
-
Power Dimming Scope = 60% – 110%
-
Power Regulation Accuracy = 1%
-
Temperature-controlled Adjustable Inspection Scope = 0ºC-40ºC
-
Temperature-controlled Protection Inspection Scope = 10ºC-50ºC
-
Sunrise and Sunset Duration = 0-30min
BOX CONTENTS:
-
1 x HI-PAR Control Station
-
1 x Power cable
-
2 x Thermo Sensor cable
-
2 x Control ‘Link’ cable
