Description
Lumatek 30W UV Supplemental Light LED
These units require both the Chain Cable and Power Cable Ensure you add the required cables after adding UV Bars to your cart
Ideal for growers who are looking to improve their crop’s UV output.
UV technology is a powerful tool for growers interested in creating a unique final crop – affecting flavour, smell and yield. It can also help to control mould formation with gentle UV-B doses and reducing the need for chemical interventions by the effect of UV-A.

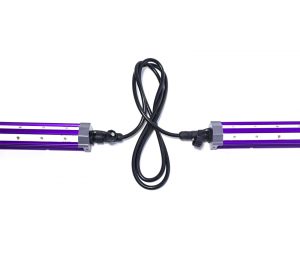

To ensure unit performance, the UV LED bar has a single input and output socket for the Power Cable or Daisy Chain Cable depending on the setup. For this reason, the Power cables and Daisy Chain cables are sold separately. You will need one power cable for each setup, plus a daisy chain cable for each extra UV Bar that is added to the setup.
eg. If you are adding two UV bars to a Zeus unit, you will need one power cable and one daisy chain cable. If you want to run a single UV bar by itself, you will need one power cable. If you are adding a UV bar to an existing UV Bar setup, you will need one daisy chain cable.
This unique fixture was specially designed to provide the ideal UV-B [280-315 nm] and UV-A [315-400 nm] radiation doses to your plants based on scientific support. A single fixture can provide 2.2 kJ/day (12 hours) of UV-B energy and 518 kJ/day (12 hours) of UV-A output. This translates to a fixture output of 100 mW of UV-B and 12000 mW UVA. Lumatek ensures that this fixture does not produce UV-C radiation.
Recommended Coverage
The Lumatek 30W UV Supplemental LED Bar was designed to fit directly into the Zeus fixtures. To make sure you achieve the best light spread over the canopy, we recommend:
Integrate a minimum of 2 units of 30W UV Supplemental Light LED Bar, with:
- ZEUS 465W 2.6 | 1.2 x 1.2 m footprint
- ZEUS 600W 2.6 | 1.4 x 1.4 m footprint
- ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint
- ZEUS 600W PRO 2.9 | 1.4 x 1.4 m footprint
- ZEUS 1000W Xtreme CO2 | 1.5 x 1.5 m footprint w/ CO2 Supplement
Integrate a minimum 3 units of 30W UV Supplemental Light LED Bar, with:
- ZEUS 1000W PRO | 1.5 x 2.0 m footprint
Recommended UV-B + UV-A Radiation Application
Always mix the supplemental UVB + UVA radiation with the previously mentioned Lumatek Zeus Full Spectrum LED Range, starting from 12 hours photoperiod to less during the Flowering grow stage, at least 4 weeks before harvest.
For a good UV radiation spread, ensure to install the recommended minimum units and follow the distance to canopy referred on the Grow Light Strategies table.
If you notice plant damage, we recommend to increase the distance between fixture and canopy or decrease the UV light output delivered to your plants by reducing the photoperiodic time.
Precautions
The LUMATEK 30W UV Supplemental LED Bar it´s an equipment that delivers UVB (near UV Erythemal) and UVA (near UV-black light) electromagnetic radiation spectrum with wavelengths from 280 to 400 nm.
To avoid any biological affects in physical human body, please switch the power off when installing or/and during the maintenance processes on your grow system.
If turning Off UV Bars won’t be possible, all exposed skin should be covered with opaque material including face, neck, head, hands, and harms. It is assumed that other body parts are covered if wearing proper laboratory attire. Example, long pants, closed toe shoes, gloves, long sleeve lab coats and protective glasses.
Do not look directly to the light as the UVB radiation from the light fixture can damage eyes and skin.
Do not restrict the airflow across the fixtures to avoid any heat build-up which may reduce drastically the lifetime of your UV supplemental LED bars.
Do not put the UV Supplemental LED Bar in contact with any surface while still ON.
Only use on plants.
FEATURES
– Increase raw substance levels by 30%
– Control mold formation
– Reduce the need for chemical interventions
– Flavour & Taste direct impact
– Extends plants shelf life
– Top Bin LED UV Chips
– Attachable to all Lumatek Zeus Full-Spectrum LED Range

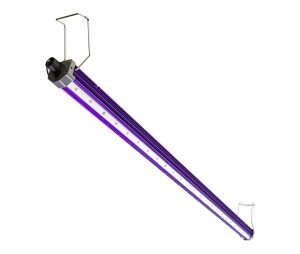

– Flexible hanging brackets
– Plug and Play: internal LED Driver
– Daisy chain connectivity
– Passive Cooling
– IP65
– Power Cable (4m) & Daisy Chain Cables (1.5m) sold separately
ITEMS INCLUDED:
– Lumatek 30W UV Supplemental Light LED Bar
(Power Cable and Chain Cables sold separately)
KEY SPECIFICATIONS
PRODUCT CODE: LUMLED013
INPUT VOLTAGE: 220-240 V AC, 50-60 Hz
INPUT POWER: 30 W
POWER FACTOR: > 0.98
LIGHT DISTRIBUTION: 120° (Beam Angle)
LIGHT SOURCE: UVB + UVA Domestic Diodes
DAISY CHAIN CAPILIBITY: Yes
WEIGTH: 1.2 Kg
DIMMENSIONS: 1000 x 48 x 42 mm
SPECTRUM: UVA + UVB
THERMAL MANAGEMENT: Passive
LIFETIME: > 8500 hrs
WARRANTY: 1 Year
IP RATING: IP65
CERTIFICATIONS: CE, EMC, LVD
INDUSTRY STANDARDS: IEC 60598-1 (-2-1), EN IEC 620312, EN 62471, EN 62493
ELECTRICAL INSULATION: Class I
