LUMATEK 630W DE CMH LIGHT KIT

LUMATEK 630W DE CMH LIGHT KIT

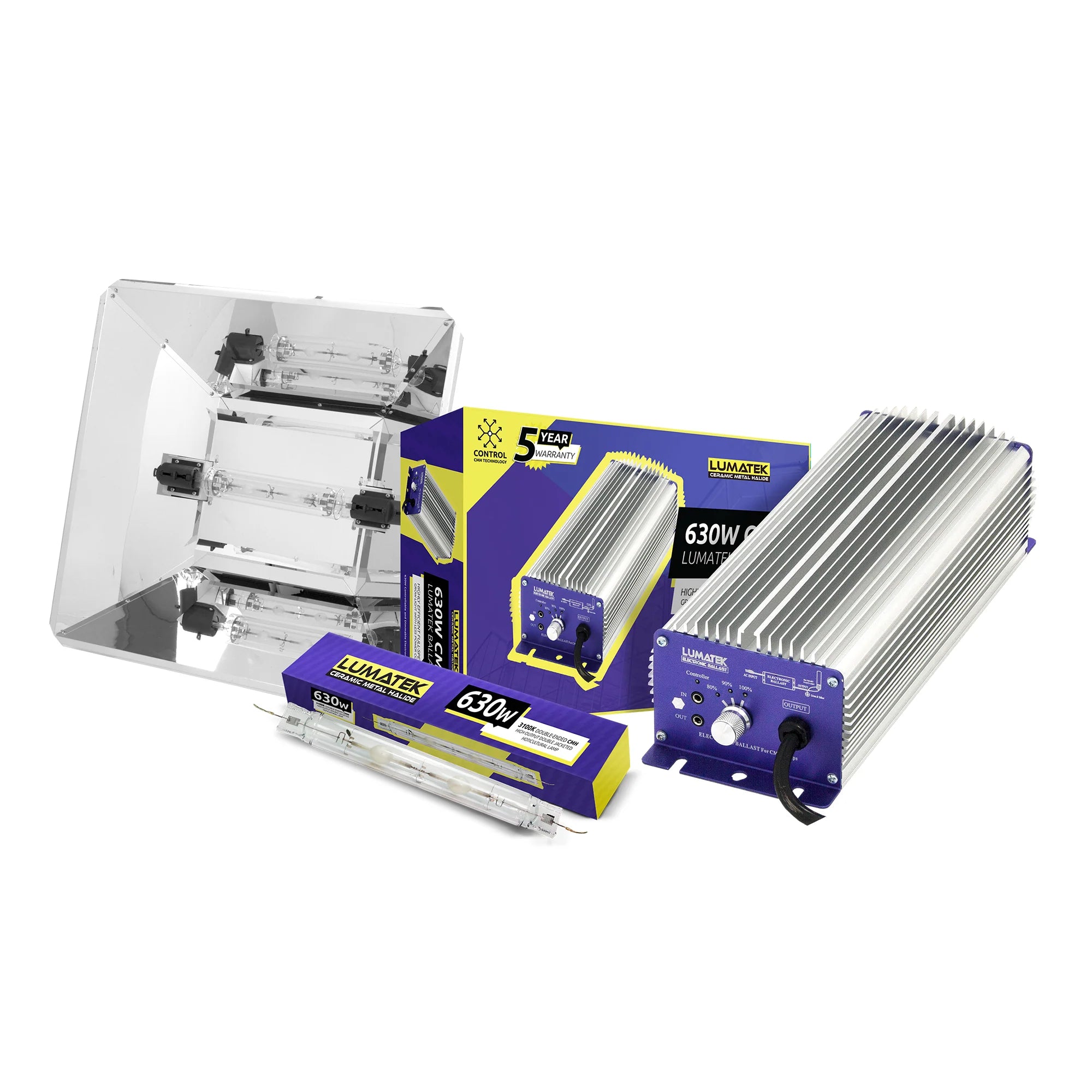

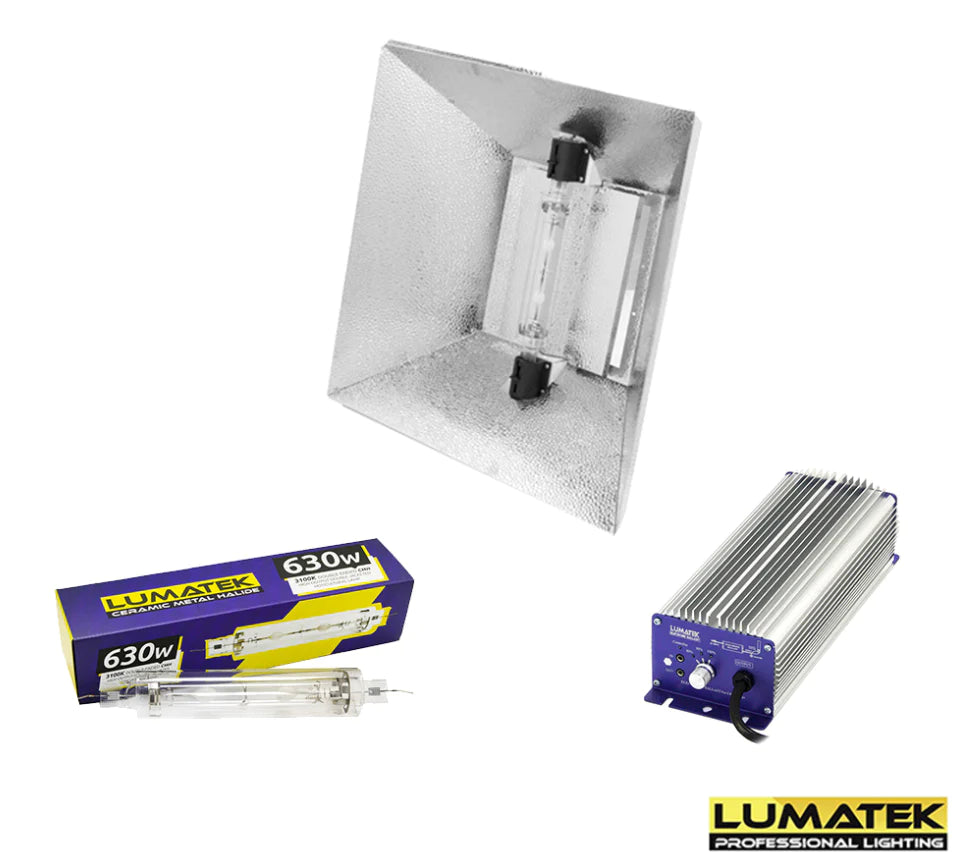

The ever mighty Lumatek 630W Double Ended digital lighting kit consists of the highest PAR/PPF output 630W DE lamp that sits in the Tekken Pro DE hood which is driven remotely by the 630W CMH Dimmable & Controllable e-ballast.

Lumatek 630w Ballast

This reliable digital ballast has been successfully used in cultivation facilities around the word and uses high frequency technology to efficiently fire and operate 630W Double-Ended (DE) Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps.

CMH technology creates high energy PAR/PPF levels with low heat and full spectrum light which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction.

This ballast is for use with Lumatek 630W DE CMH lamp (4200K Daylight and 3100K Agro available).

For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression.

The new addition of Control capability allows you to easily monitor and regulate your grow room environment (Lighting timming, sunrise/sunset, digital 1% dimming, etc). By simply connecting the Lumatek Digital Panel (sold separately) into the TRS “Link” port on your controllable ballast.

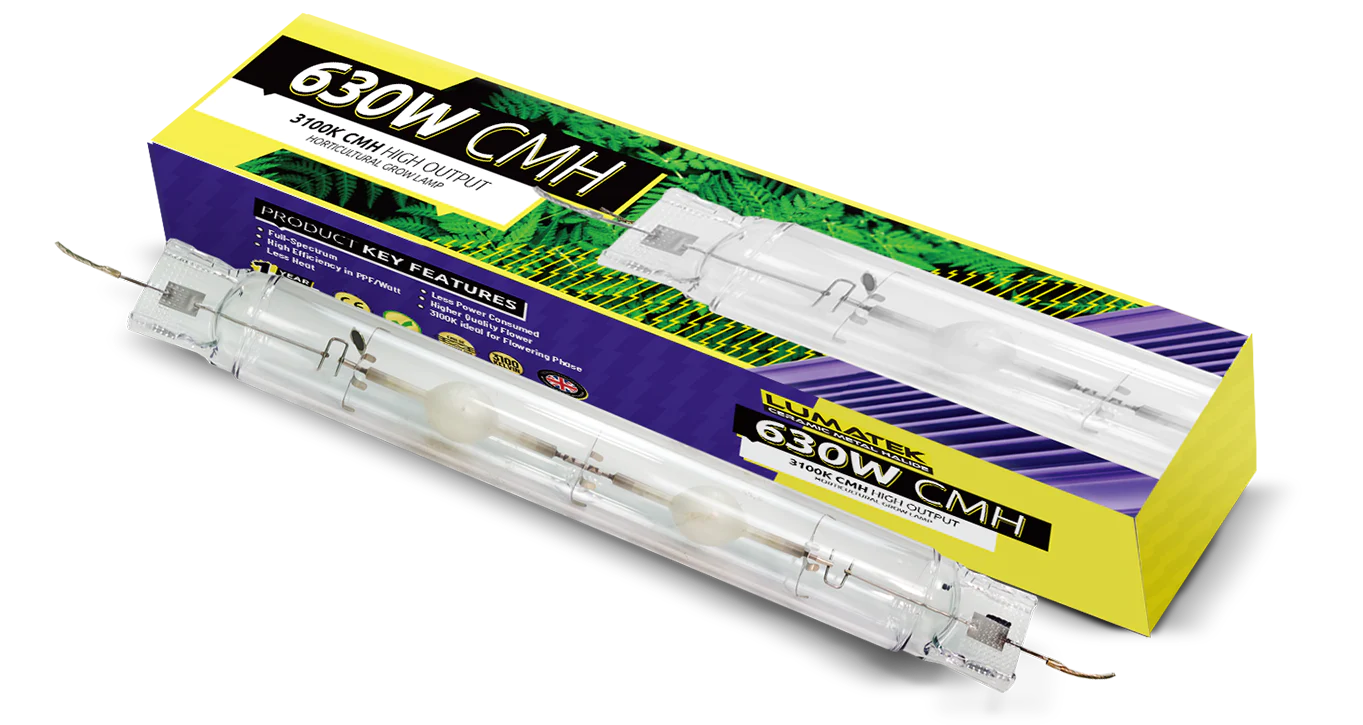

Lumatek 630w DE Globe

The Lumatek Ceramic Metal Halide Double-Ended (DE) high frequency pulse-start lamp has been engineered for use with Lumatek 630W DE CMH electronic ballast and is produced using high-grade ceramic arc tube technology and specific horticultural gas blend that creates optimal spectral output for healthy plant growth.

CMH technology creates high energy PAR/PPF levels with low heat at full spectrum which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction. Lumatek 630W Double-Ended (DE) Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps are available in 4200K Daylight and 3100K Agro CCT formats.

Double-ended CMH lamps are more stable than traditional, single-ended Metal Halide (MH) lamps and this allows them to have an increase in light intensity and PAR/PPF output of up to 50% compared with similarly powered standard MH lamps.

The PCA ceramic arc tube permits the lamp to operate at higher internal temperatures increasing colour rendering, output and efficiency. PCA resists interaction with the chemicals inside the tube which stabilizes the chemical mix over the life of the lamp, thereby improving colour consistency and PAR/PPF level maintenance. Pulse-start technology enables faster start up & restrike time, longer lamp life and increased lumen maintenance.

Lumatek Tekken Pro DE Reflector

The Lumatek Tekken Pro DE Reflector is a premium professional grade reflector designed specifically for grow room and grow tent use. The closed end design is vented to allow heat dissipation and focuses the light straight down into a 1.2 x 1.2m footprint.

The Tekken Pro DE is produced using MIRO® reflective surface material which is made from purest aluminium 99.99% and super reflective oxide layer system giving 95 % reflectivity making this tone of the most reflective materials on the market.

This high quality growlight reflector creates good penetration and a uniform square spread of light with no hot spots so that plants grow evenly. The closed end design and excellent reflective surface ensures maximum light intensity focused straight down onto plants with very little light wasted.

Designed and engineered in the UK by Qwod and Lumatek, this premium design is also available in Hammertone aluminium; 92% reflective.

More Light – Less Heat – Full Spectrum – More Yield

SPECS:

Voltage 240V 50/60Hz
Input Current Max (A) 3.2A
Input power 668W
Output power 630W
Power factor >0.97
Efficiency 95%
Voltage range 185 to 275V
THD <10%
Dimming 80% - 90% - 100%
CF <1.7
Operating frequency high frequency
Environment temperature for full load operation 40℃
Enclosure temperature rise (Δt) ) 30℃
Ballast IP rated IP20
Humidity 90%
Dimensions 320 x 114 x 81mm
Weight 3.8 Kg

Electronic ballast for 630W DE CMH lamps
No audible noise, no flicker
Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
EMI suppression certified

CLICK HERE FOR FURTHER INFORMATION

Can be fully controlled with the Lumatek Digital Panel Plus 2.0

LUMATEK Digital Panel PLUS 2.0 (HID+LED)

CLICK ON THE IMAGE FOR INFORMATION ON THE CONTROL PANEL

• Connectable with Lumatek Controllable HID ballasts & fixtures; 315W, 600W, 630W & 1000W
• Connectable with Lumatek Controllable LED drivers & fixtures; 90W, 465W, 600W & 1000W.
• Dual signal RS485 digital for HID and 0-10V analog protocol for LED.
