Lumatek Zeus Supplemental UV LED Light Bar UVA+UVB 30W | Single
Ideal for growers aiming to boost the UV output of their crops, the Lumatek 30W UV Supplementary Light LED Bar offers an additional light spectrum for those interested in enhancing the quality of their harvest during the Flowering growth stage.
This versatile product, designed to seamlessly integrate with the popular Lumatek Zeus LED fixtures and equipped with its own power supply, is daisy-chainable.
Lumatek UV Bar Options The UV Bars are supplied without power cables, allowing you to connect them directly to power sources or daisy-chain them (connect to another 30W UV LED Bar). The purchase options include:
- Double bars with cables - Two Lumatek UV Bars with daisy chain and power cables, suitable for most Zeus 600W LEDs.
- Triple bars with cables - Three Lumatek UV Bars with daisy chain and power cables, ideal for Zeus 1000W Pro LED.
- Single - Individual Lumatek UV Bar without cables, suitable as a replacement.
- Single plus power - Lumatek UV Bar with a power cable.
- UV LED Bar Power Cable (4m).
- UV LED Bar Daisy Chain Cable (1.5m).
Why Choose Lumatek UV LED's? Achieve premium fruit or flower growth by incorporating ultraviolet signaling into your cultivation. This technology serves as a powerful tool for growers aiming to produce a unique final crop, influencing its flavor, aroma, and potentially increasing the yield by up to 30%. Moreover, it aids in mold prevention through gentle UV-B exposure, reducing the need for chemical interventions with the help of UV-A. While the 30W UV LED is engineered to deliver the ideal UV-B [280-315 nm] and UV-A [315-400 nm] radiation doses, Lumatek strongly advises users to acquaint themselves with the potential hazards associated with UV exposure when recommending, using, or handling these fixtures. The user manual is available for download as a PDF.
This unique fixture has been specially crafted to provide precise UV-B [280-315 nm] and UV-A [315-400 nm] radiation doses based on scientific research. A single fixture can deliver 2.2 kJ/day (12 hours) of UV-B energy and 518 kJ/day (12 hours) of UV-A output, equating to 100 mW of UV-B and 12000 mW UVA. Rest assured, this fixture does not emit UV-C radiation. Combine this technology with the Lumatek Zeus LED Range frames and follow the guidance provided in our Grow Light Strategies.

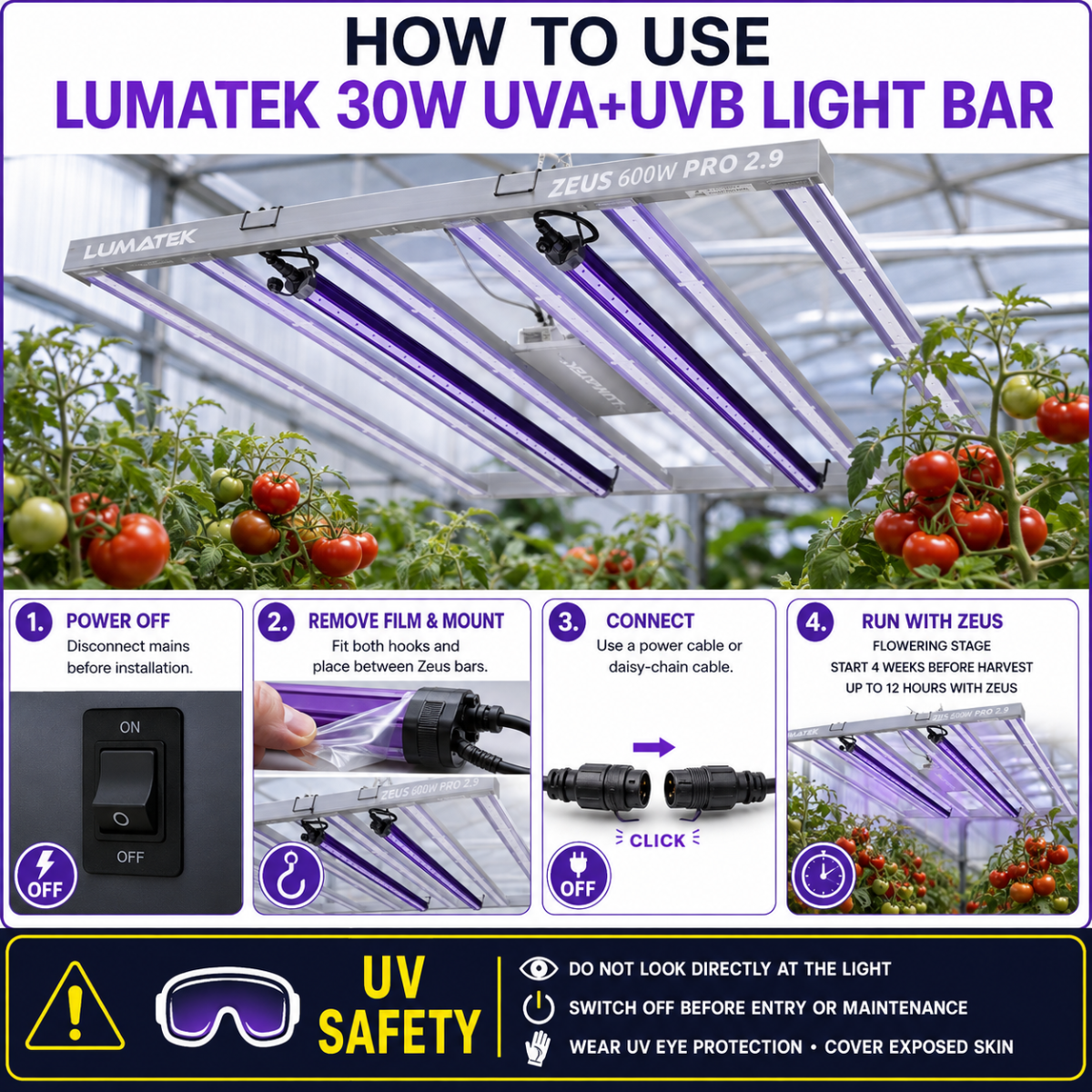

The daisy chain cable enables easy connection of multiple fixtures. To ensure optimal performance, this LED bar features a single input and output socket for the Power Cable or Daisy Chain Cable, depending on its use. Consequently, the Power (4m) and Daisy Chain (1.5m) cables are sold separately.
UV Light Bar Recommended Coverage The Lumatek 30W UV Supplemental LED Bar is designed to seamlessly integrate into Zeus fixtures. For optimum light distribution over the canopy, we recommend integrating two units of the 30W UV Supplemental Light LED Bar with the following Zeus models:
- ZEUS 465W 2.6 | 1.2 x 1.2 m footprint
- ZEUS 600W 2.6 | 1.4 x 1.4 m footprint
- ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint
- ZEUS 600W PRO 2.9 | 1.4 x 1.4 m footprint
- ZEUS 1000W Xtreme CO2 | 1.5 x 1.5 m footprint with CO2 Supplement
For those using three units of the 30W UV Supplemental Light LED Bar, consider the following Zeus model:
- ZEUS 1000W PRO | 1.5 x 2.0 m footprint
Key Specifications of the Lumatek UV Supplemental Light Bar PRODUCT CODE: LUMLED013 UV-B (280-315 NM): 100 mW UV-A (315-400 NM): 1200 mW INPUT VOLTAGE: 20-240 V AC, 50-60 HZ DRIVER: 30 W, 220-240 V AC, integrated INPUT POWER: 30 W (±5%) FOOTPRINT: 1.2 x 0.6 m APPLICATION: Multi-layer, Room, Tent WATERPROOF & DUSTPROOF: IP65 LIFETIME: L90 > 8500 HRS LIGHT DISTRIBUTION: 140° LIGHT SOURCE: UV-B and UV-A Domestic Diodes QUANTITY OF DIODES TOTAL: 8 UV-B, 40 UV-A DIMMABLE: No EXTERNAL CONTROL: No DAISY CHAIN CAPABILITY: Yes WEIGHT: 1.2 Kg DIMENSIONS: 1000 x 48 x 42 mm THERMAL MANAGEMENT: PASSIVE POWER FACTOR: > 0.98 BTU: 102 BTUs/h WARRANTY: 1 YEAR CERTIFICATIONS: CE
Recommended UV-B + UV-A Radiation Application For optimal results, blend the supplemental UVB + UVA radiation with the Lumatek Zeus Full Spectrum LED Range, starting with a 12-hour photoperiod and gradually reducing it during the Flowering growth stage, at least 4 weeks before harvest.
To ensure even UV radiation coverage, adhere to the recommended minimum units and canopy-to-fixture distance specified in the Grow Light Strategies table. If you observe any plant damage, consider increasing the distance between the fixture and the canopy or reducing the UV light output by adjusting the photoperiodic time.
