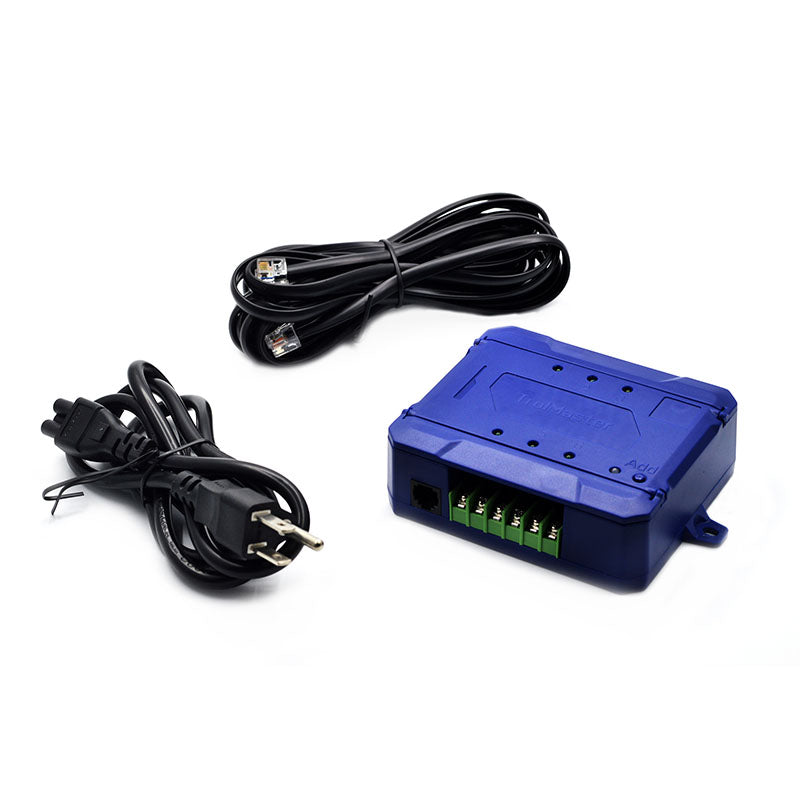

TrolMaster Aqua-X 24v Control Board OA6-24

The TrolMaster OA6-24 control board is an efficient solution for controlling multiple 24VAC solenoid valves within an irrigation system. Here are the detailed features and functionalities of the OA6-24:

Key Features:

• Control Multiple Solenoid Valves: Designed to control up to 6 individual 24VAC solenoid valves.
• Individual Timer Settings: Each valve can have its own timer settings, allowing precise control over irrigation schedules.
• Expandable: Up to 5 OA6-24 boards can be connected to a single Aqua-X controller, providing a maximum of 30 individually controlled outputs.
• Master Pump Link: By using a DSP-1 in conjunction with the OA6-24, a master pump link is created. This setup ensures that when any of the 24VAC irrigation zones are activated, the DSP-1 will automatically turn on the pump.
• LED Power Indicator: Provides a visual indication of power status.
• Addressing Button: Simplifies the configuration and management of the control board.

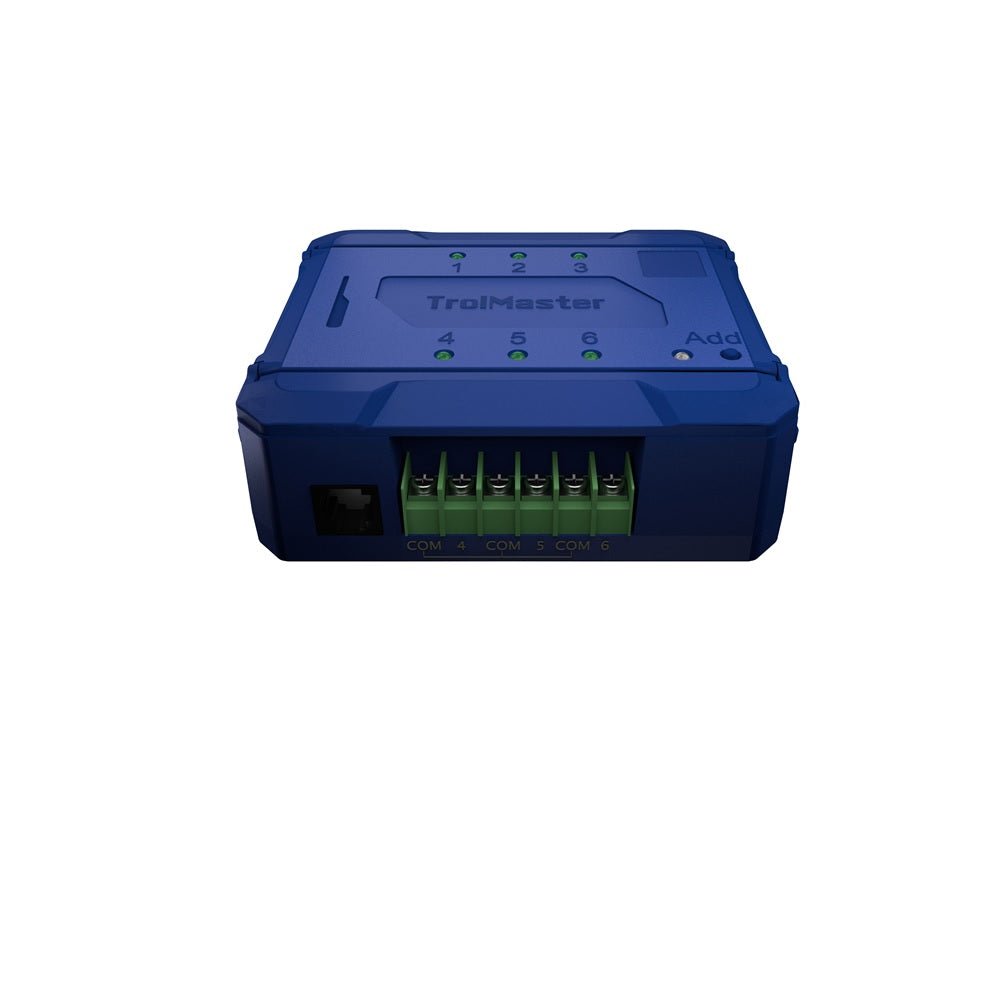

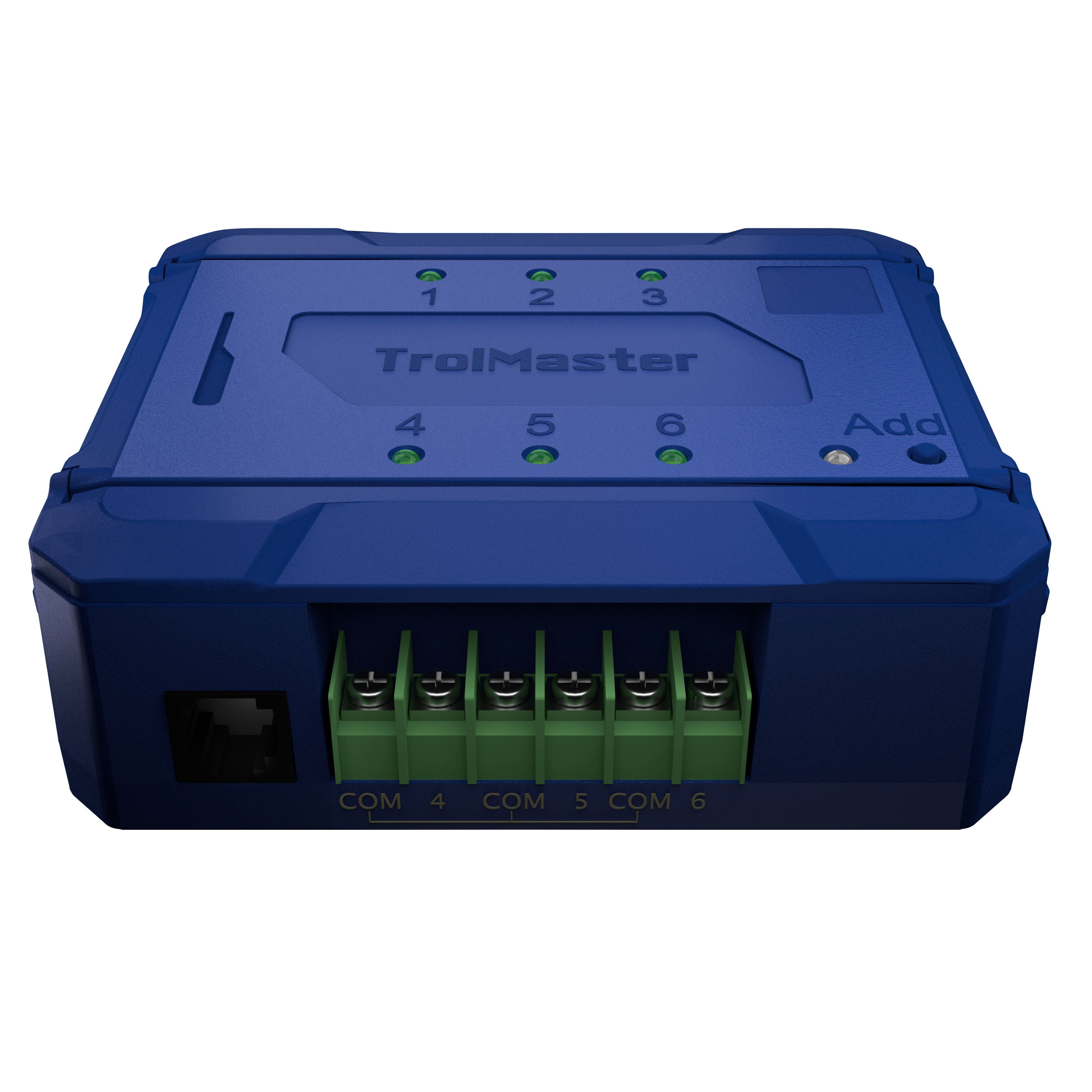

• Individual LED Indicators: Each output has its own LED indicator, making it easy to see which valves are active.
• Daisy Chain Connectivity: Equipped with double RJ12 cable sockets, allowing for easy daisy chain connections between multiple OA6-24 boards.

Benefits:

• Efficient Control: Offers a straightforward method to manage multiple irrigation zones with individual timing, enhancing the flexibility and precision of irrigation schedules.
• Easy Integration: Can be easily integrated into the Aqua-X system, expanding its capabilities and providing a robust solution for complex irrigation setups.
• Automated Pump Activation: The automatic pump link feature ensures that the pump operates only when necessary, optimizing water use and reducing wear on the pump.

By incorporating the OA6-24 control board into your irrigation system, you gain enhanced control over multiple zones, ensuring each area receives the precise amount of water needed, ultimately leading to better crop management and potentially higher yields.
