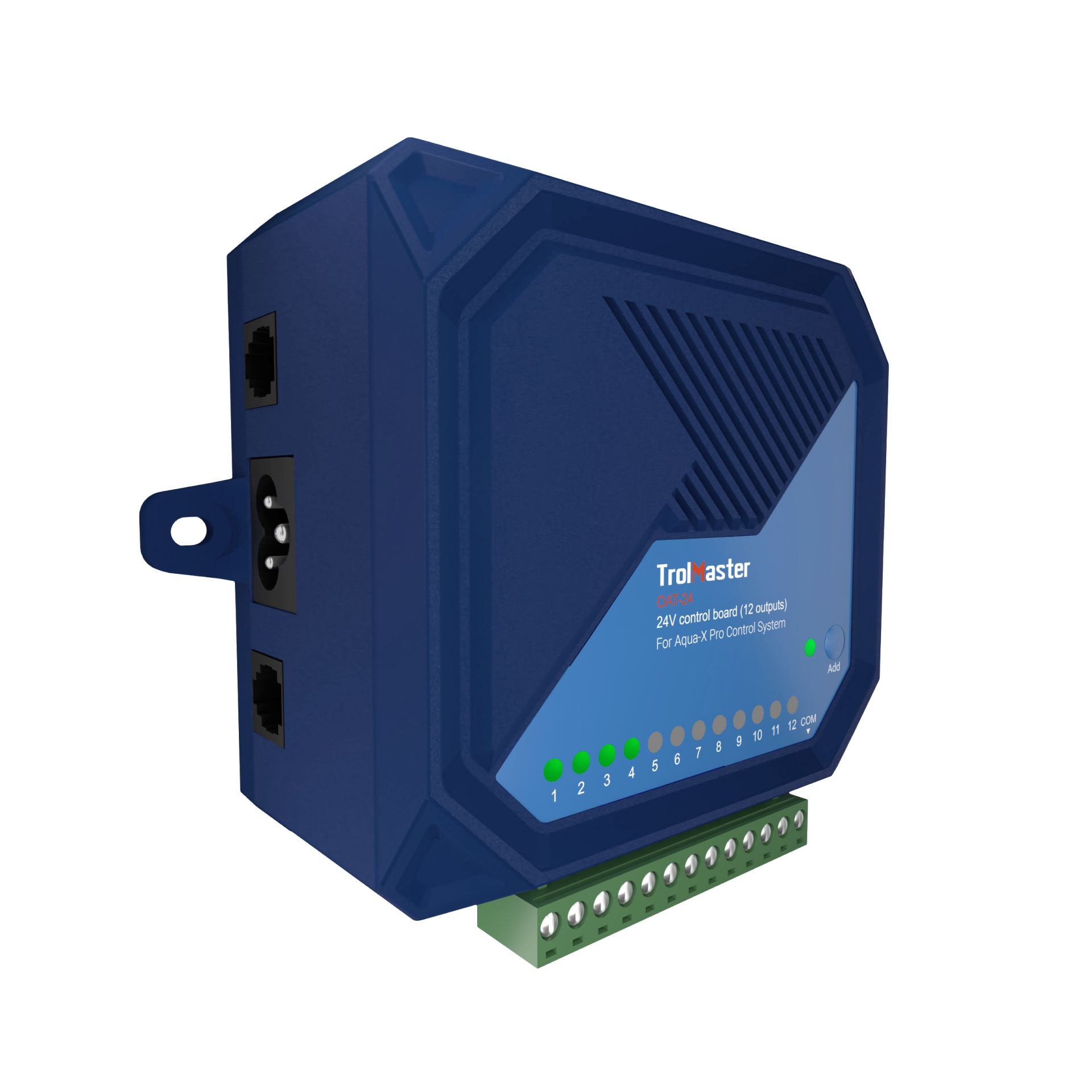

TrolMaster Aqua-X Pro 12 Outputs 24V Control Board OAT-24

The TrolMaster Aqua-X Pro 12 Outputs 24V Control Board (OAT-24) is designed to enhance the Aqua-X Pro Irrigation Control System by providing precise control over irrigation solenoids. Here are its key features, specifications, and applications:

Key Features:

1. Individual 24V Outputs:

   • Features 12 individual 24V outputs to control up to 12 individual 24-volt irrigation solenoids.
   • By using multiple OAT-24 modules, the system can manage up to 600 individually controlled 24V valves.

2. Multiple Control Modes:

   • Each solenoid valve can be independently configured with one of five control modes: Recycle, Schedule, Demand, Volume, or Auto-fill.

3. Advanced Irrigation Management:

   • Provides the ability to control up to 600 solenoids using the five available control modes, allowing for easy management of irrigation schedules for multiple nutrients, rooms, and irrigation zones.
   • Ensures precise control over irrigation, ensuring that each zone receives the appropriate amount of water and nutrients.

4. Important Note:

   • If more than one OAT-24 is connected to the NFS Controller, you cannot share a common wire from one OAT-24 to another OAT-24.

Package Content:

• 1x OAT-24
• 1x 16ft RJ12 Cable
• 1x Power Cable
• 1x 13-Pin Phoenix Type Connector

Specifications:

• Input Voltage: 240V, 50/60Hz
• Max Input Current: 1.7A
• Max Output Voltage/Current: 24VAC/0.5A per output
• Working Environments:
  • Temperature: 32-122°F (0-50°C)
  • Humidity: ≤90%

Applications:

• Hydroponics: Allows for precise and automated control of irrigation systems, ensuring optimal water and nutrient delivery.
• Agriculture: Manages complex irrigation setups across different zones and crops, improving efficiency and crop yields.
• Gardening: Facilitates customized watering schedules for different plant types, enhancing garden health and growth.

The OAT-24 module is a critical component for optimizing irrigation systems. Its robust design and advanced features offer unparalleled control and flexibility, making it essential for managing complex irrigation setups efficiently.
