TrolMaster Hydro-X AC Remote Station ARS-1 is designed to provide a solution for managing separate day and night temperature settings on mini-split air conditioners. Here’s an in-depth look at its features, capabilities, and usage:
Key Features:
-
Day/Night Temperature Control:
-
Automatic Adjustment: Switches between day and night temperature settings based on the status of the photocell sensor.
-
Universal Compatibility: Works with most mini-split air conditioners and some window-type AC units that have an IR (infrared) remote controller.
-
Learning Function:
-
IR Signal Learning: Uses the remote control that came with your AC unit to "teach" the ARS-1 module the necessary IR signals.
-
Signal Emission: Sends learned IR signals to the indoor mini-split head unit to adjust the setpoint automatically.
-
Compatibility Notes:
-
Not Compatible with Certain Brands: Daiken, Mr. Cool, Innovair, Denali Aire, Cooper and Hunter are currently not supported.
-
Firmware Update: Requires a Micro SD card with 32GB or less capacity for firmware updates on TrolMaster controllers and modules.
Package Contents:
-
1 x AC Remote Station (ARS-1): The main unit for controlling the AC settings.
-
1 x Signal Emitter: Device for sending IR signals to the AC unit.
-

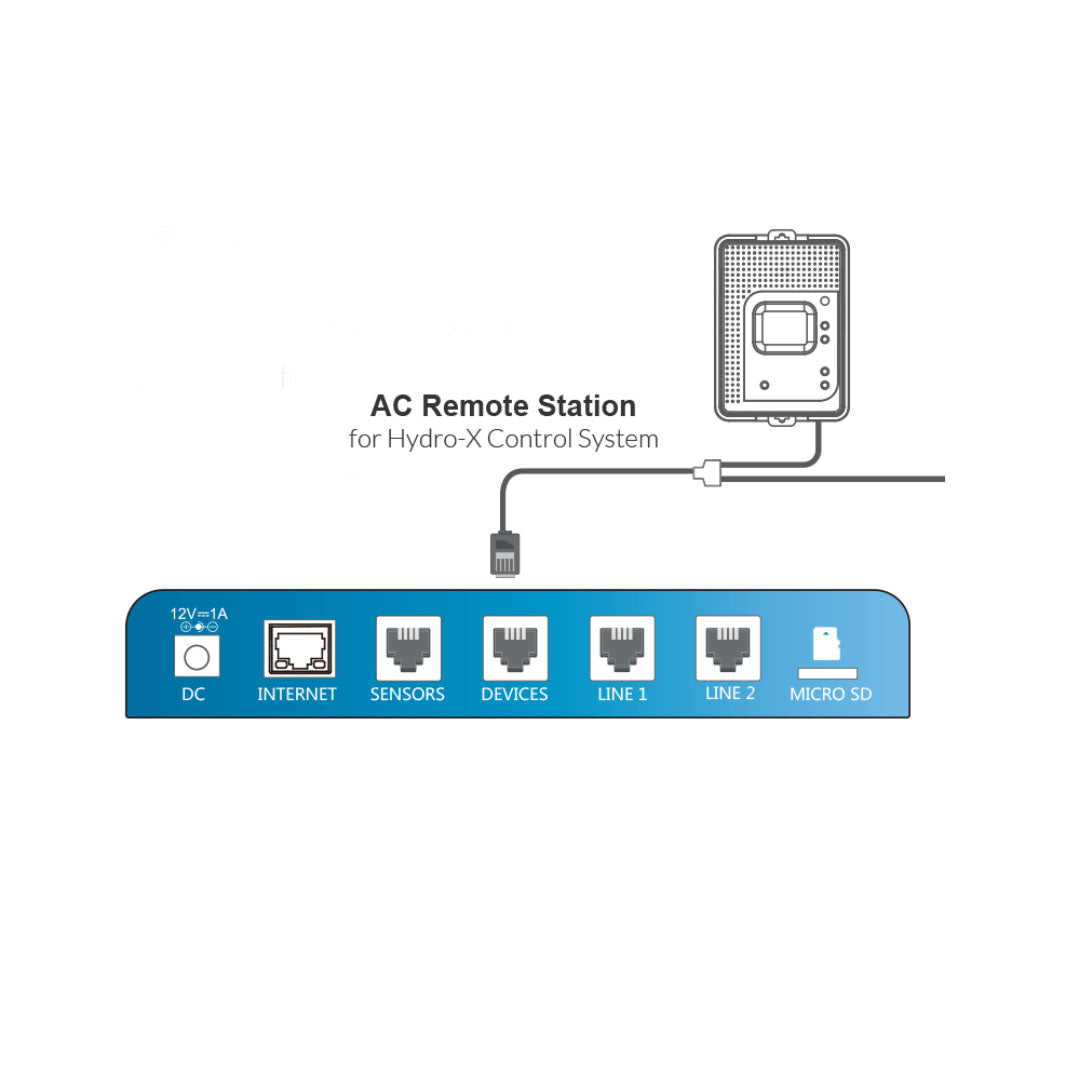

1 x 16ft RJ12 Cable: For connecting the ARS-1 to the TrolMaster system.
-
1 x 4ft RJ12 Cable: Additional connection cable.
-
1 x RJ12 T-Splitter: Allows for multiple connections to the Hydro-X system.
Applications:
-
Mini-Split AC Units: Provides day/night temperature control for mini-split air conditioners.
-
Window-Type AC Units: Can also be used with some window-type AC units that use an IR remote.
Specifications:
-
IR Compatibility: Works with most IR remote-controlled mini-split and some window-type AC units.
-
Cabling: Includes both 16ft and 4ft RJ12 cables for flexible installation.
-
T-Splitter: Facilitates multiple connections within the Hydro-X system.
Pros:
-
Versatile Temperature Control: Allows for separate day and night settings automatically.
-
Wide Compatibility: Works with a broad range of mini-split and window-type AC units.
-
Easy Integration: Simple setup using the IR remote that came with your AC unit.
Cons:
-
Limited Brand Compatibility: Not compatible with Daiken, Mr. Cool, Innovair, Denali Aire, Cooper and Hunter.
-
Firmware Update Limitation: Requires a Micro SD card of 32GB or less for firmware updates.
Ideal For:
-
Grow Rooms/Greenhouses: Where precise and automated temperature control is essential for optimal plant growth.
-
Residential and Commercial Spaces: For improved comfort and energy efficiency with day/night temperature settings.
Usage Tips:
-
IR Signal Learning: Follow the instructions carefully to ensure the ARS-1 correctly learns the IR signals from your AC unit’s remote.
-
Placement: Position the signal emitter appropriately to ensure it can reliably communicate with the indoor AC unit.
-
Firmware Updates: Keep a compatible Micro SD card on hand for any necessary firmware updates.
Package Contents Summary:
Component |
Description |
AC Remote Station (ARS-1) |
Main unit for controlling AC settings. |
Signal Emitter |
Sends IR signals to the AC unit. |
16ft RJ12 Cable |
For connecting the ARS-1 to the Hydro-X system. |
4ft RJ12 Cable |
Additional connection cable. |
RJ12 T-Splitter |
Allows for multiple connections. |
