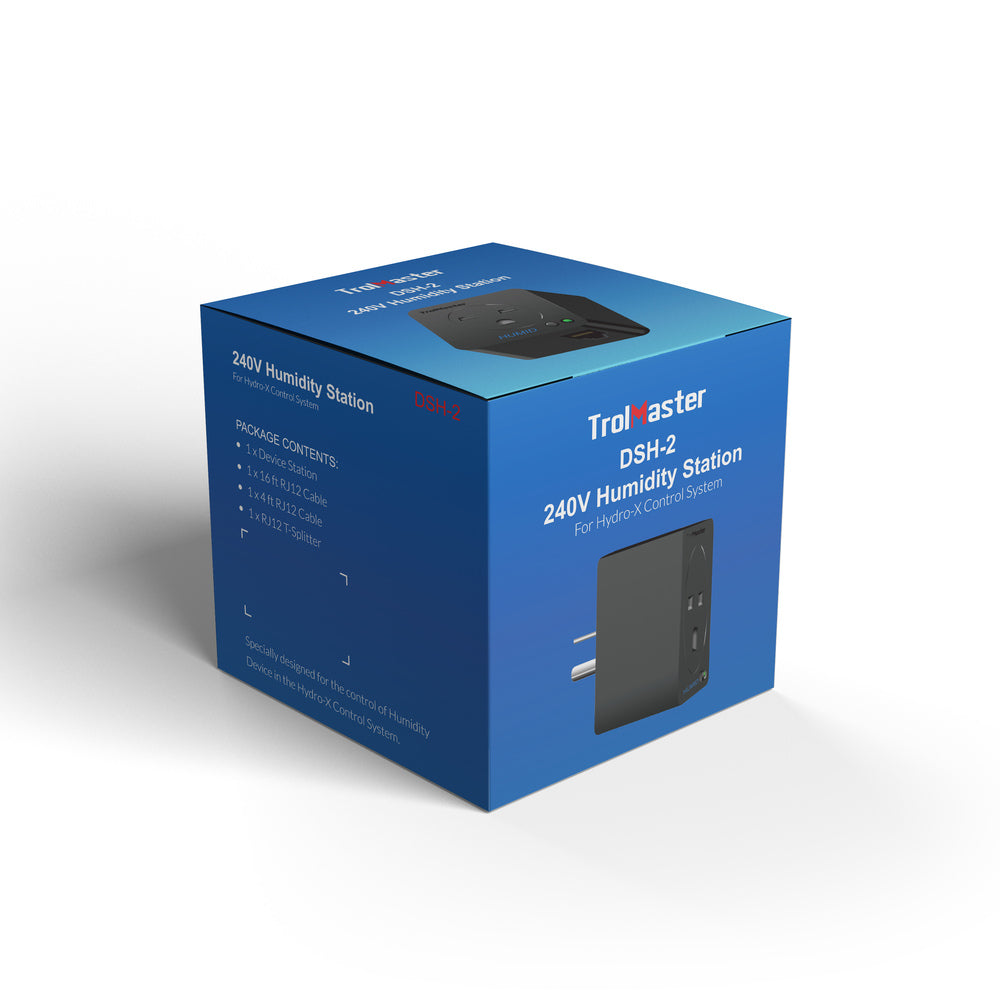

Trolmaster Hydro-X Humidity Device Station DSH-2A

The TrolMaster Hydro-X Humidity Device Station DSH-2A is a control module for managing humidity devices. Here’s a comprehensive overview of the product:

Features

• Purpose: Controls standard humidifying or dehumidifying devices via the Hydro-X system.
• Voltage: Operates at 240V.
• Current Rating: 10 amps maximum. For dehumidifiers, ensure the current is less than 7 amps to avoid overload.

LED Status Indicators

• Blinking Green Fast: Indicates that the module is not addressed to the controller or there is a poor connection. Press the small button on the module to address/link it.
• Blinking Green Slow: The module is addressed and connected to the controller but currently turned OFF.
• Solid Green: The module is addressed, connected, and currently turned ON.
• Blinking Red: The module is overloaded. To reset, unplug the module from the power source.

Package Contents

• 1 x Device Station DSH-2A: The main device for controlling humidity devices.
• 1 x 16ft RJ12 Cable: For connecting the DSH-2A to other components or devices.
• 1 x 4ft RJ12 Cable: Additional cable for connectivity.
• 1 x RJ12 T-Splitter: Allows connection of multiple devices or components.

Usage Instructions

1. Connect the DSH-2A to the Hydro-X system using the RJ12 cables.
2. Connect your humidifying or dehumidifying device to the DSH-2A.
3. Address the module to the Hydro-X controller if it’s the first installation by pressing the small button.
4. Monitor the LED status for indications of connection, operation, and potential overload issues.
5. Adjust humidity settings and manage devices via the Hydro-X interface.

Applications

• Hydroponics and Agriculture: Control humidifying or dehumidifying devices to maintain optimal humidity levels.
• Commercial Environments: Suitable for managing larger-scale humidity control systems.

Firmware and Updates

The DSH-2A itself does not require firmware updates. However, ensure that your Hydro-X controller has the latest firmware for optimal performance.
