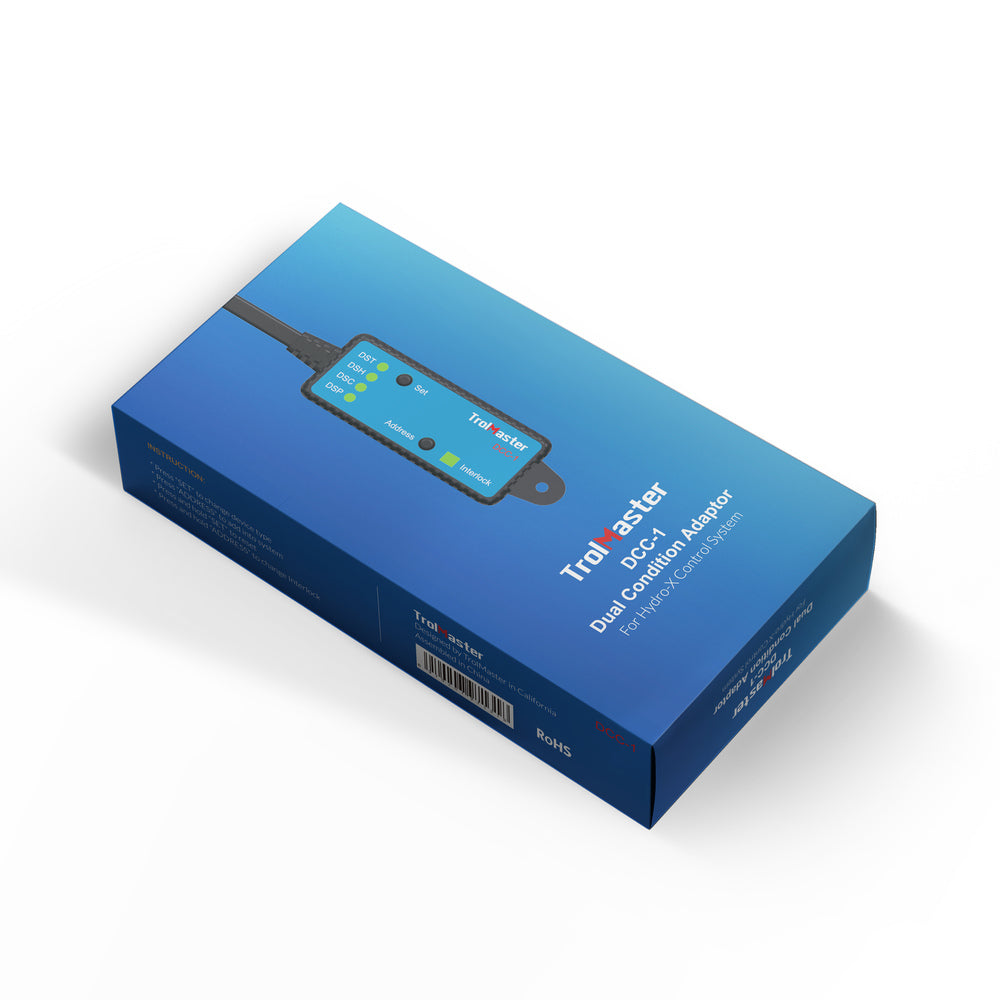

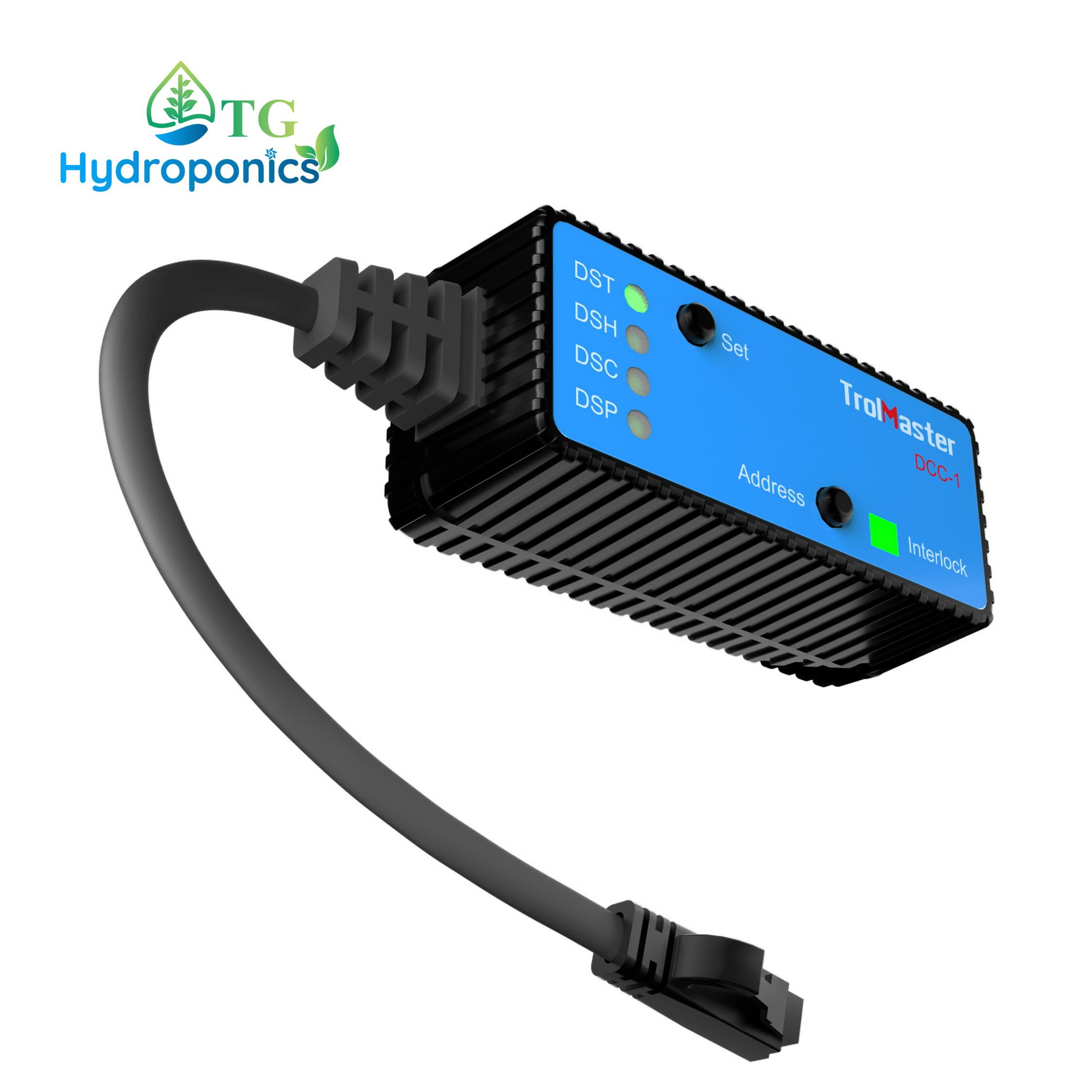

Trolmaster Hydro-X Dual Condition Adaptor DCC-1

The TrolMaster Dual Condition Adaptor (DCC-1) is a versatile accessory designed to enhance the control capabilities of the TrolMaster system by allowing a single device to be controlled based on multiple conditions. Here's a detailed overview of its features, capabilities, and usage:

Key Features:

1. Multi-Condition Control:

   • Dual Condition Management: Allows a single device to be controlled based on two different conditions, such as temperature and humidity.
   • Versatile Applications: Ideal for scenarios where multiple conditions must be monitored and managed simultaneously.

2. Interlock Function:

   • Interlock OFF (Parallel Mode): Either condition can independently activate the connected device. For example, turning on an exhaust fan if either temperature or humidity is too high.
   • Interlock ON (Series Mode): Both conditions must be met simultaneously to activate the connected device. For example, shutting off CO2 when an exhaust fan is running or shutting off lights if the temperature gets too high.

3. Compatibility:

   • Plug-In Style Modules: Designed to be used in combination with TrolMaster’s plug-in style modules (DSC-1, DSH-1/2, DST-1/2, and DSP-1).
   • Simple Connection: Connects to the plug-in module using the built-in RJ12 cable.

Applications:

• Environmental Control: Manage devices such as exhaust fans, CO2 systems, and lighting based on multiple environmental conditions.
• Grow Rooms/Greenhouses: Optimize growing conditions by automating responses to temperature and humidity changes.

Usage Examples:

• Interlock OFF (Parallel Mode):

  • Turn on an exhaust fan to reduce temperature or humidity.
  • Activate an exhaust fan at night using a recycling timer or when humidity is too high.

• Interlock ON (Series Mode):

  • Shut off a CO2 device when an exhaust fan is running.
  • Turn off lights if the temperature gets too high within the area.

Package Contents:

• 1 x DCC-1 Dual Condition Adaptor: The main unit for managing dual-condition control.

Pros:

• Enhanced Control: Provides greater flexibility in managing environmental conditions.
• Versatile Functionality: Can be used in both parallel and series modes, depending on the desired control logic.
• Easy Integration: Seamlessly integrates with existing TrolMaster plug-in style modules.

Cons:

• Dependent on Plug-In Modules: Requires TrolMaster’s plug-in style modules to function.
• Installation: May require some setup and configuration to match specific use cases.

Ideal For:

• Horticulturists and Growers: Needing to manage multiple environmental conditions to optimize growing environments.
• Controlled Environments: Users looking for a flexible solution to control devices based on dual conditions.

Usage Tips:

• Installation: Follow the included instructions for connecting the DCC-1 to the appropriate plug-in module.
• Interlock Setting: Configure the interlock setting based on whether you want the device to be activated by either condition (parallel) or both conditions together (series).
• Device Connection: Ensure the device to be controlled is properly connected to the plug-in module.
