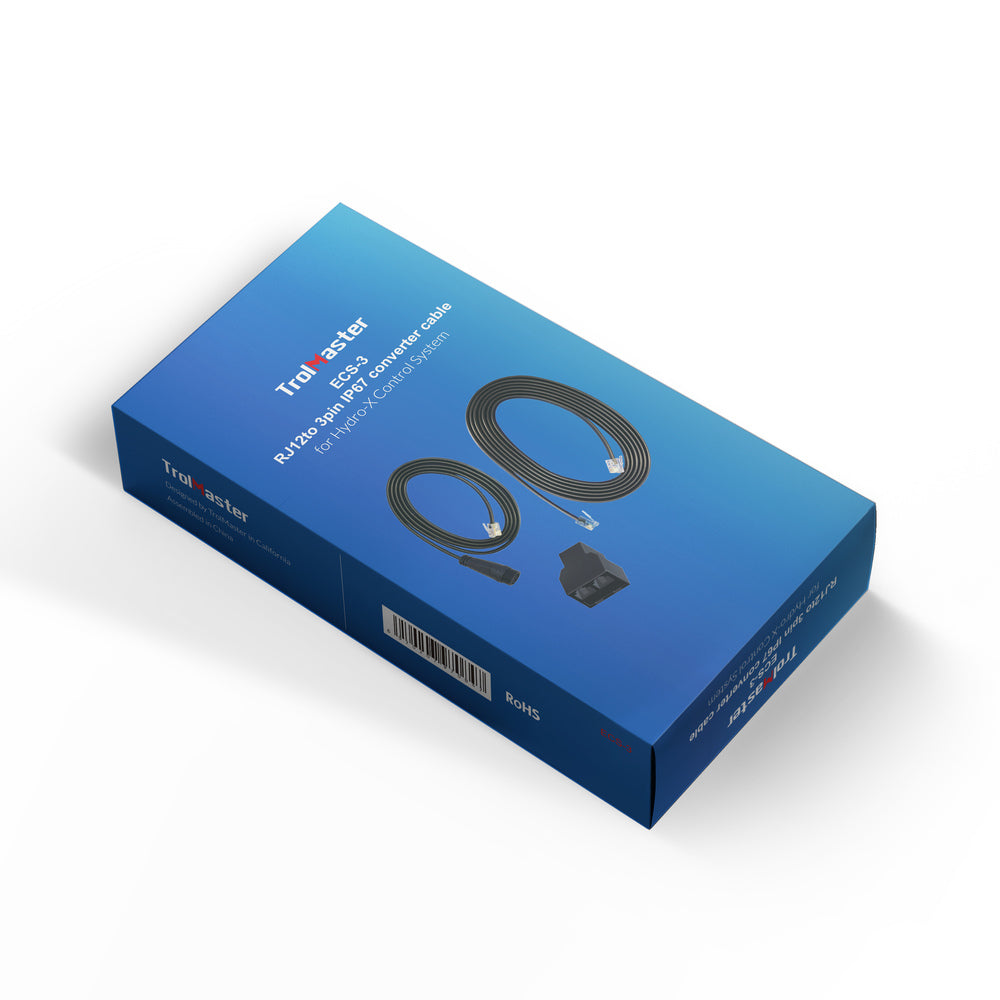

Trolmaster Hydro-X RJ12 to Threaded Waterproof 3 Pin Connector cable ECS-3

The TrolMaster Hydro-X RJ12 to Threaded Waterproof Connector Cable ECS-3 is specifically designed to connect Hydro-X controllers to Fluence brand LED fixtures that use Threaded Waterproof Connectors. This set ensures secure and water-resistant connections, essential for reliable performance in humid or wet environments. Here’s a detailed overview of the ECS-3:

Features

• Compatibility: Provides connectivity for Fluence brand LED fixtures with Threaded Waterproof Connectors.
• Waterproof Design: The threaded connectors ensure a secure and water-resistant connection.
• Complete Set: Includes all necessary cables and splitters to facilitate connections over extended distances.

Package Contents

• 1 x 16 ft RJ12 Cable: Extends the connection range from the Hydro-X controller to the desired location.
• 1 x 4 ft RJ12 to 3pin IP67 Converter Cable: Specialized cable for connecting to Fluence LED fixtures with threaded waterproof connectors.
• 1 x T-Shaped Splitter: Allows for splitting the connection to link multiple devices or fixtures.

Usage Instructions

1. Connect the RJ12 Cable: Use the 16ft RJ12 cable to extend the connection from the Hydro-X controller to your grow space or desired location.
2. Attach the Converter Cable: Connect the 4ft RJ12 to 3pin IP67 converter cable to your Fluence LED fixture using the threaded waterproof connector.
3. Utilize the T-Splitter: Insert the T-shaped splitter if you need to connect multiple devices or fixtures at a single point.
4. Secure Connections: Ensure all connections are tight and secure to maintain proper communication between the controller and the LED fixtures.

Applications

• LED Lighting Control: Ideal for connecting and controlling Fluence brand LED lighting fixtures in grow operations and greenhouses.
• Modular Expansion: Suitable for expanding the connectivity of LED fixtures within the Hydro-X system.
• Flexible Configuration: Perfect for customizing the layout of your lighting control system to suit specific growing needs.

Installation Tips

• Check Compatibility: Ensure that the ECS-3 extension cables are compatible with your existing Hydro-X system and Fluence LED fixtures.
• Secure Connections: Make sure all RJ12 and threaded waterproof connections are tight and secure to avoid any connectivity issues.
• Follow Guidelines: Refer to the user manual for detailed instructions on connecting and configuring the extension cables.

Troubleshooting

• Connection Issues: Verify that all cables are properly connected if you experience any communication problems between the controller and LED fixtures.
• Cable Damage: Inspect the cables for any signs of damage that might affect connectivity and replace them if necessary.
• Proper Addressing: Ensure that all connected LED fixtures are correctly addressed and recognized by the controller.

Advantages

• Waterproof Connection: Ensures a secure and water-resistant connection, ideal for environments where moisture is a concern.
• Scalability: Easily expand the number of connected fixtures without compromising signal strength.
• Organized Setup: Maintains a clean and organized installation, reducing clutter and potential points of failure.

Package Content Recap

• 1 x 16 ft RJ12 Cable
• 1 x 4 ft RJ12 to 3pin IP67 Converter Cable
• 1 x T-shaped Splitter
