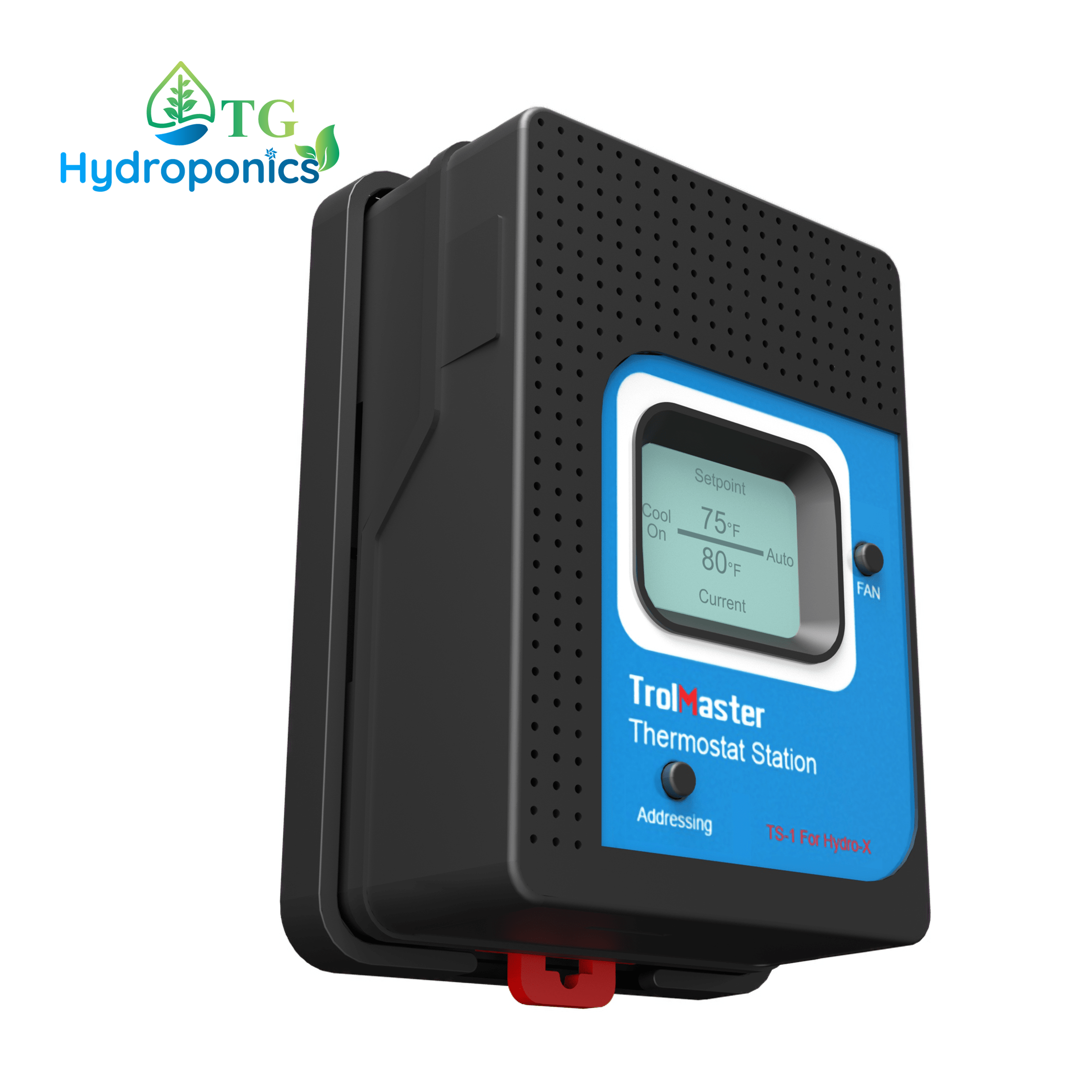

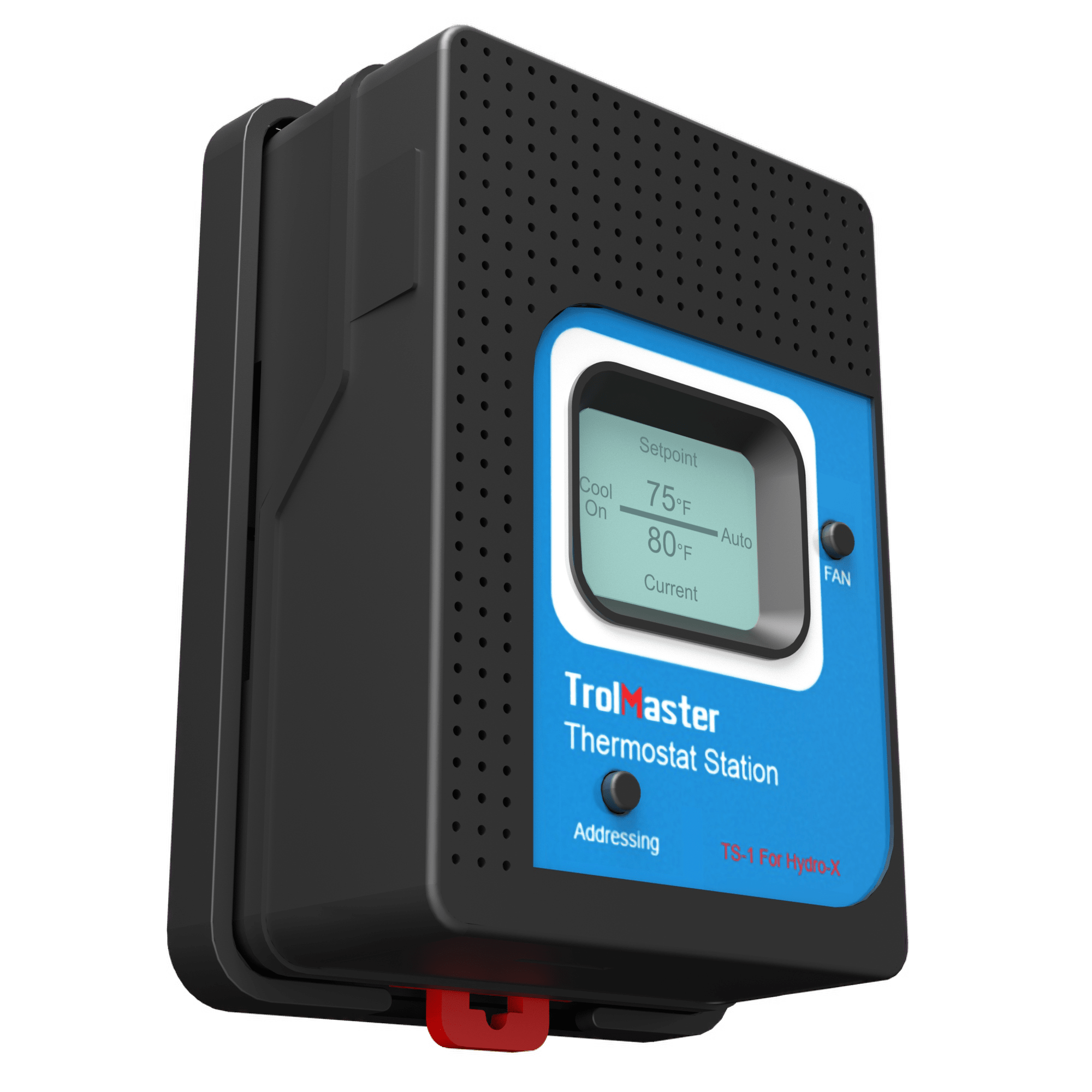

Trolmaster Hydro-X Thermostat Station TS-1

Thermostat Station TS-1 Overview

Purpose:
The TS-1 is a specialized module designed for controlling conventional cool-only HVAC systems. It is a replacement for traditional thermostats and integrates with the TrolMaster Hydro-X controller system.

Key Features:

• HVAC System Compatibility: Specifically designed for cool-only HVAC systems. It is not suitable for heating or multi-mode HVAC units.

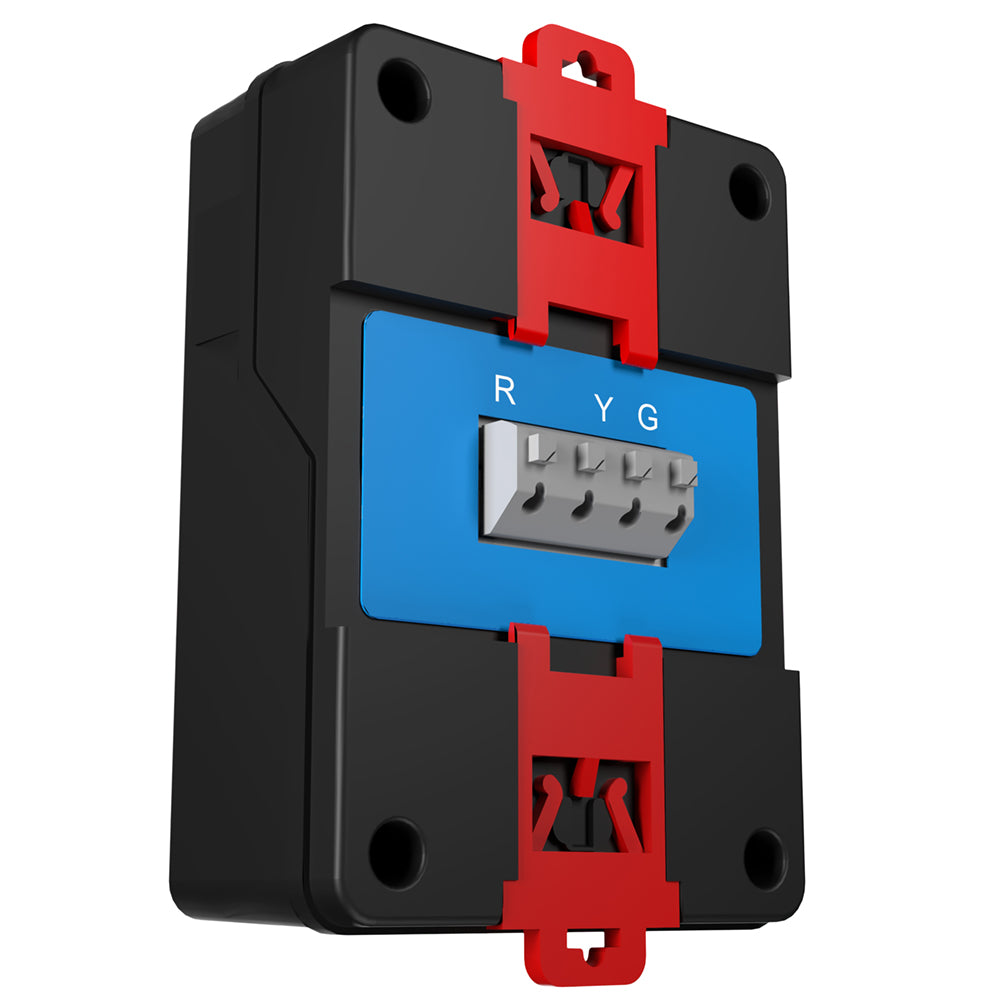

• Wiring: Uses standard low-voltage thermostat wiring, making it straightforward to install. The wiring follows conventional color codes for ease of connection.
• Programming Flexibility: Allows the Hydro-X controller to manage up to four TS-1 modules with distinct day and night temperature settings. This feature is ideal for managing multiple HVAC systems from a single Hydro-X controller.
• Firmware Updates: To update the firmware on TrolMaster controllers and modules, a Micro SD card with a capacity of 32GB or less is required.

Package Contents:

• 1 x Thermostat Station (TS-1): The main unit for interfacing with your cool-only HVAC system.
• 1 x 16ft RJ12 Cable: For connecting the TS-1 module to the Hydro-X controller.
• 1 x 4ft RJ12 Cable: A shorter cable for additional connections.
• 1 x RJ12 T-Splitter: Allows multiple devices to share a single RJ12 connection.

Installation Tips:

1. Connect Wiring: Attach the TS-1 to the HVAC system using the standard low-voltage thermostat cables. Follow the color-coded wiring for correct connections.

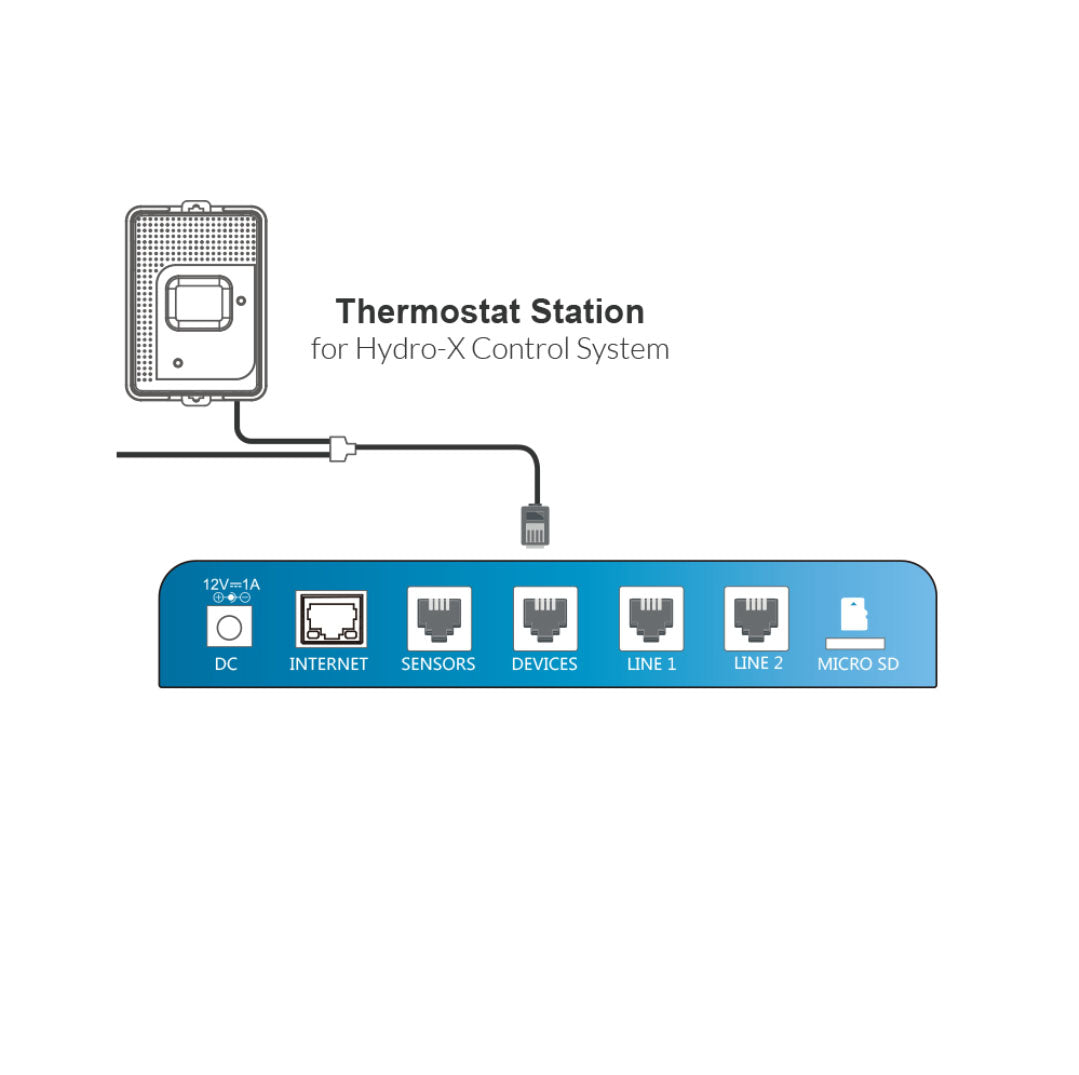

2. Connect to Hydro-X Controller: Use the provided RJ12 cables and T-Splitter to connect the TS-1 to the Hydro-X controller. The 16ft cable is typically used for the main connection, and the 4ft cable can be used for other connections as needed.
3. Program Settings: Configure day and night settings for each TS-1 module via the Hydro-X controller. Ensure that you follow the Hydro-X manual for programming instructions.
4. Firmware Updates: If needed, use a 32GB or smaller Micro SD card to update the firmware on the TS-1 and other TrolMaster devices.

Limitations:

• HVAC Compatibility: TS-1 is designed only for cool-only systems. It does not support heating or combined systems.
• Firmware Management: Firmware updates require a specific type of Micro SD card. Ensure you use a 32GB or less card for updates.

Applications:

• Commercial and Residential: Suitable for both commercial and residential cool-only HVAC systems where precise temperature control is needed.
• Greenhouses: Ideal for greenhouse environments where temperature regulation is crucial for plant health.
