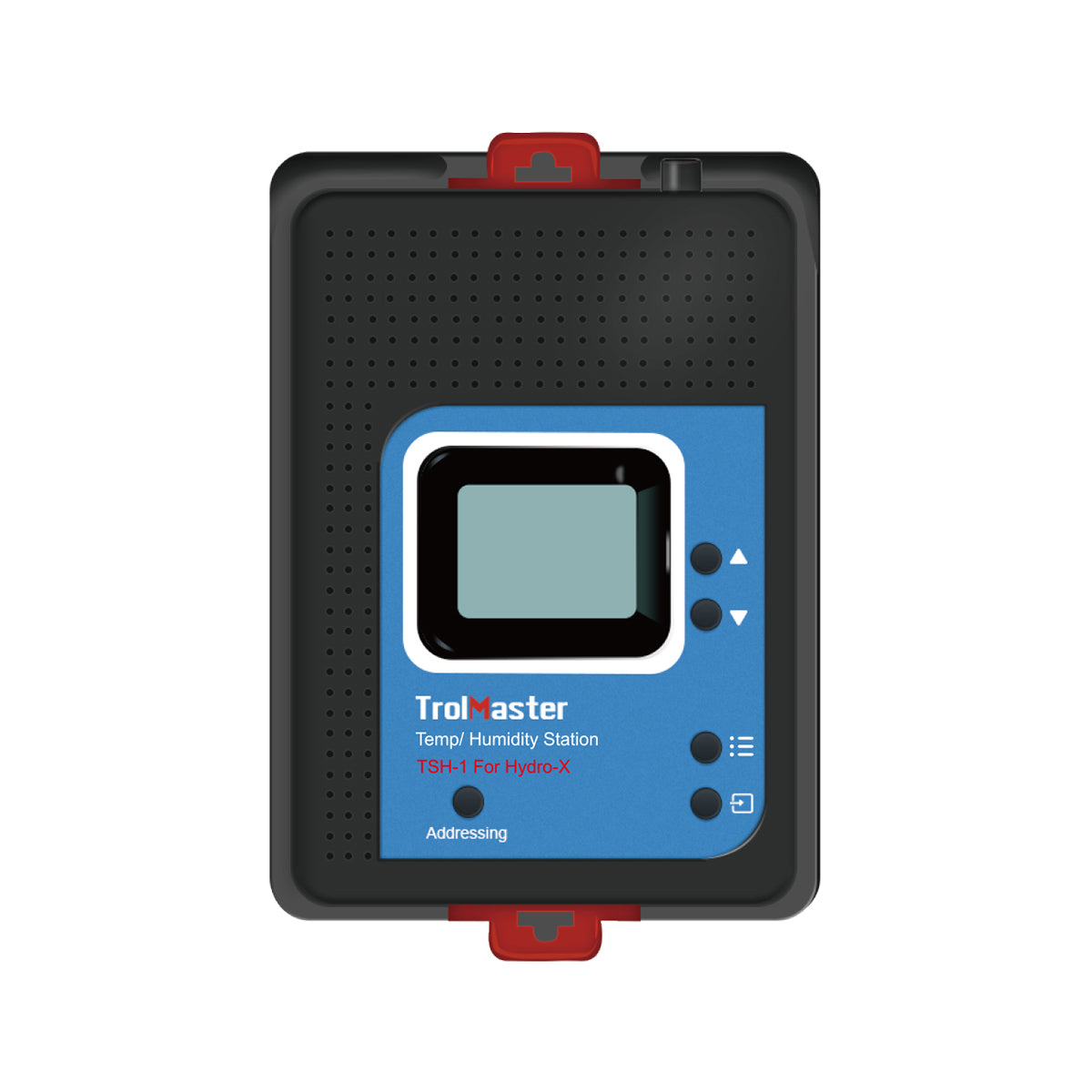

Trolmaster Hydro-X Temperature/Humidity Device Station TSH-1

The TrolMaster Hydro-X Temperature/Humidity Device Station TSH-1 is a versatile control module designed for use with the HCS-1, HCS-2, and HCS-3 controllers. This station provides a 0-10 volt analog output, making it suitable for controlling various temperature or humidity devices that require a variable input signal.

Features

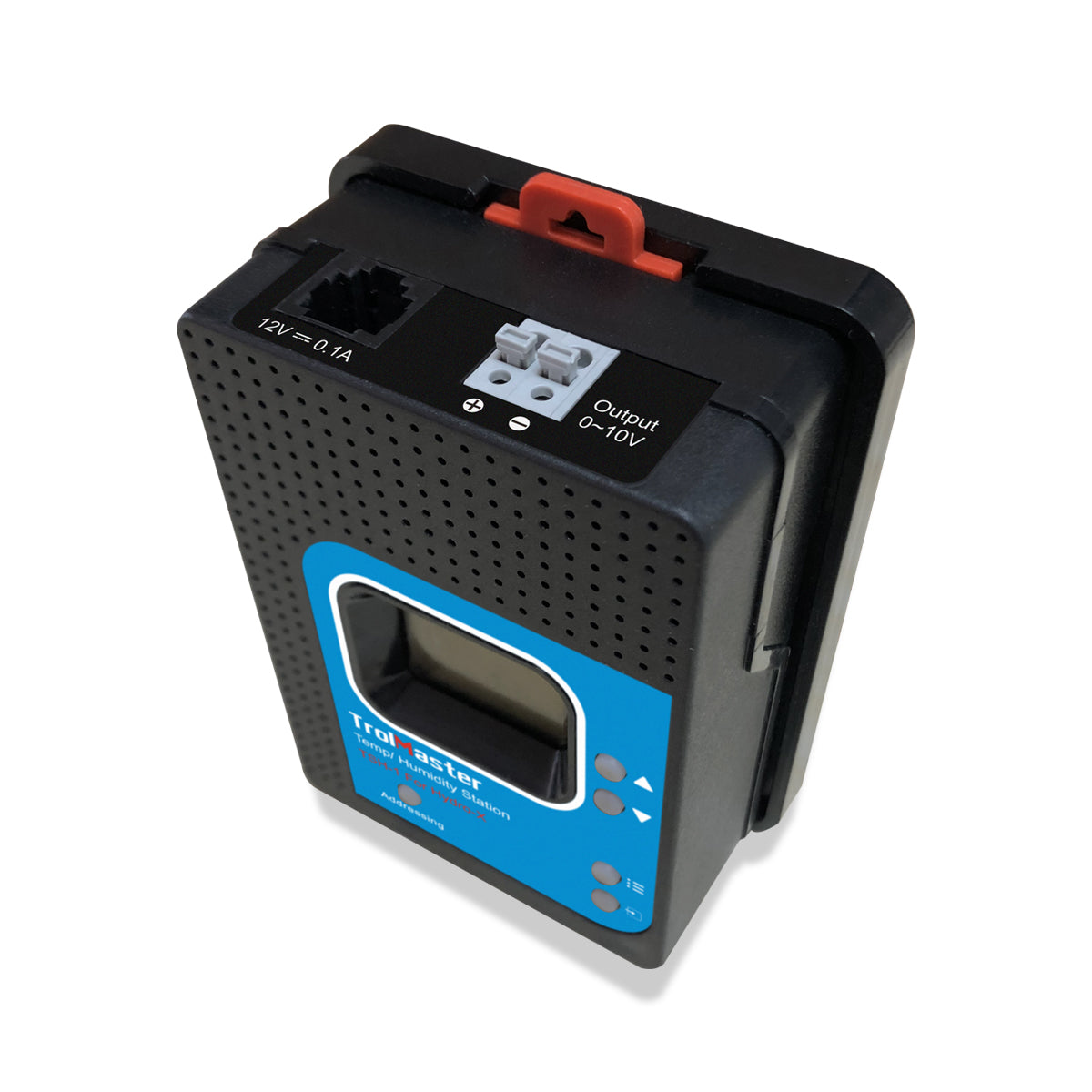

• 0-10 Volt Analog Output: Can control devices such as variable speed fans, vents, or any equipment that accepts a 0-10 volt input.
• Day/Night Settings: Includes separate idle speed settings and setpoints for day and night, accessible through the HCS controller.
• Compatibility: Works with HCS-1, HCS-2, and HCS-3 controllers for seamless integration into your grow room management system.

Package Contents

• 1 x Temperature/Humidity Station (TSH-1)
• 1 x 16ft RJ12 Cable: For connecting the station to the controller.
• 1 x 4ft RJ12 Cable: Additional cable for flexible setup.
• 1 x RJ12 T-Splitter: Allows for splitting the connection to link multiple devices or sensors.

Usage Instructions

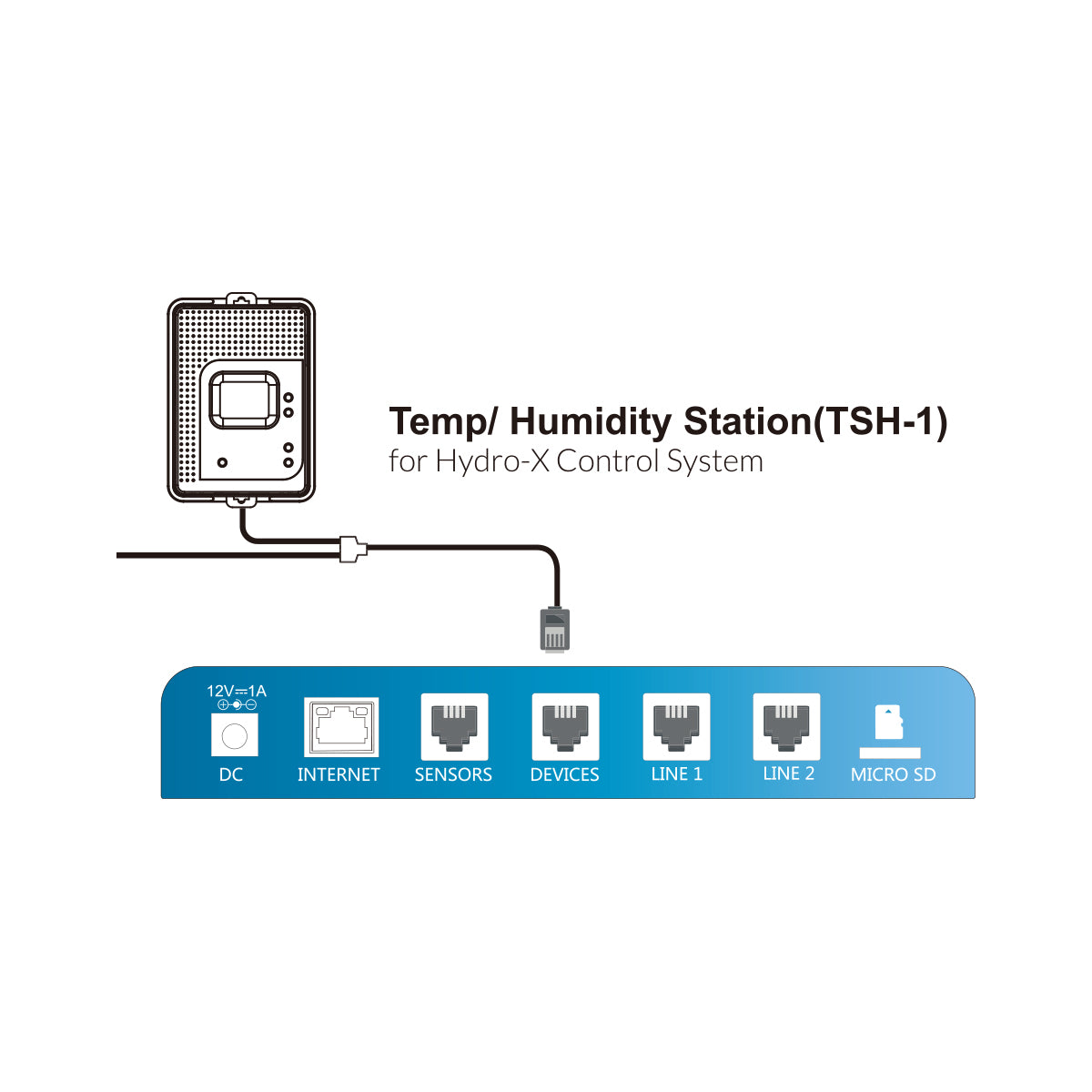

1. Connect to Hydro-X Controller: Use the provided RJ12 cables to connect the TSH-1 to the HCS controller.
2. Install Control Device: Connect your variable speed fan, vent, or other compatible device to the TSH-1.
3. Configure Settings: Set the day and night idle speed settings and setpoints through the HCS controller interface.

Applications

• Environmental Control: Ideal for managing temperature and humidity within grow rooms or greenhouses.
• Variable Speed Devices: Controls equipment like variable speed fans and vents for precise environmental management.
• Day/Night Customization: Provides different control settings for day and night to optimize plant growth conditions.

Installation Tips

• Secure Connections: Ensure all RJ12 cable connections are secure and properly linked to the controller.
• Configure Through Controller: Use the HCS controller to set the desired day/night idle speeds and setpoints.
• Check Compatibility: Ensure that the connected device is compatible with a 0-10 volt analog input.

Troubleshooting

• Connection Issues: Verify that the RJ12 cables are properly connected and the station is addressed correctly in the controller.
• Incorrect Settings: Double-check the day and night settings on the HCS controller to ensure they are correctly configured.

Advantages

• Precision Control: Offers accurate management of temperature and humidity devices for optimal environmental conditions.
• Day/Night Flexibility: Separate settings for different times of the day enhance control over the growing environment.
• Easy Integration: Seamlessly integrates with the Hydro-X system for comprehensive environmental management.

Package Content Recap

• 1 x Temperature/Humidity Station (TSH-1)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter
