Trolmaster Plus 25" Standard Controller Cabinet SCC-3

TrolMaster Plus 25" Standard Controller Cabinet SCC-3

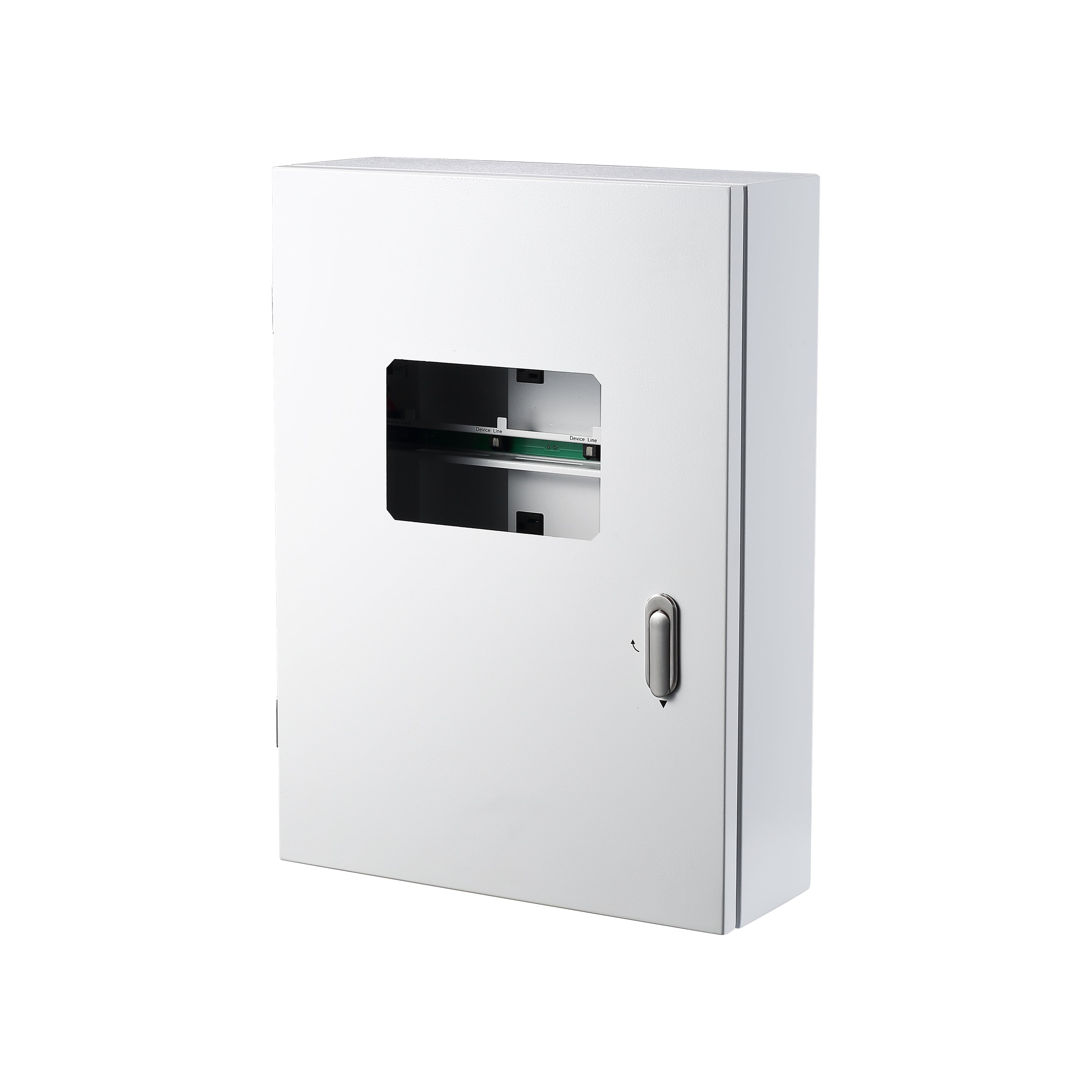

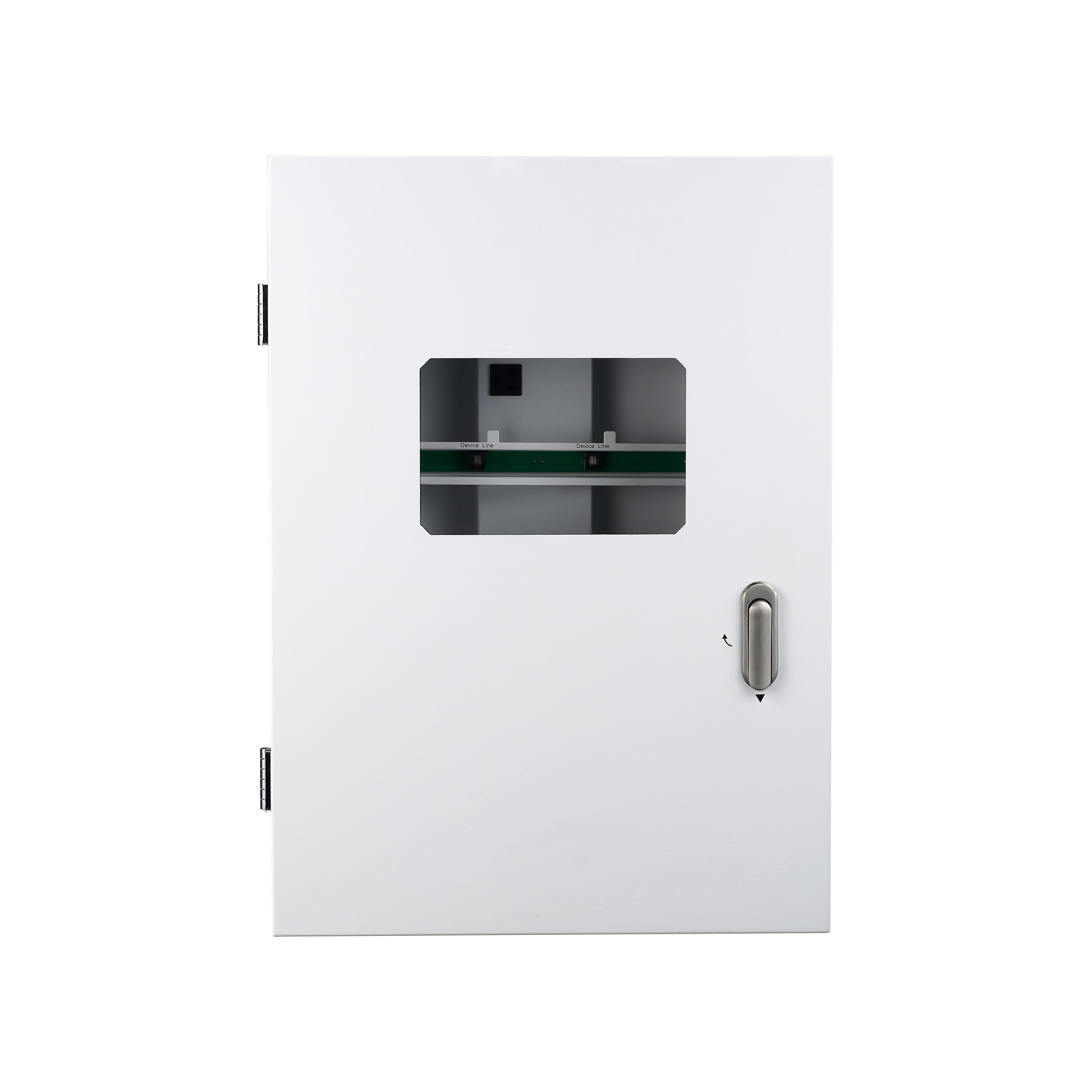

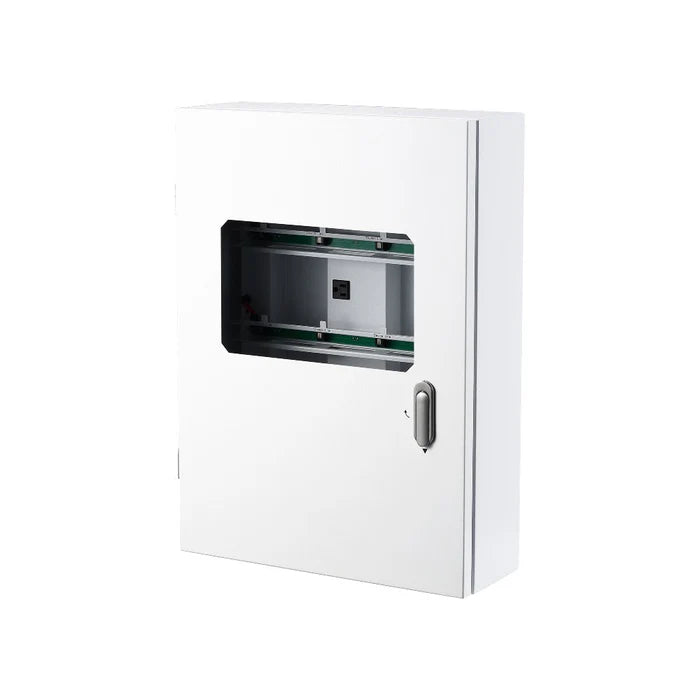

Purpose: The SCC-3 is a 25-inch modular electrical and wire management enclosure designed to house and organize the TrolMaster Hydro-X Plus HCS-3 control system. It provides a professional and safe environment for mounting various components of your control system.

Key Features:

• Modular Enclosure:

  • Design: Specifically built for the Hydro-X Plus HCS-3 controller.
  • Function: Provides a clean and organized space for installing and managing the TrolMaster control system components.

• Protection and Safety:

  • IP56 Rated: The cabinet is rated IP56, offering protection against dust and water ingress.
  • Industrial Rating: Designed to be durable and reliable for industrial applications, ensuring safety and longevity.

• Organized Installation:

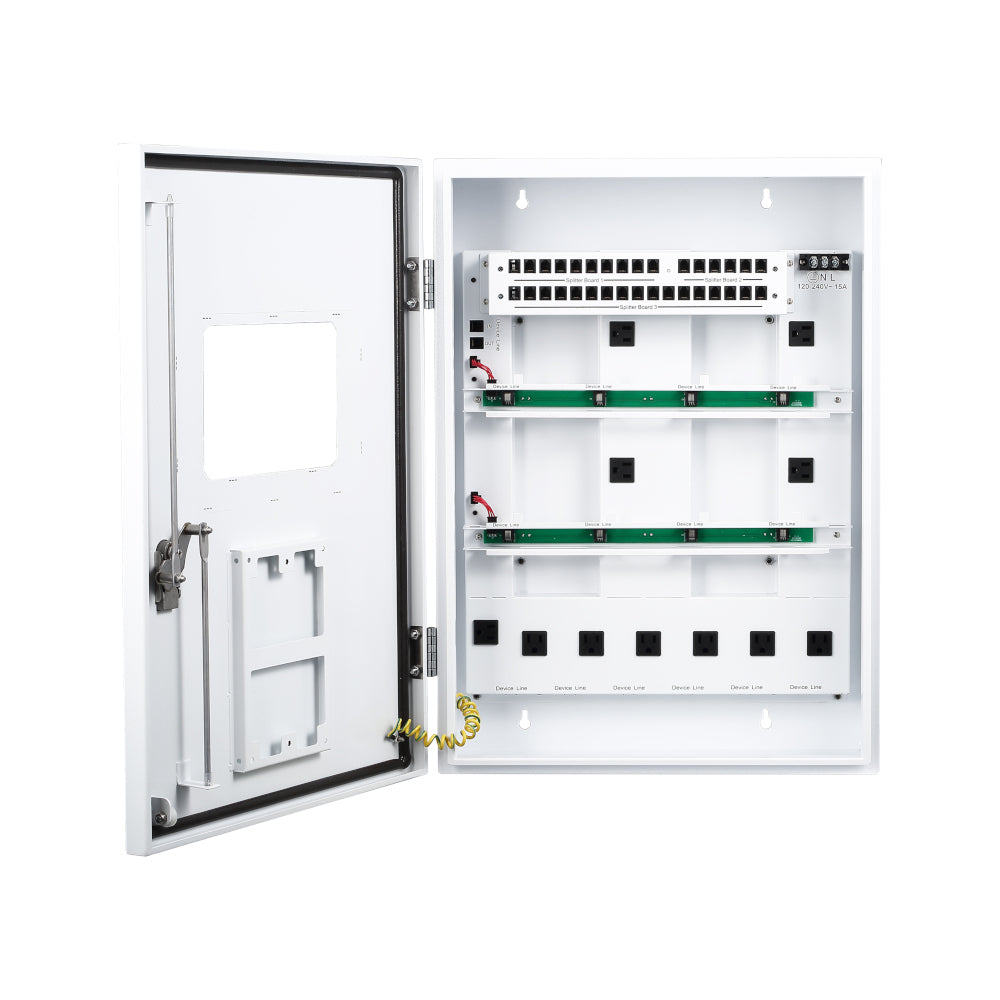

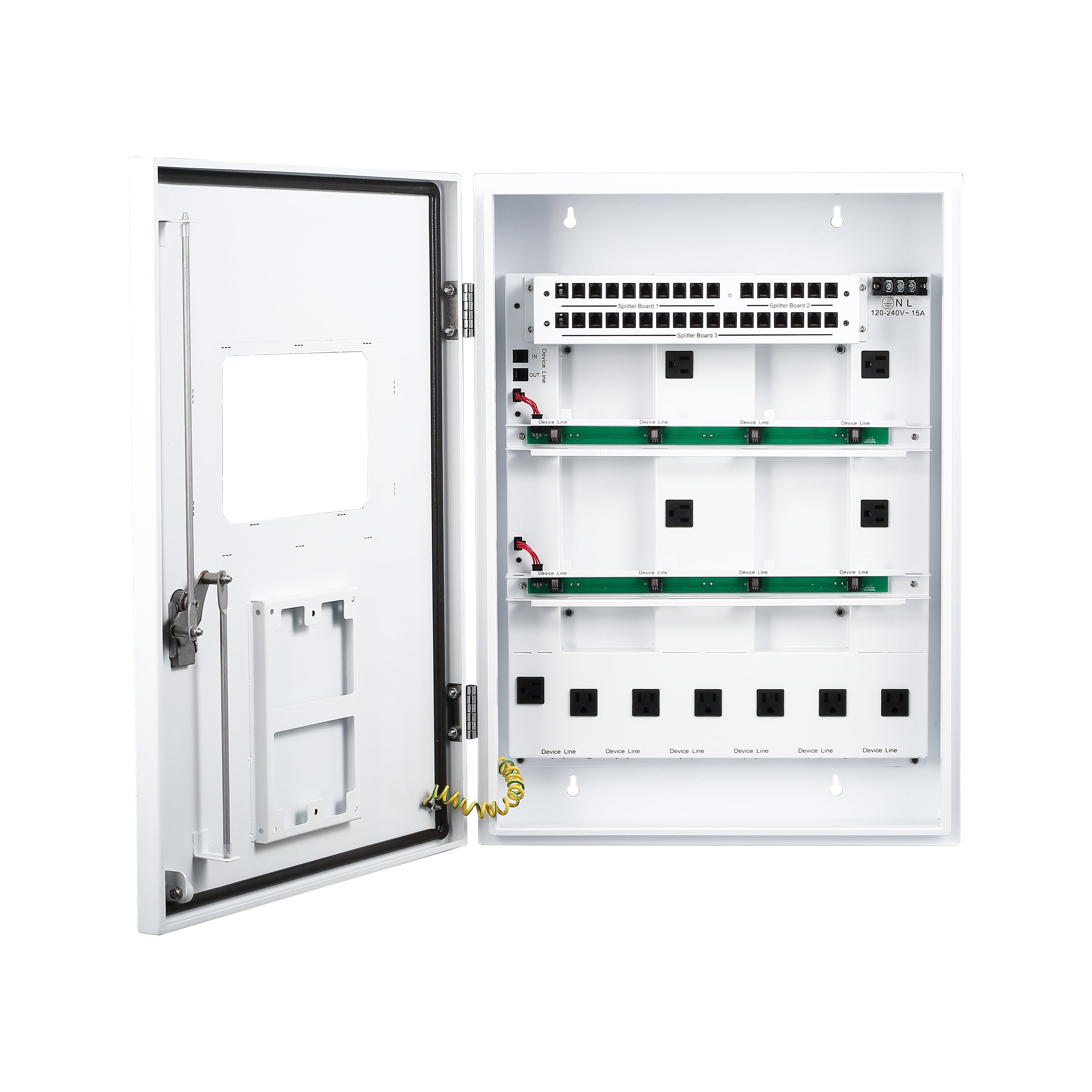

  • Device Mounting: Provides space for mounting power supplies, modules, and other low-voltage device stations.
  • Cable Management: Includes features for organized and efficient wire management, including RJ12 cables and power cables.

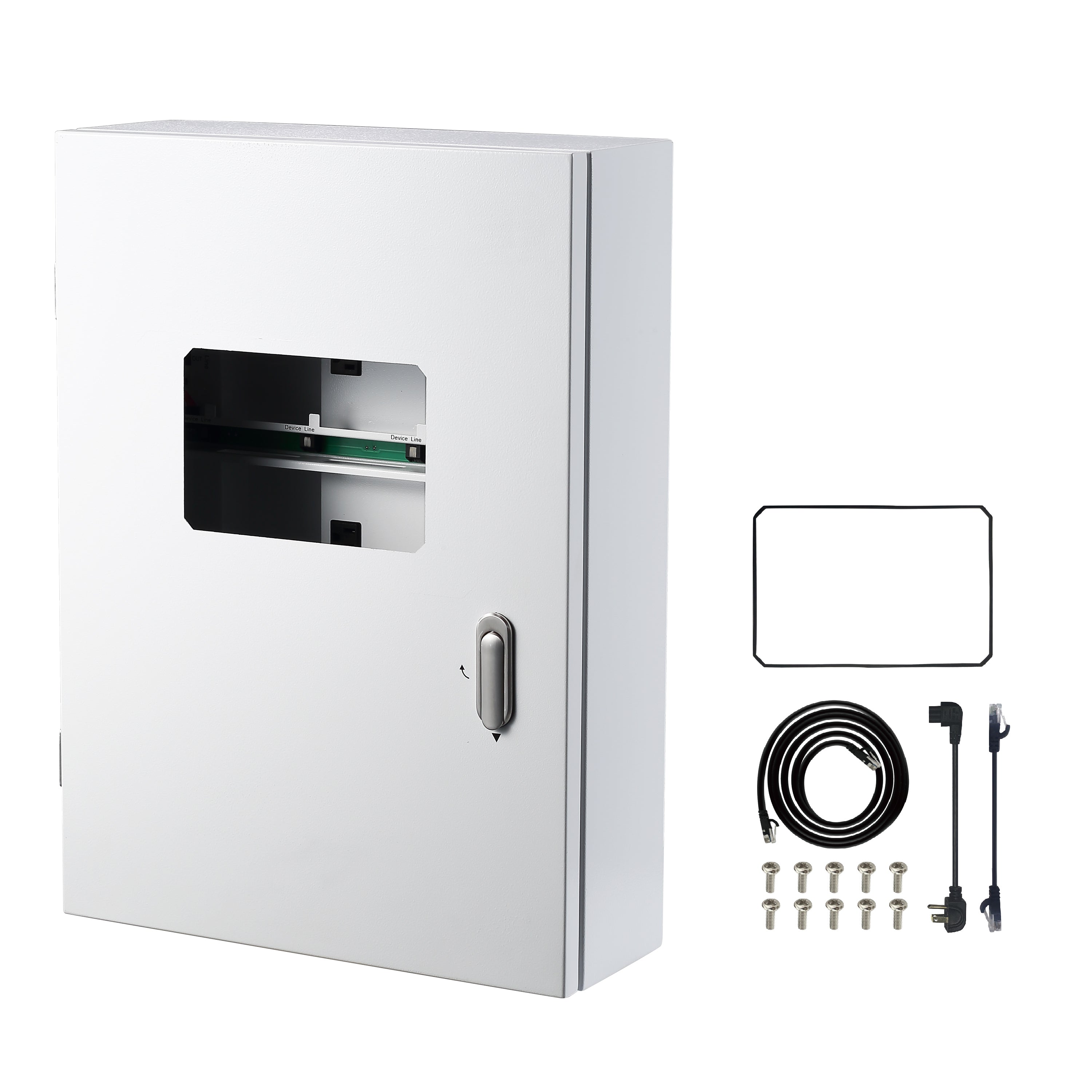

Package Contents:

• Controller Cabinet x1:

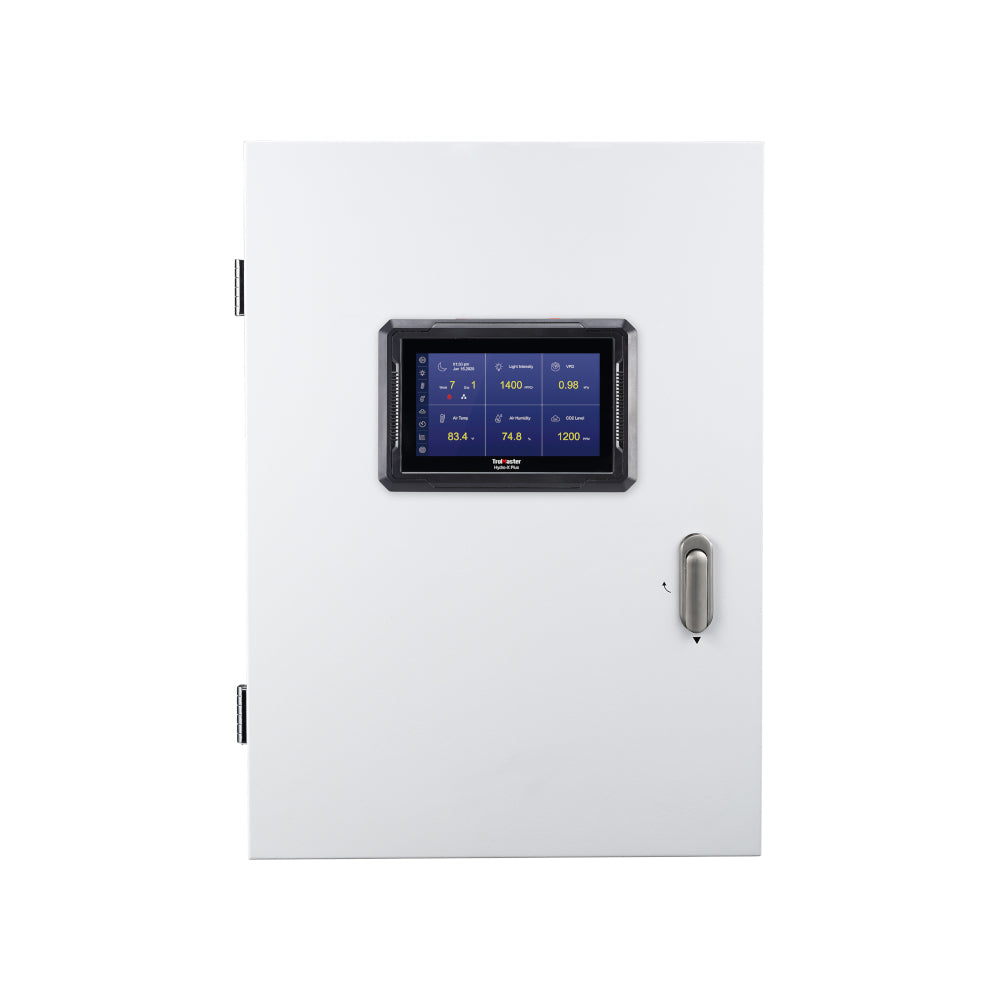

  • The main 25" enclosure for housing the Hydro-X Plus HCS-3 controller and associated components.

• Installation Manual x1:

  • Provides detailed instructions for the proper installation and setup of the SCC-3 cabinet.

• Controller Rubber Gasket x1:

  • Ensures a tight seal for the controller, enhancing the cabinet’s protection against dust and water.

• Short RJ-12 Cables x16:

  • 16 short cables for connecting various modules and components within the cabinet.

• Power Cables (for OA6 modules) x4:

  • 4 power cables for connecting OA6 modules to the power source.

• OA6-24 Screw Set x10:

  • A set of screws for mounting the OA6 modules inside the cabinet.

Installation Instructions:

1. Unpack the Cabinet:

   • Remove the cabinet and all components from the packaging.
   • Inspect for any shipping damage and verify all parts are included.

2. Mount the HCS-3 Controller:

   • Follow the installation manual to securely mount the Hydro-X Plus HCS-3 controller inside the cabinet.
   • Use the provided rubber gasket to ensure a tight and protective seal for the controller.

3. Install Modules and Power Supplies:

   • Organize and mount power supplies, modules, and other low-voltage devices inside the cabinet.
   • Use the included OA6-24 screw set for mounting OA6 modules.

4. Connect Cables:

   • Connect the short RJ-12 cables to link various modules and components.
   • Use the power cables to connect the OA6 modules to the power source.

5. Manage Cables:

   • Organize cables to ensure a neat and efficient setup.
   • Ensure that all connections are secure and properly managed to avoid interference and maintain safety.

6. Seal the Cabinet:

   • Close the cabinet doors and ensure that all seals and gaskets are properly in place to maintain the IP56 rating.

Applications:

• Hydroponic Systems: Ideal for organizing and protecting components of the Hydro-X Plus HCS-3 control system in hydroponic setups.
• Industrial Settings: Suitable for use in commercial and industrial environments where a durable, organized, and protected control system is required.
• Greenhouses: Useful for managing control systems in greenhouse environments, providing protection for sensitive equipment.

Benefits of Using SCC-3:

• Professional Appearance: Ensures that the Hydro-X Plus HCS-3 controller and associated components are installed in a professional and clean manner.
• Enhanced Protection: Provides an IP56 rated enclosure to keep the system components safe from dust, water, and other environmental factors.
• Efficient Organization: Includes features for effective cable management and component mounting, making setup and maintenance easier.

Summary

The SCC-3 25" Standard Controller Cabinet is a high-quality, industrial-rated enclosure for the TrolMaster Hydro-X Plus HCS-3 control system. It offers robust protection, organized mounting solutions, and efficient cable management for a professional and secure installation.
