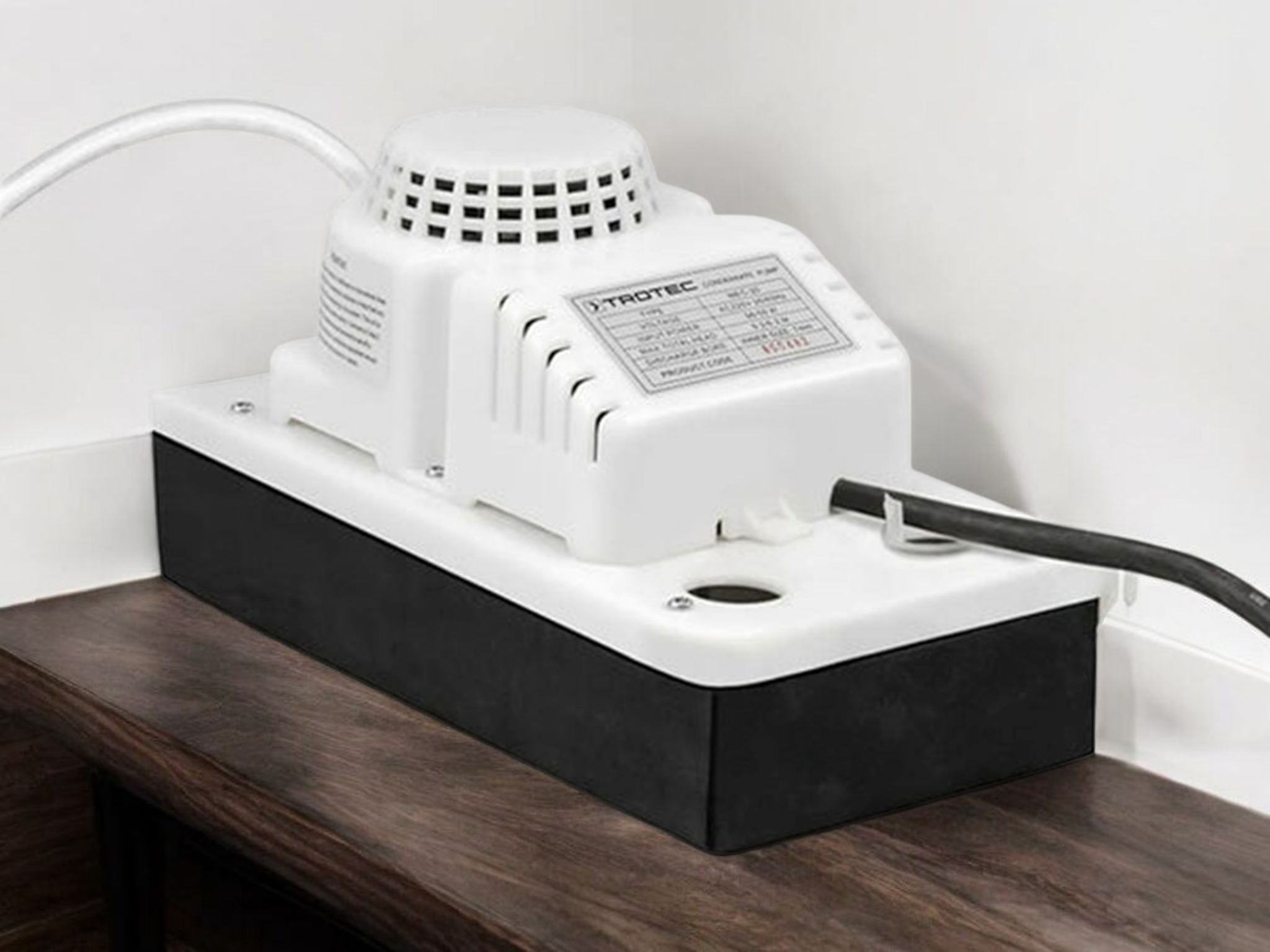

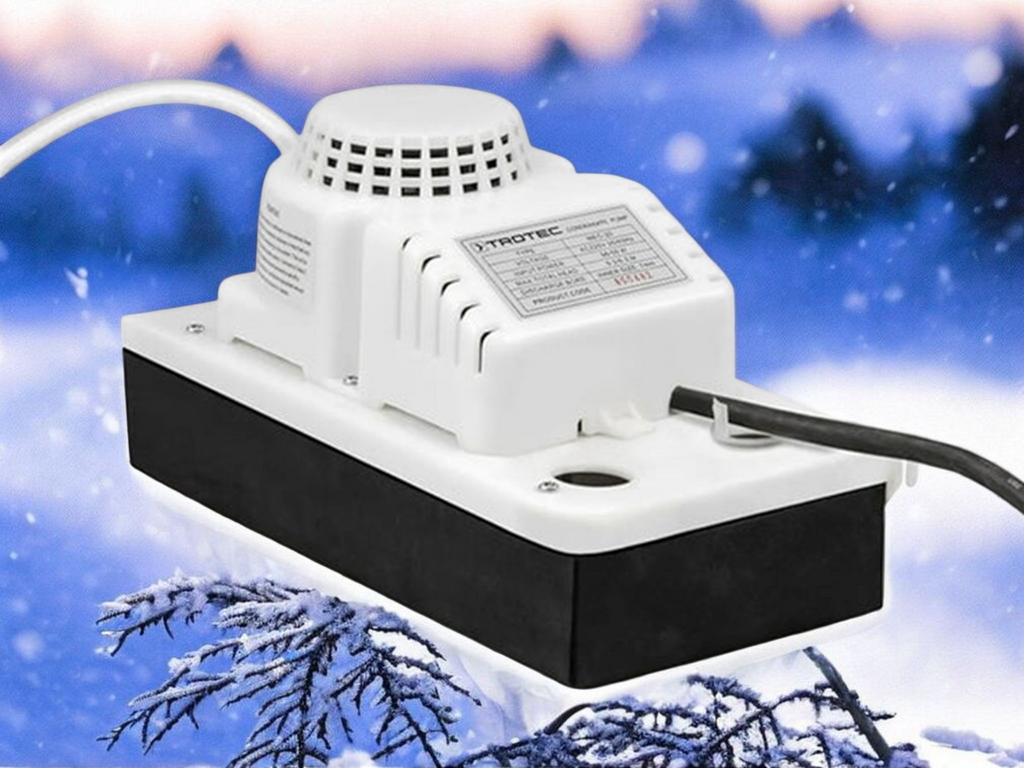

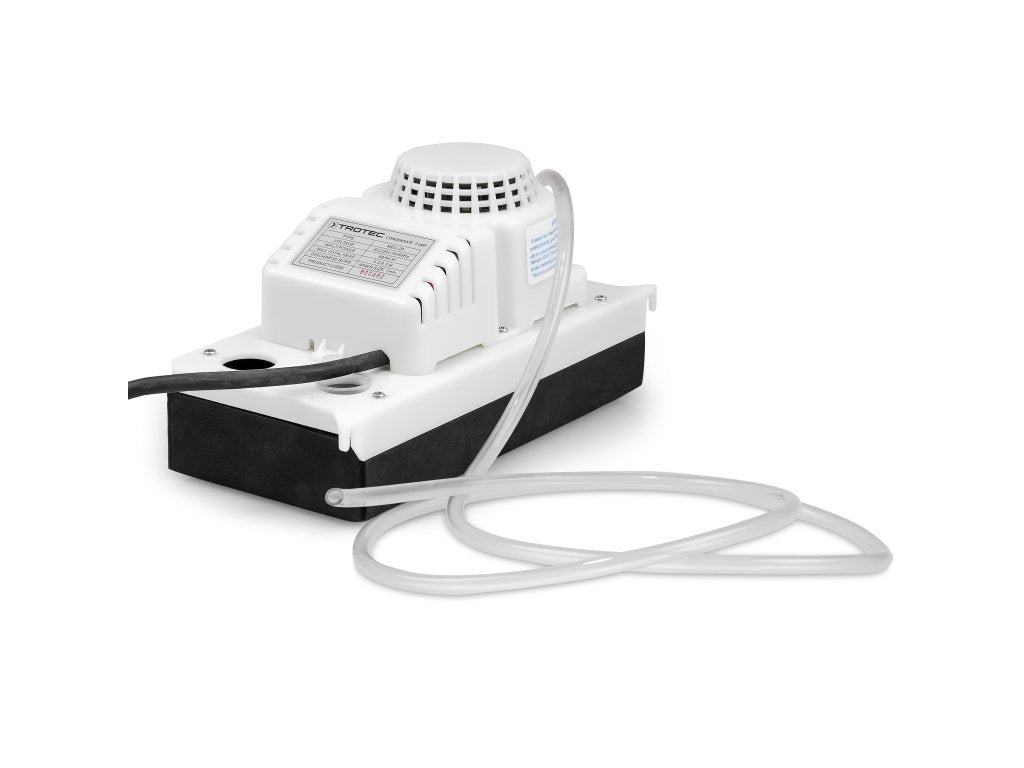

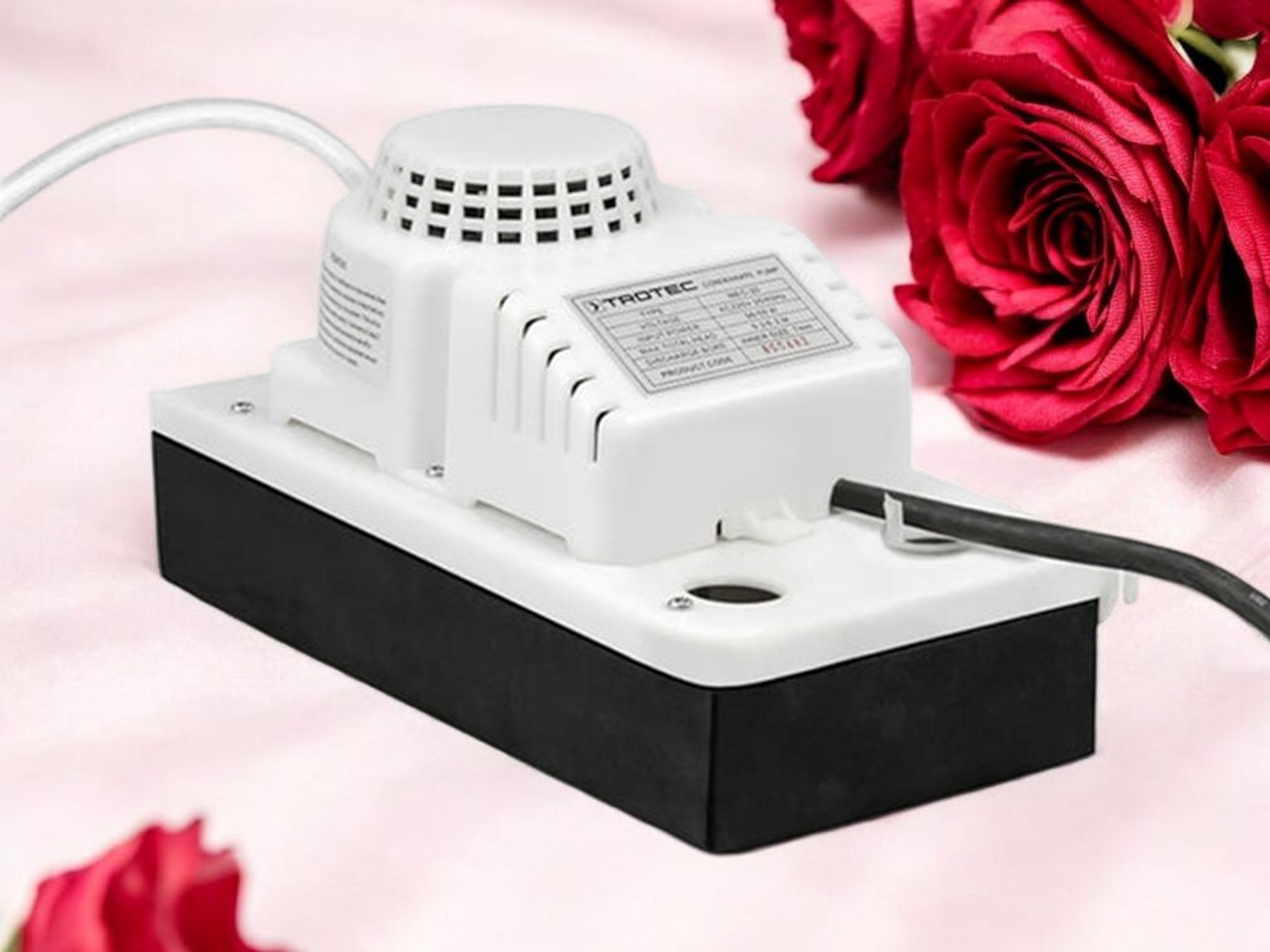

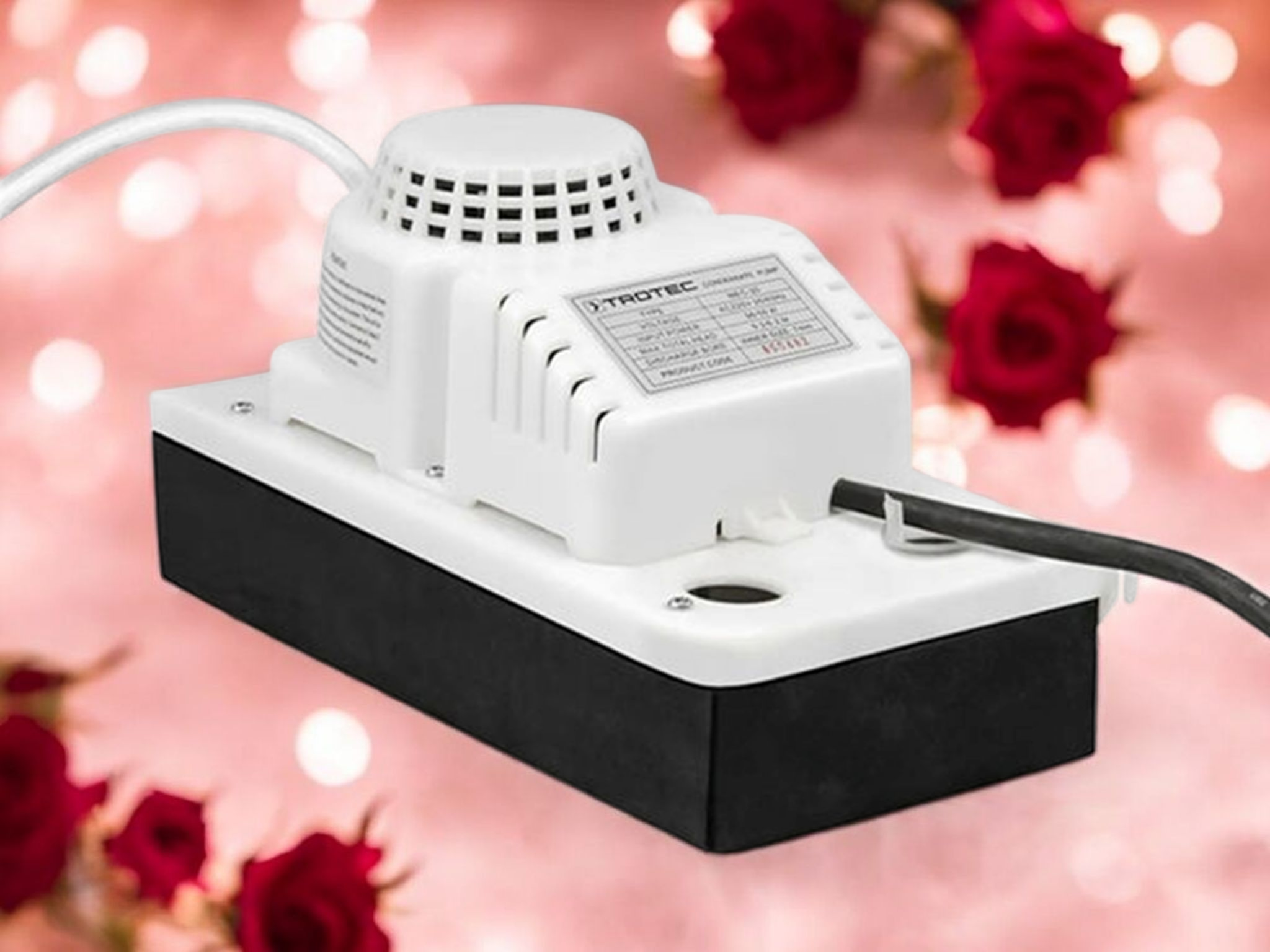

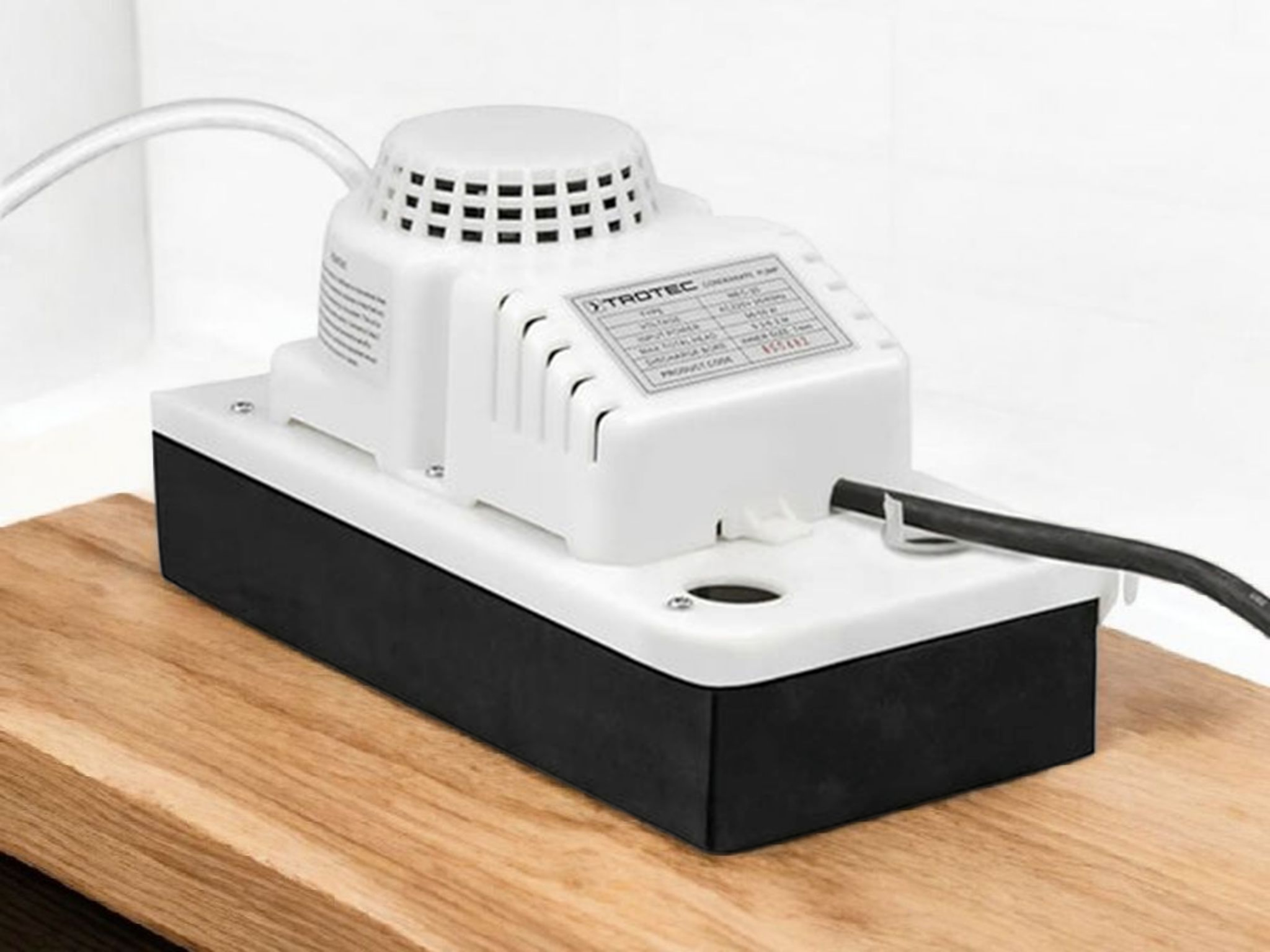

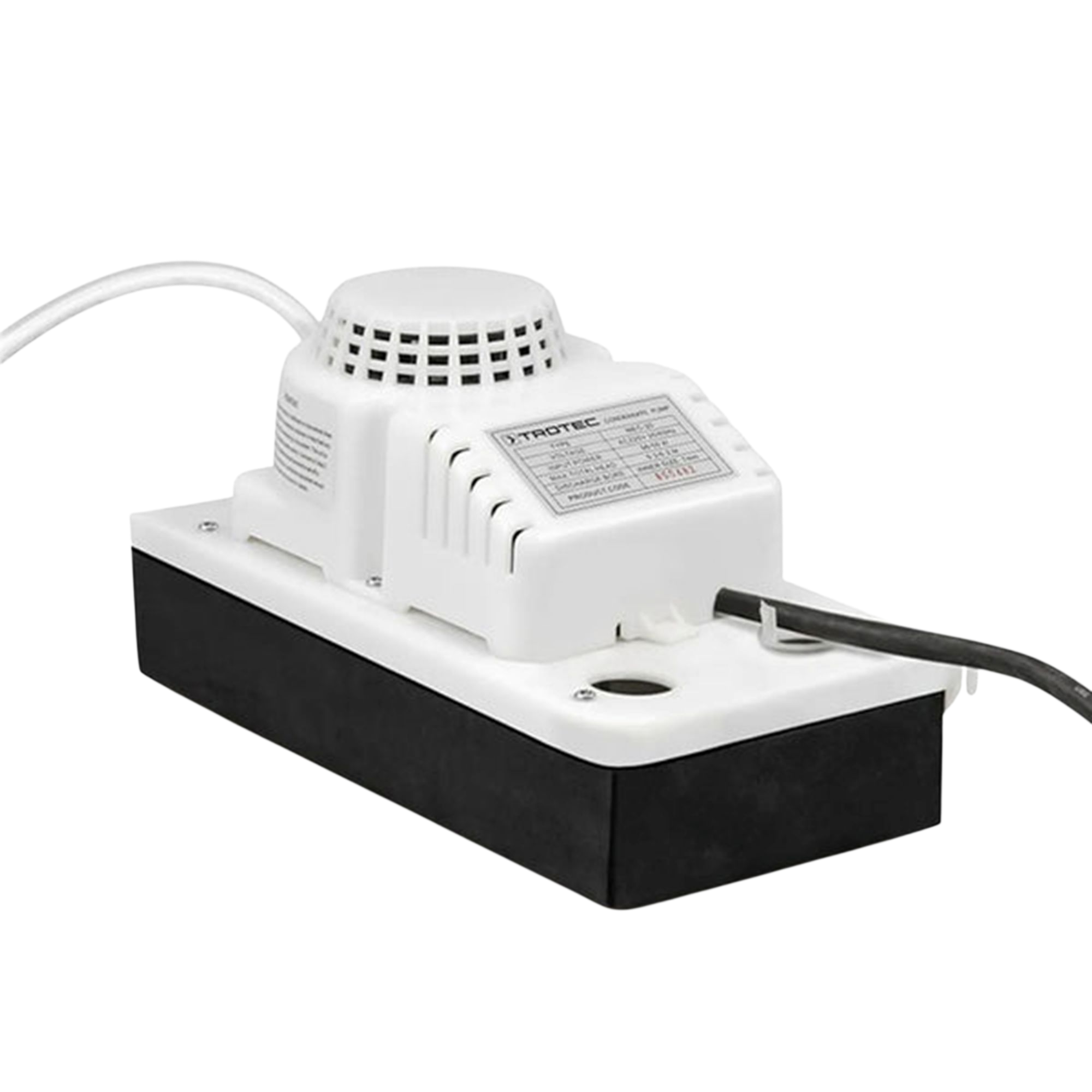

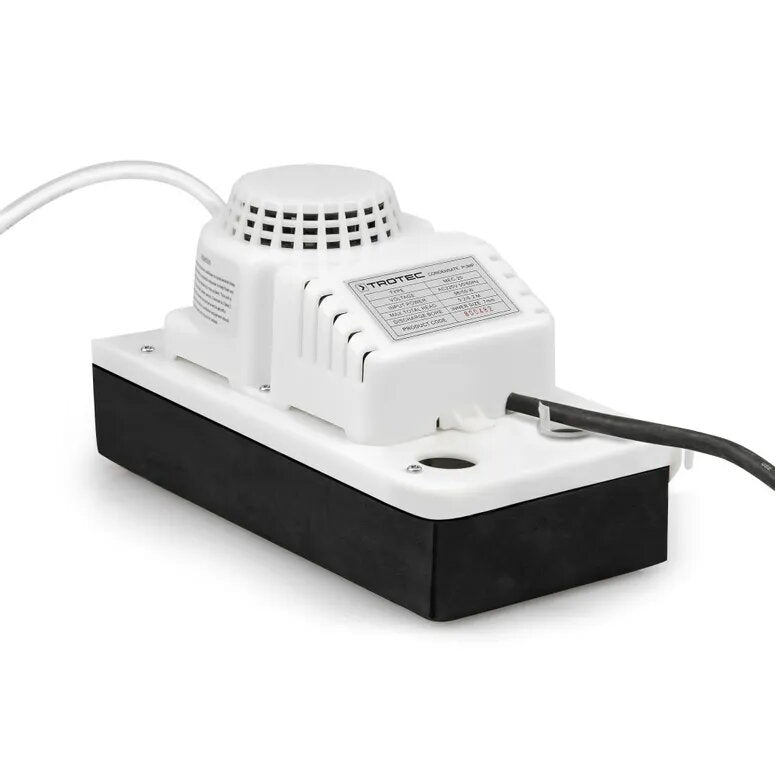

Condensate Pump External
Condensate pump for the following Trotec ECO and TTK-S commercial series dehumidifiers:
- TTK 140 S model year 2013
- TTK 170 S model year 2013
- TTK 350 S model year 2013
- TTK 650 S model year 2013
Optimally suited for longer, unattended dry maintenance applications.
After the condensate pump has been properly connected to the unit and the drying process has started, the pump’s collection tray slowly fills with water. When a certain water level is reached, the pump starts automatically and discharges the water through the connected hose. The pump then switches off again until the level in the collection tray rises again.
The auto shutdown of the dehumidifier is suspended as soon as a condensate pump is used to pump out the extracted liquid.
Technical data:
- Voltage: 220 V (50/60 Hz)
- Maximum pumping height: 3.90 m
- Water hose inlet: 25 mm (maximum diameter outside)
- Water hose outlet: 5 mm (diameter inside)
- Dimensions: 280 mm x 125 mm x 140 mm
- Flow rate: 90 l/h at 3m head
